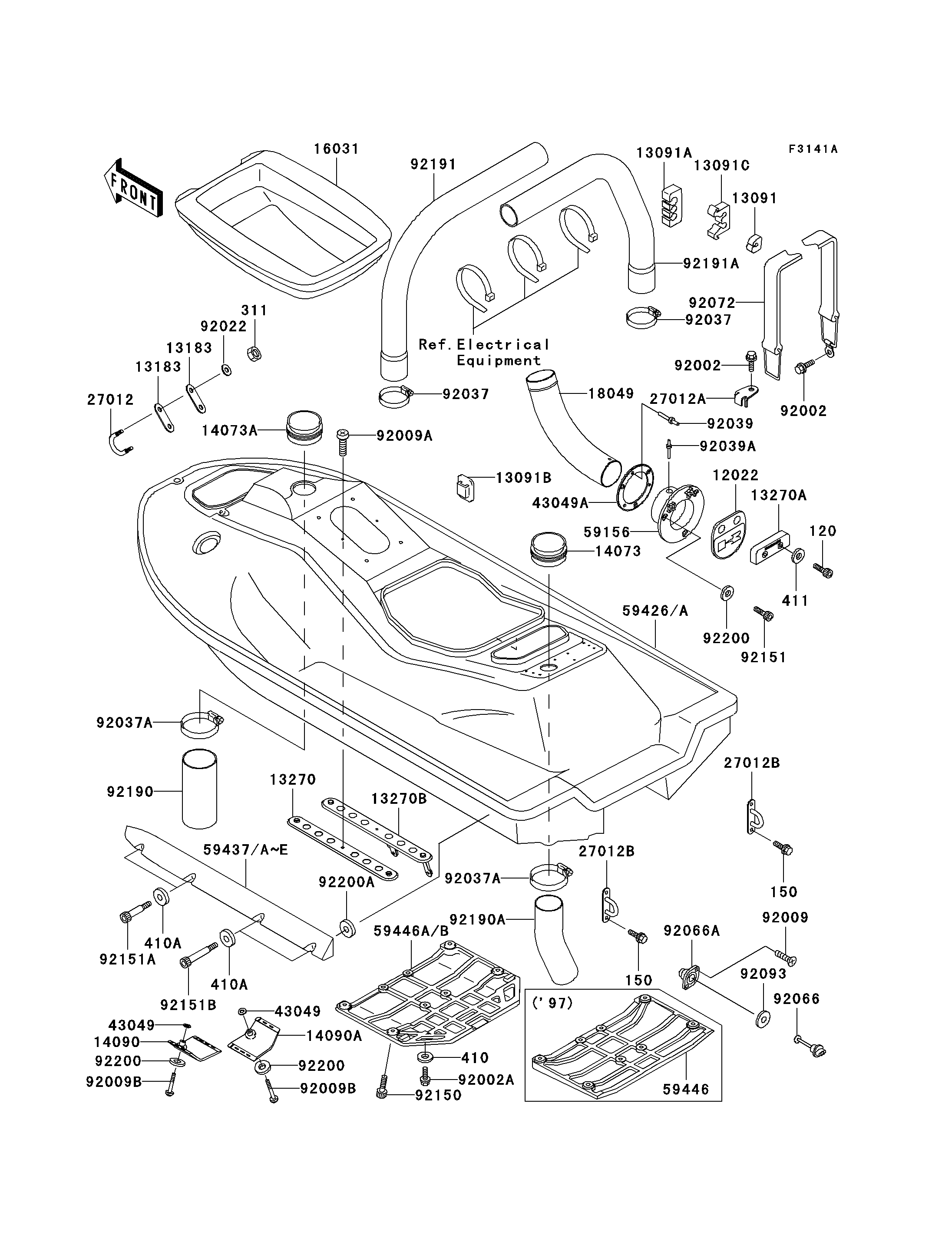

1999 1100 ZXi - Hull(JH1100-A2-A5)

DOWNLOAD PDF
SELECT A NEW PART
12022
12022
13091
13091
13091A
13091A
13091B
13091B
13091C
13091C
13183
13183
13183
13183
13270
13270
13270A
13270A
13270B
13270B
14073
14073
14073A
14073A
14090
14090
14090A
14090A
16031
16031
18049
18049
27012
27012
27012A
27012A
27012B
27012B
27012B
27012B
43049
43049
43049
43049
43049A
43049A
59156
59156
59426
59426
59437
59437
59437C
59437C
59446B
59446B
92002
92002
92002
92002
92002A
92002A
92009
92009
92009A
92009A
92009B
92009B
92009B
92009B
92022
92022
120
120
150
150
150
150
311
311
410
410
410A
410A
410A
410A
411
411
92037
92037
92037
92037
92037A
92037A
92037A
92037A
92039
92039
92039A
92039A
92066
92066
92066A
92066A
92072
92072
92093
92093
92150
92150
92151
92151
92151A
92151A
92151B
92151B
92190
92190
92190A
92190A
92191
92191
92191A
92191A
92200
92200
92200
92200
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-REED 12022 12022-3706 1
HOLDER 13091 13091-3712 3
HOLDER,TUBE 13091A 13091-3758 3
HOLDER,BAND 13091B 13091-3764 8
HOLDER,FILTER 13091C 13091-3795 1
PLATE 13183 13183-3809 2
PLATE,HANDLE POLE BRACKET 13270 13270-3776 1
PLATE 13270A 13270-3785 1
PLATE,HANDLE POLE BRACKET 13270B 13270-3844 1
DUCT,AIR INTAKE 14073 14073-3750 1
DUCT,AIR INTAKE 14073A 14073-3762 1
COVER,RAM,LH 14090 14090-3787 1
COVER,RAM,RH 14090A 14090-3788 1
FLOAT,TANK 16031 16031-3837 1
PIPE-EXHAUST 18049 18049-3755 1
HOOK 27012 27012-3776 1
HOOK,WATER MUFFLER 27012A 27012-3777 2
HOOK,REAR 27012B 27012-3782 2
PACKING 43049 43049-3710 2
PACKING 43049A 43049-3711 1
PIPE-TAIL 59156 59156-3714 1
HULL-COMP,S.YELLOW 59426 59426-3887-7H 1
STABILIZER,LH,D.BURGUNDY 59437 59437-3711-AQ 1
STABILIZER,RH,D.BURGUNDY 59437C 59437-3712-AQ 1
COVER-JET PUMP 59446B 59446-3745 1
BOLT,6X16 92002 92002-3728 4
BOLT,6X20 92002A 92002-3755 4
SCREW,TAPPING,4X14 92009 92009-3755 2
SCREW,5X16 92009A 92009-3789 2
SCREW,5X35 92009B 92009-3831 2
WASHER,6.5X20X1.5 92022 92022-3710 2
BOLT-SOCKET 120 120R0616 2
BOLT-WS,6X18 150 150R0618 4
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 4
WASHER-PLAIN-SMALL,8MM 410A 410S0800 8
WASHER-PLAIN,6MM 411 411S0600 2
CLAMP 92037 92037-3009 2
CLAMP 92037A 92037-541 2
RIVET,4MM 92039 92039-3703 3
RIVET,4.8MM 92039A 92039-3719 1
PLUG,RR,DRAIN 92066 92066-3744 1
PLUG,DRAIN 92066A 92066-3749 1
BAND,WATER MUFFLER 92072 92072-3781 2
SEAL 92093 92093-3720 1
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,SOCKET,5X25 92151 92151-3709 3
BOLT,SOCKET,6X40 92151A 92151-3719 4
BOLT,SOCKET,6X52 92151B 92151-3720 4
TUBE 92190 92190-3962 1
TUBE 92190A 92190-3963 1
TUBE,LH 92191 92191-3775 1
TUBE,RH 92191A 92191-3797 1
WASHER 92200 92200-3748 5
WASHER,6X16X3 92200A 92200-3754 8
