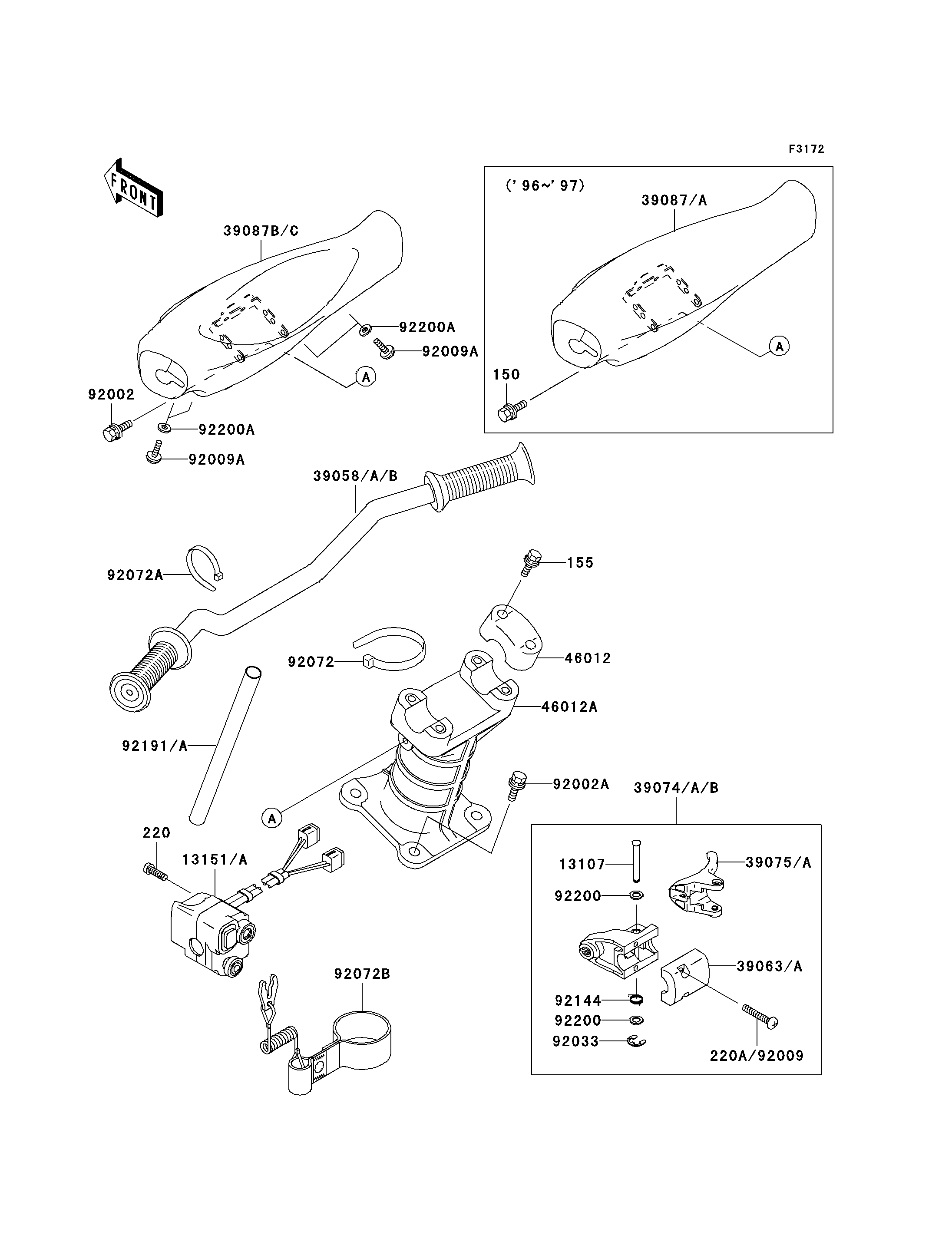

1999 1100 ZXi - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
155
220
13107
13151A
39058B
39063A
39074A
39075A
39087C
46012
46012A
92002
92002A
92009
92009A
92009A
92033
92072
92072A
92072B
92144
92191A
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-WSP-SMALL,8X35 155 155R0835 4
SCREW-PAN-CROS,5X30 220 220R0530 3
SHAFT 13107 13107-3740 1
SWITCH-COMP,STOP&START&TRIM 13151A 13151-3737 1
HANDLE-COMP,F.BLACK 39058B 39058-3722-6Z 1
HOUSING-CONTROL 39063A 39063-3722 1
LEVER-ASSY-THROTTLE 39074A 39074-3719 1
LEVER-THROTTLE 39075A 39075-3714 1
PAD-HANDLE,BLACK 39087C 39087-3726-MA 1
HOLDER-HANDLE,UPP 46012 46012-3720 2
HOLDER-HANDLE,LWR 46012A 46012-3724 1
BOLT,6X12 92002 92002-3763 2
BOLT,8X25 92002A 92002-3774 4
SCREW,6X30 92009 92009-3837 2
SCREW,4X12 92009A 92009-3843 4
RING-SNAP 92033 92033-3723 1
BAND,L=292.1 92072 92072-3509 1
BAND,L=201 92072A 92072-3778 1
BAND,TETHER SWITCH 92072B 92072-3784 1
SPRING 92144 92144-3749 1
TUBE,22X24X165 92191A 92191-3861 1
WASHER 92200 92200-3738 2
WASHER,4.3X9.7X0.8 92200A 92200-3764 4
