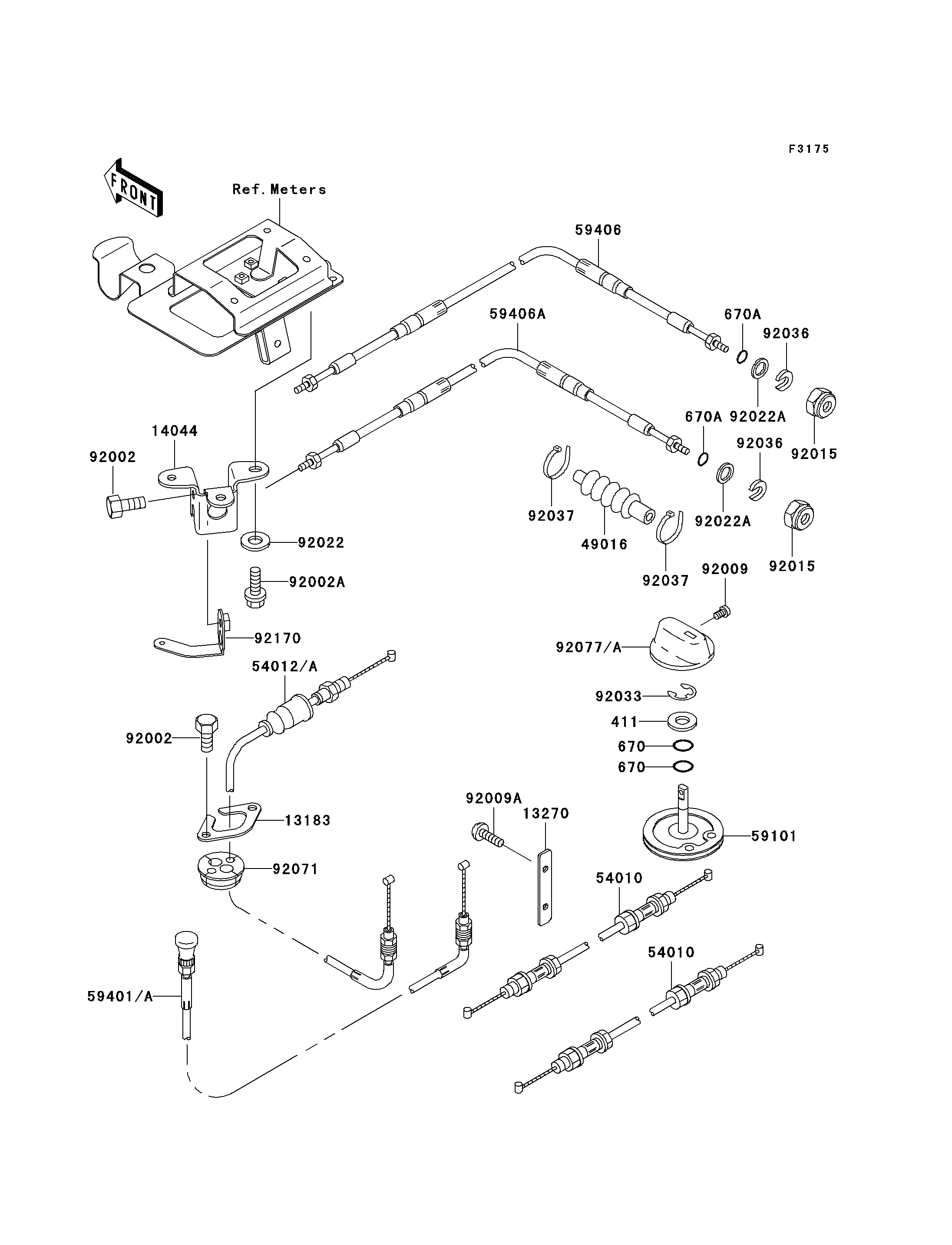

1999 1100 ZXi - Cables

DOWNLOAD PDF
SELECT A NEW PART
411
670
670
670A
670A
13183
13270
14044
49016
54010
54010
54012A
59101
59401A
59406
59406A
92002
92002
92002A
92009
92009A
92015
92015
92022
92022A
92022A
92033
92036
92036
92037
92037
92071
92077A
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN,8MM 411 411S0800 1
O RING,8MM 670 670B1508 2
O RING,11MM 670A 670B2011 2
PLATE 13183 13183-3810 1
PLATE,FUEL TAP 13270 13270-3798 1
HOLDER-CABLE,STEERING 14044 14044-3730 1
COVER-SEAL,TILT CABLE 49016 49016-3702 1
CABLE,FUEL TAP 54010 54010-3710 2
CABLE-THROTTLE 54012A 54012-3758 1
REEL,SHIFT CABLE 59101 59101-3709 1
CABLE-CHOKE 59401A 59401-3717 1
CABLE-STRG 59406 59406-3757 1
CABLE-STRG,TILT 59406A 59406-3759 1
BOLT,6X16 92002 92002-3728 3
BOLT,6X20 92002A 92002-3755 3
SCREW,4X8 92009 92009-3729 1
SCREW,5X16 92009A 92009-3789 2
NUT,20MM 92015 92015-526 2
WASHER,6.5X20X1.5 92022 92022-3710 3
WASHER 92022A 92022-535 2
RING-SNAP,7MM 92033 92033-3704 1
RING-SNAP 92036 92036-501 2
CLAMP 92037 92037-1173 2
GROMMET,HARNESS 92071 92071-3790 1
KNOB,FUEL TAP 92077A 92077-3727 1
CLAMP,STEERING CABLE 92170 92170-3744 1
