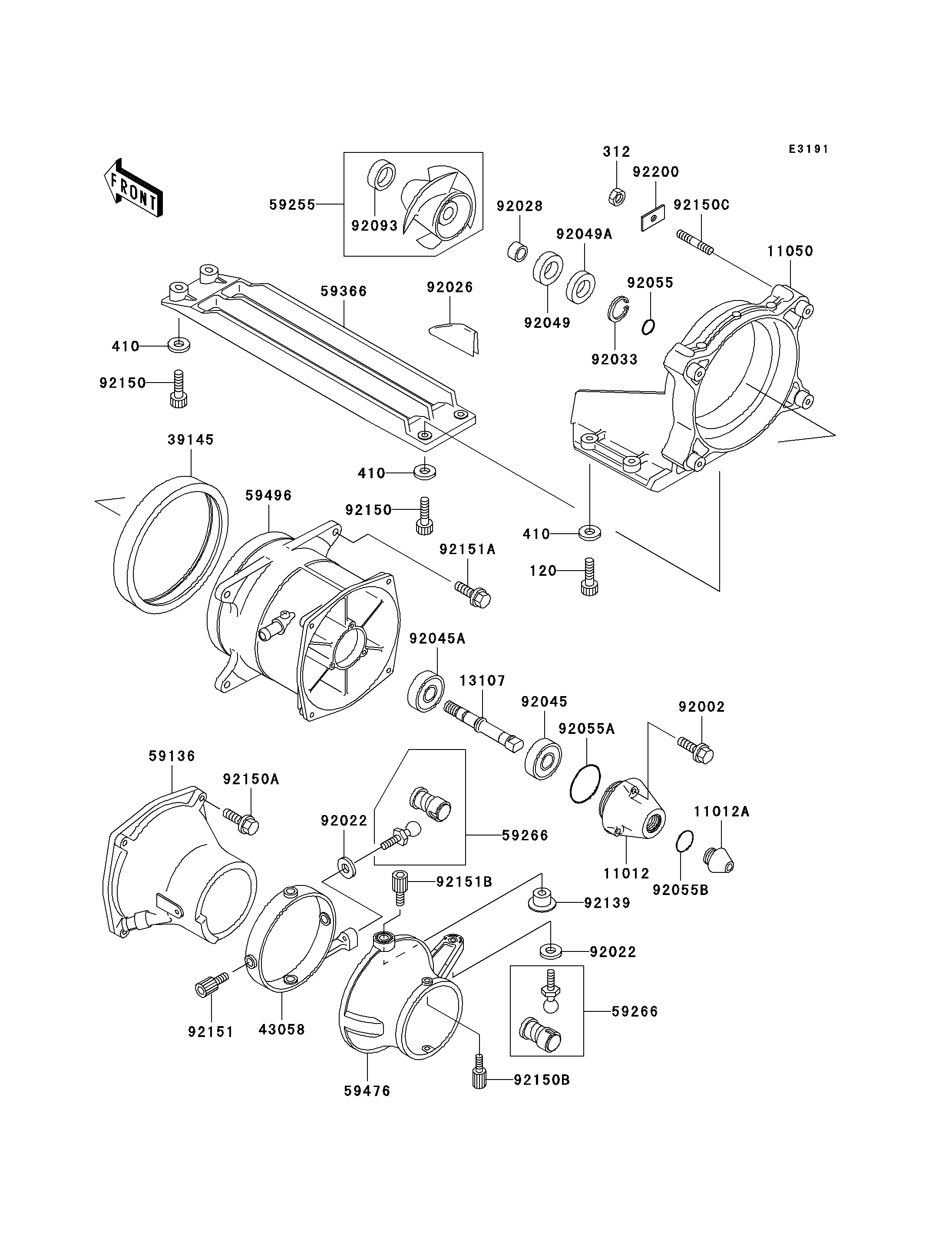

2001 1100 Zxi - Jet Pump

DOWNLOAD PDF
SELECT A NEW PART
120
312
410
410
410
11012
11012A
11050
13107
39145
43058
59136
59255
59266
59266
59366
59476
59496
92002
92022
92022
92026
92028
92033
92045
92045A
92049
92049A
92055
92055A
92055B
92093
92139
92150
92150
92150A
92150B
92150C
92151
92151A
92151B
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120R0620 4
NUT-HEX,6MM 312 312R0600 2
WASHER-PLAIN-SMALL,6MM 410 410S0600 8
CAP 11012 11012-3785 1
CAP 11012A 11012-3786 1
BRACKET 11050 11050-3726 1
SHAFT,JETPUMP 13107 13107-3752 1
TRIM-SEAL 39145 39145-3742 1
RING 43058 43058-3723 1
NOZZLE-PUMP 59136 59136-3736 1
IMPELLER-COMP 59255 59255-3708 1
JOINT-BALL 59266 59266-3707 2
GRATE 59366 59366-3712 1
NOZZLE-STRG 59476 59476-3734 1
VANE-GUIDE 59496 59496-3749 1
BOLT,6X30 92002 92002-3726 3
WASHER 92022 92022-567 2
SPACER 92026 92026-3731 3
BUSHING 92028 92028-3756 1
RING-SNAP 92033 92033-3725 1
BEARING-BALL,62022RD 92045 92045-3721 1
BEARING-BALL 92045A 92045-3727 1
SEAL-OIL,SCJ30X50X7 92049 92049-3720 1
SEAL-OIL,SCY30X50X7 92049A 92049-3721 1
RING-O,OIL FILTER 92055 92055-1011 1
RING-O 92055A 92055-3741 1
RING-O 92055B 92055-3744 1
SEAL,JET PUMP 92093 92093-3739 1
BUSHING 92139 92139-3701 2
BOLT,SOCKET,6X18 92150 92150-3775 4
BOLT,8X35 92150A 92150-3792 4
BOLT 92150B 92150-3808 2
BOLT 92150C 92150-3829 2
BOLT 92151 92151-3705 2
BOLT,10X30 92151A 92151-3706 4
BOLT 92151B 92151-3710 2
WASHER 92200 92200-3740 2
