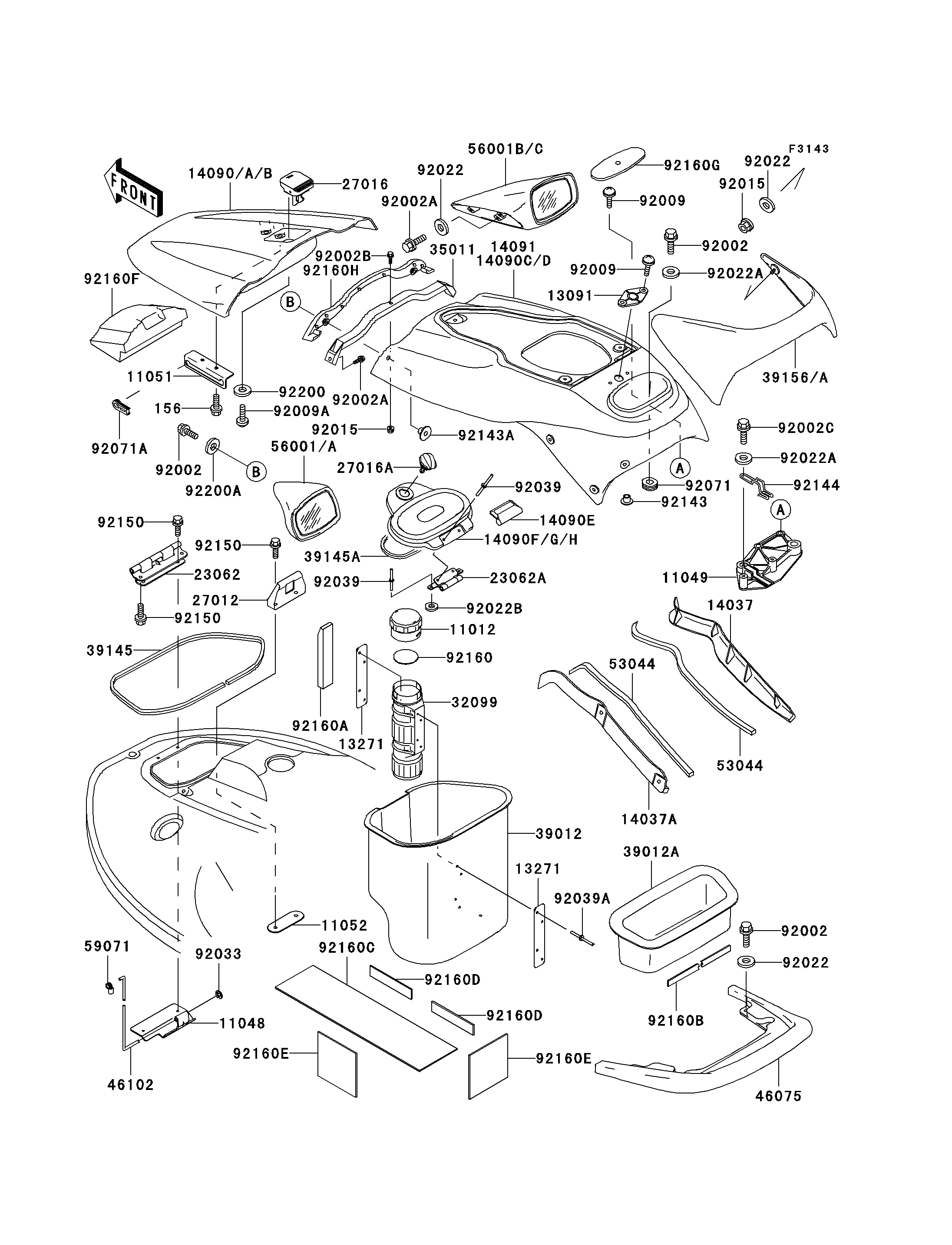

2001 1100 Zxi - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11048
11048
11049
11049
11051
11051
11052
11052
13091
13091
13271
13271
13271
13271
14037
14037
14037A
14037A
14090B
14090B
14090D
14090D
14090E
14090E
14090H
14090H
23062
23062
23062A
23062A
27012
27012
27016
27016
27016A
27016A
32099
32099
35011
35011
39012
39012
39012A
39012A
39145
39145
39145A
39145A
39156
39156
46075
46075
46102
46102
53044
53044
53044
53044
56001
56001
56001B
56001B
59071
59071
156
156
92002
92002
92002
92002
92002
92002
92002A
92002A
92002A
92002A
92002B
92002B
92002C
92002C
92009
92009
92009
92009
92009A
92009A
92015
92015
92015
92015
92022
92022
92022
92022
92022
92022
92022A
92022A
92022A
92022A
92022B
92022B
92033
92033
92039
92039
92039
92039
92039A
92039A
92071
92071
92071A
92071A
92143
92143
92143A
92143A
92144
92144
92150
92150
92150
92150
92150
92150
92160
92160
92160A
92160A
92160B
92160B
92160C
92160C
92160D
92160D
92160D
92160D
92160E
92160E
92160E
92160E
92160F
92160F
92160G
92160G
92160H
92160H
92200
92200
92200A
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
BRACKET,HATCH COVER 11048 11048-3776 1
BRACKET,FUEL TAP 11049 11049-3714 1
BRACKET,HATCH COVER 11051 11051-3725 1
BRACKET,HATCH COVER LOCK 11052 11052-3727 1
HOLDER,LOCK 13091 13091-3789 1
PLATE,FIRE EXTINGUISHER 13271 13271-3775 2
SCREEN,HANDLE COVER,RH 14037 14037-3705 1
SCREEN,HANDLE COVER,LH 14037A 14037-3706 1
COVER,HATCH,S.YELLOW 14090B 14090-3747-7H 1
COVER,HANDLE,S.YELLOW 14090D 14090-3748-7H 1
COVER,STORAGE HINGE,BLACK 14090E 14090-3763-6D 1
COVER,CENTER STORAGE,S.YELLOW 14090H 14090-3774-7H 1
BRACKET-COMP,HATCH COVER 23062 23062-3711 1
BRACKET-COMP,STORAGE HINGE 23062A 23062-3713 1
HOOK,HATCH COVER LOCK 27012 27012-3803 1
LOCK-ASSY,HATCH COVER 27016 27016-3737 1
LOCK-ASSY,STORAGE COVER 27016A 27016-3741 1
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
STAY,MIRROR 35011 35011-3708 1
CASE-STORAGE,FR 39012 39012-3713 1
CASE-STORAGE,TOOL CASE 39012A 39012-3714 1
TRIM-SEAL 39145 39145-3743 1
TRIM-SEAL,L=450 39145A 39145-3744 1
PAD,KNEE,BLACK 39156 39156-3782-MA 1
GRIP,TAIL,F.BLACK 46075 46075-3736-6Z 1
ROD,HATCH COVER STOPPER 46102 46102-3722 1
TRIM,L=385 53044 53044-1255 2
MIRROR-ASSY,LH,S.YELLOW 56001 56001-3707-AU 1
MIRROR-ASSY,RH,S.YELLOW 56001B 56001-3708-AU 1
JOINT 59071 59071-3743 1
BOLT-WP,6X12 156 156R0612 2
BOLT,6X25 92002 92002-3714 8
BOLT,6X30 92002A 92002-3726 6
BOLT,6X16 92002B 92002-3728 1
BOLT,6X12 92002C 92002-3763 1
SCREW,6X20 92009 92009-3781 4
SCREW,5X16 92009A 92009-3789 2
NUT,6MM 92015 92015-3767 7
WASHER,6.5X20X1.5 92022 92022-3710 14
WASHER,6.2X20X2 92022A 92022-3714 3
WASHER 92022B 92022-563 2
RING-SNAP,E-TYPE,4MM 92033 92033-3722 1
RIVET,4MM 92039 92039-3703 4
RIVET 92039A 92039-3755 4
GROMMET 92071 92071-3808 2
GROMMET 92071A 92071-3809 1
COLLAR 92143 92143-3750 2
COLLAR 92143A 92143-3753 2
SPRING 92144 92144-3746 1
BOLT,6X18 92150 92150-3729 6
DAMPER 92160 92160-3814 1
DAMPER 92160A 92160-3821 1
DAMPER,TOOL CASE 92160B 92160-3836 1
DAMPER 92160C 92160-3839 1
DAMPER 92160D 92160-3840 2
DAMPER,WATER MUFFLER 92160E 92160-3841 2
DAMPER,FIRE EXTINGUISHER CASE 92160F 92160-3858 1
DAMPER 92160G 92160-3863 1
DAMPER,HANDLE COVER,FR 92160H 92160-3893 1
WASHER,5.9X16X1.5 92200 92200-3714 2
WASHER,7.5X24X1.5 92200A 92200-3741 2
