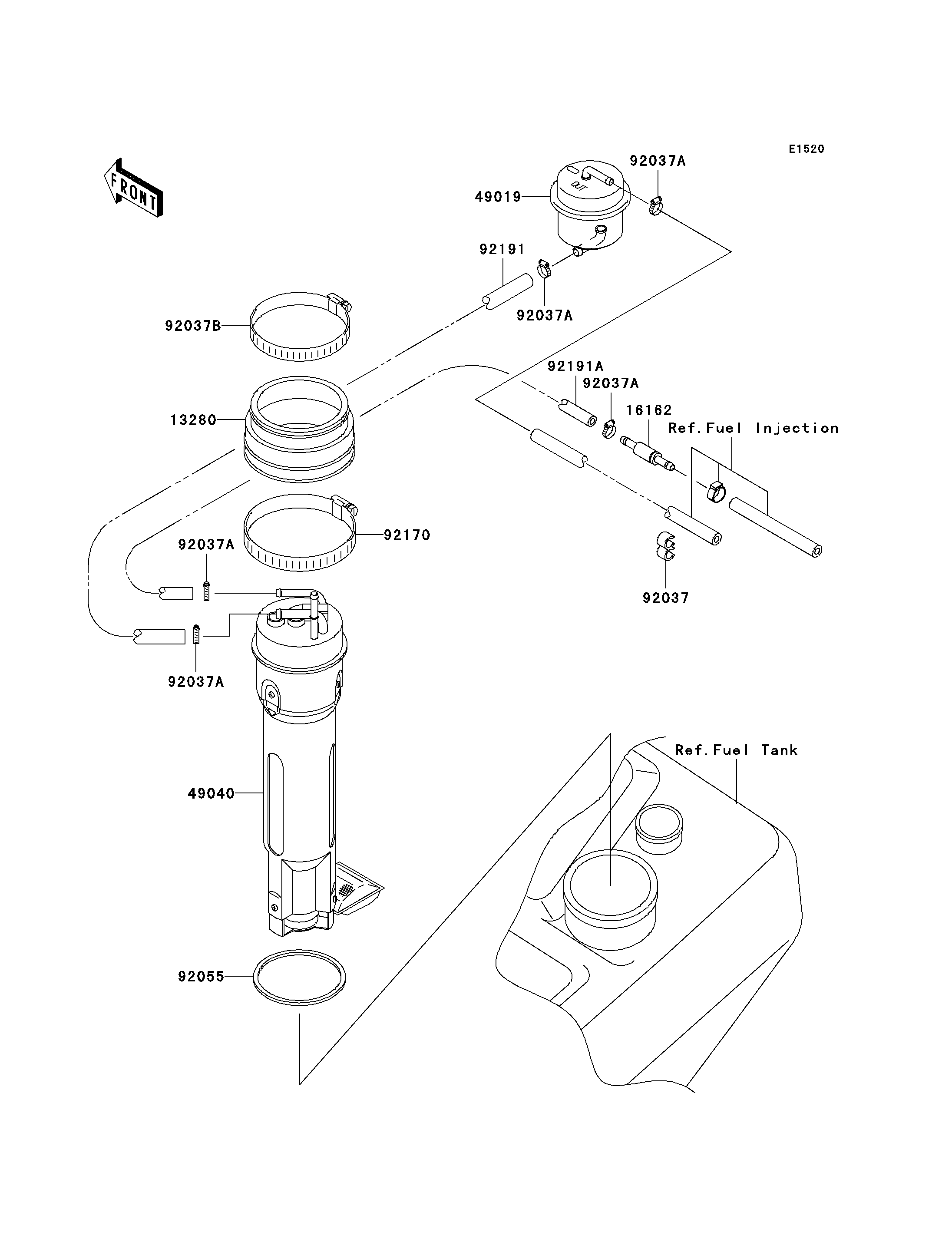

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER 13280 13280-3735 1
REGULATOR-FUEL 16162 16162-3701 1
FILTER-FUEL 49019 49019-3716 1
PUMP-FUEL 49040 49040-3709 1
CLAMP,HOSE 92037 92037-1603 1
CLAMP 92037A 92037-3726 5
CLAMP 92037B 92037-541 1
RING-O,FUEL PUMP 92055 92055-3756 1
CLAMP 92170 92170-3760 1
TUBE,7.5X13.5X460 92191 92191-3869 1
TUBE,5.8X10.8X410,RETURN 92191A 92191-3872 1
