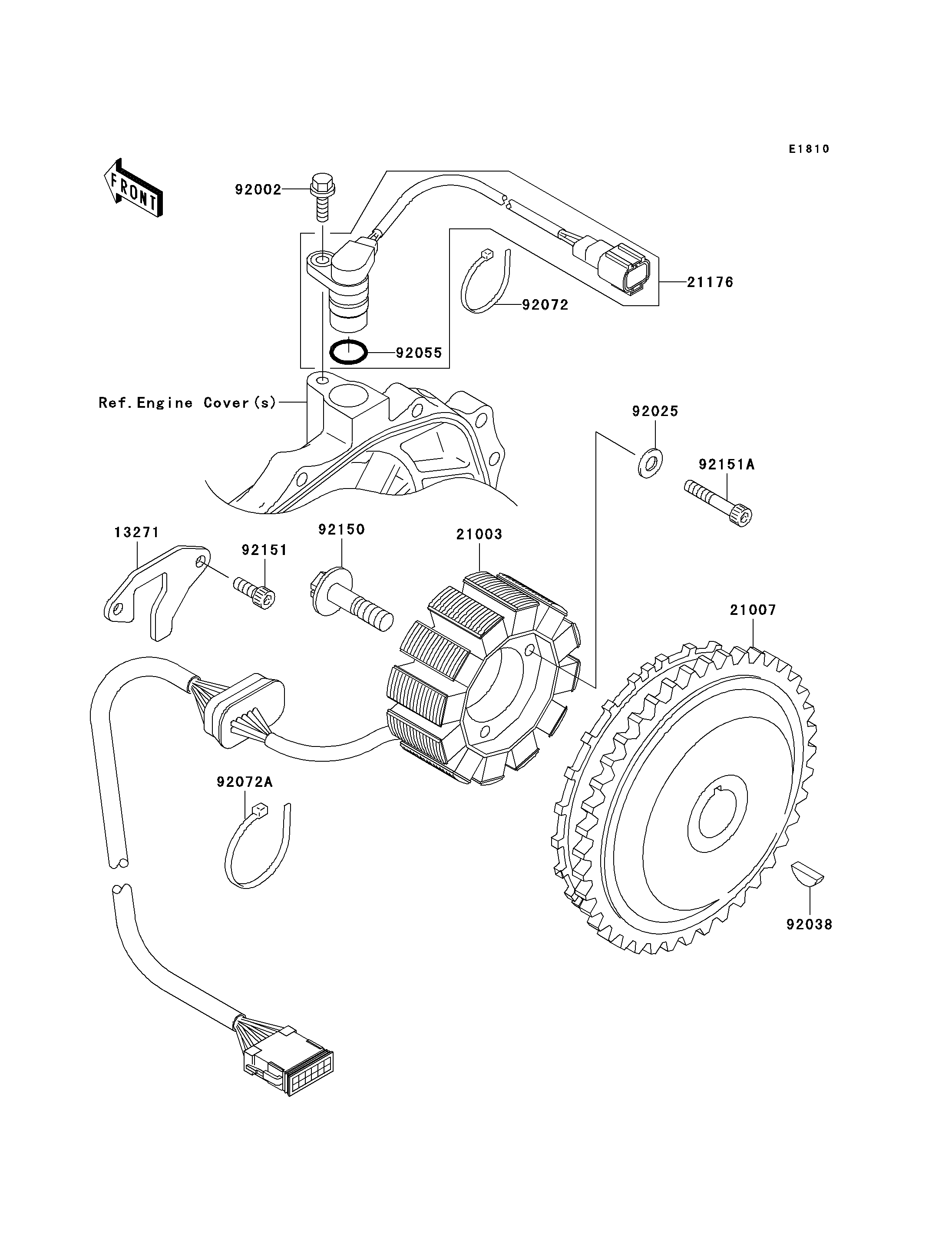

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE 13271 13271-3761 1
STATOR 21003 21003-3744 1
ROTOR 21007 21007-3725 1
SENSOR 21176 21176-1077 1
BOLT,6X16 92002 92002-3728 1
SHIM,T=1.4 92025 92025-1502 3
KEY,WOODRUFF 92038 92038-001 1
RING-O 92055 92055-1639 1
BAND,L=201 92072 92072-3778 1
BAND,L=368.3 92072A 92072-3808 1
BOLT 92150 92150-3843 1
BOLT,SOCKET,6X16 92151 92151-3770 2
BOLT,SOCKET,6X35 92151A 92151-3780 3
