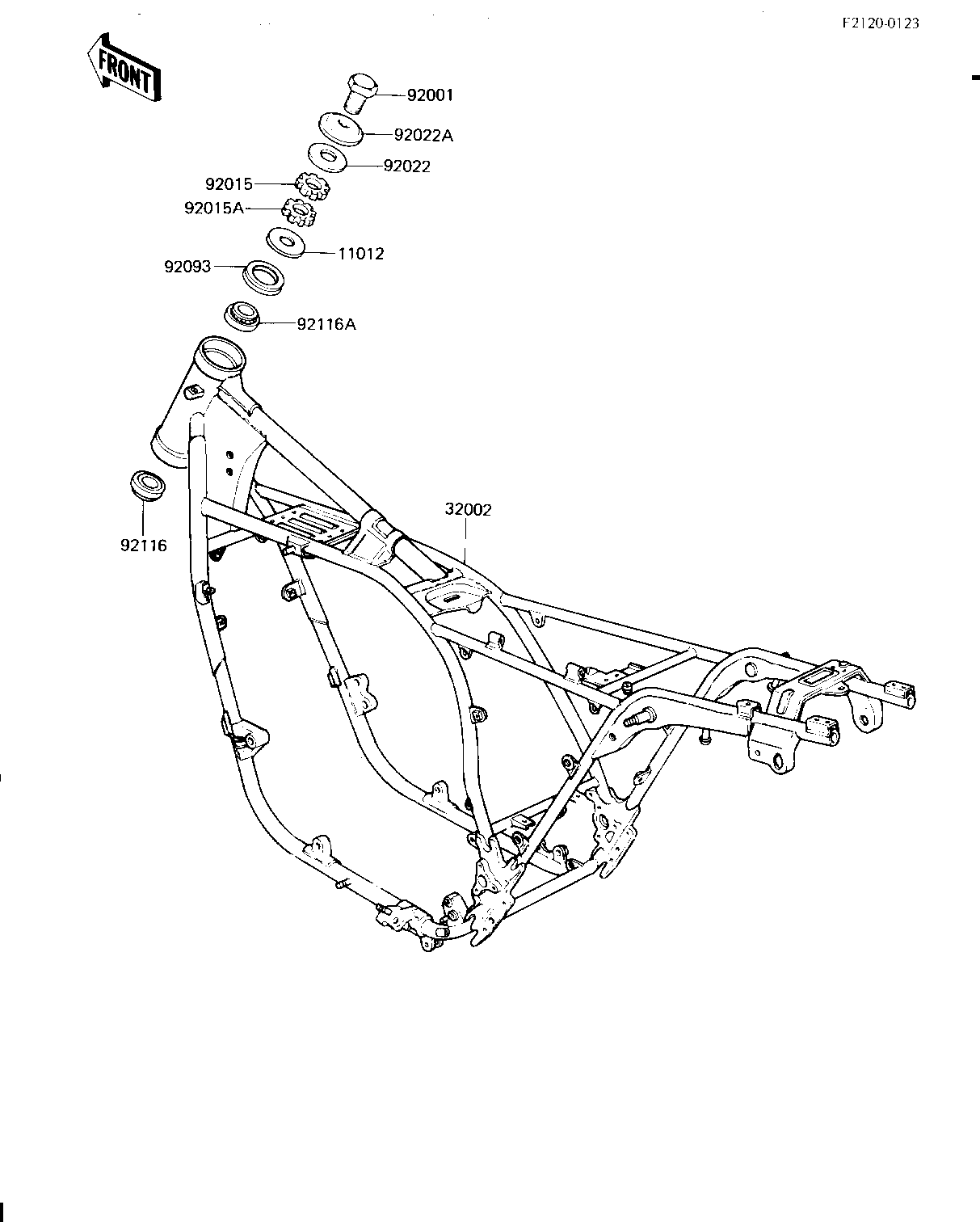

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING 11012 11012-1206 1
FRAME-COMP 32002 32002-1371 1
BOLT,STEERG STEM HEAD 92001 92007-031 1
NUT,STEERING STEM HEA 92015 92015-1069 1
NUT,STEERING,28MM 92015A 92015-1163 1
WASHER,WAVE 92022 46100-003 1
WASHER,STEERG STM HD 92022A 92022-230 1
SEAL,STEERING 92093 92093-1070 1
BEARING,ROLLER,32006 92116 92116-1008 1
BRG,ROLLER,HR320/28XJ 92116A 92116-1009 1
