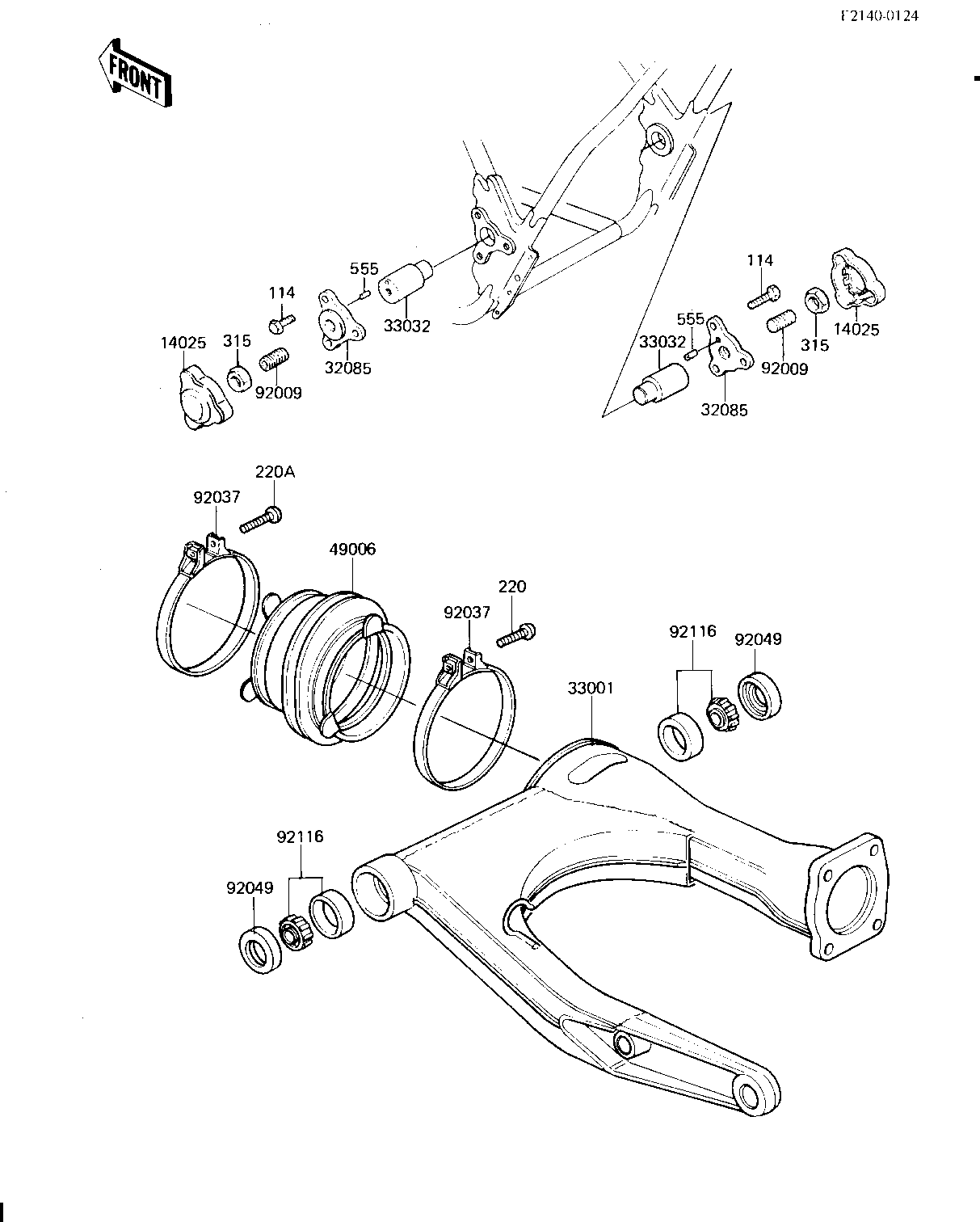

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SWING ARM 14025 14025-1087 2
STOPPER,SWING ARM 32085 32085-1053 2
ARM,SWING 33001 33001-1026 1
SHAFT,SWING ARM 33032 33032-1016 2
BOOT,SWING ARM 49006 49006-1020 1
SCREW,14X22 92009 92009-1087 2
CLAMP,SWING ARM BOOT 92037 92037-1097 2
OIL SEAL,26406 92049 92049-1030 2
BRG,ROLLER,4T30203E1 92116 92116-1001 2
SCREW-PAN-CROS 220 220B0420 1
SCREW-PAN-CROS 220A 220B0430 1
NUT 14MM 315 315B1400 2
PIN,SPRING,3X14 555 555A0314 2
