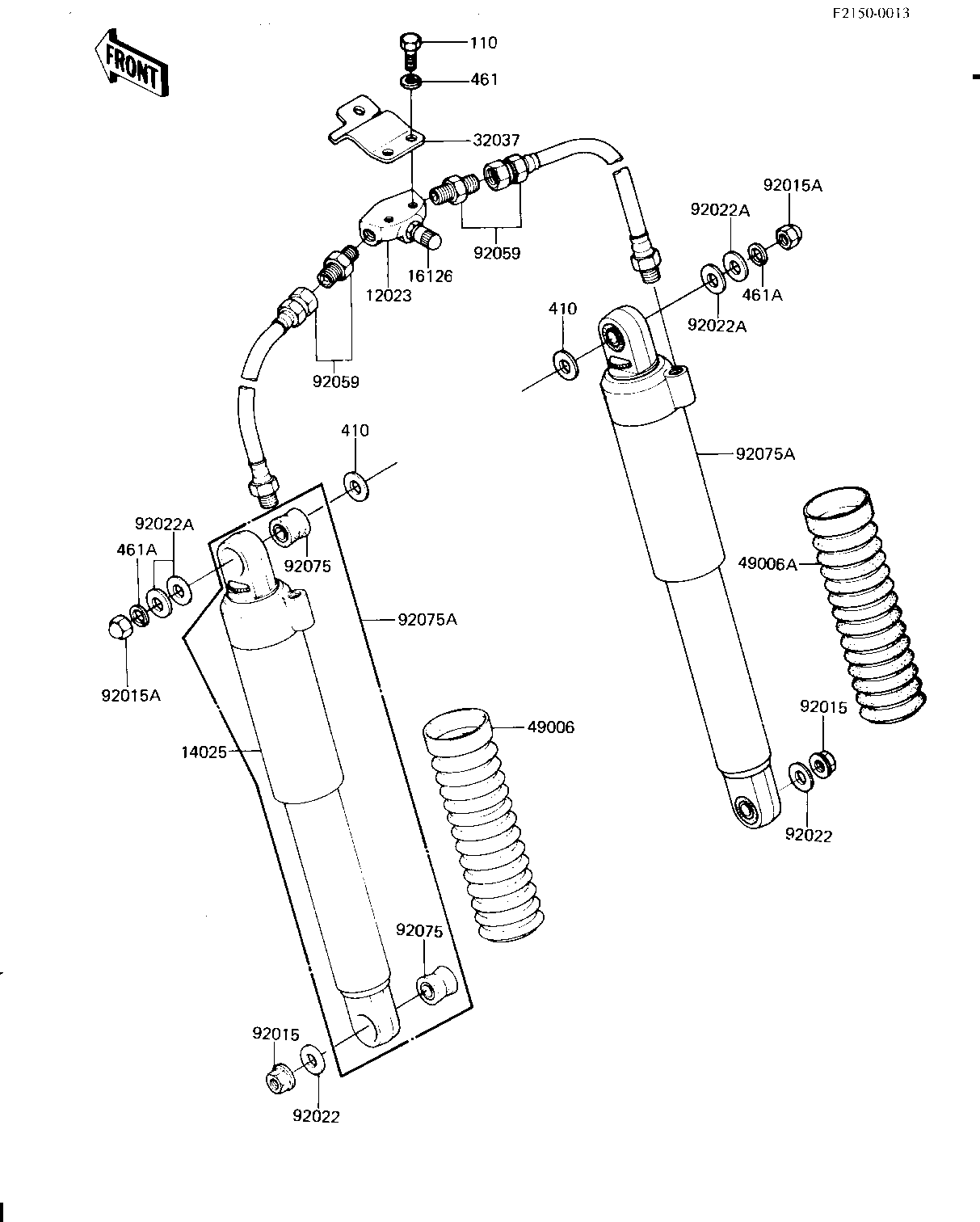

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-VALVE,AIR 12023 12023-1012 1
COVER,DAMPER,RR 14025 14025-1298 2
VALVE AIR 16126 16126-1052 1
BRACKET-SHCKBSRBR,RR 32037 32037-1138 1
BOOT,DAMPER 49006 49006-1155 1
BOOT,DAMPER 49006A 49006-1155 1
NUT,10MM 92015 92015-1415 2
NUT 12MM 92015A 92020-014 2
WASHER,10.5X30X2.3 92022 92022-1193 2
WASHER,12.4X28X2.3 92022A 92022-1239 4
TUBE 92059 92059-1168 2
BUSHING,SHOCK ABSORBE 92075 92075-1141 4
SHOCK ABSORBER,REAR 92075A 92075-1294 2
BOLT-UPSET 6X14 110 112B0614 2
WASHER PLAIN 14MM 410 410B1400 2
WASHER SPRING 6MM 461 461F0600 2
WASHER SPRING 12MM 461A 461F1200 2
