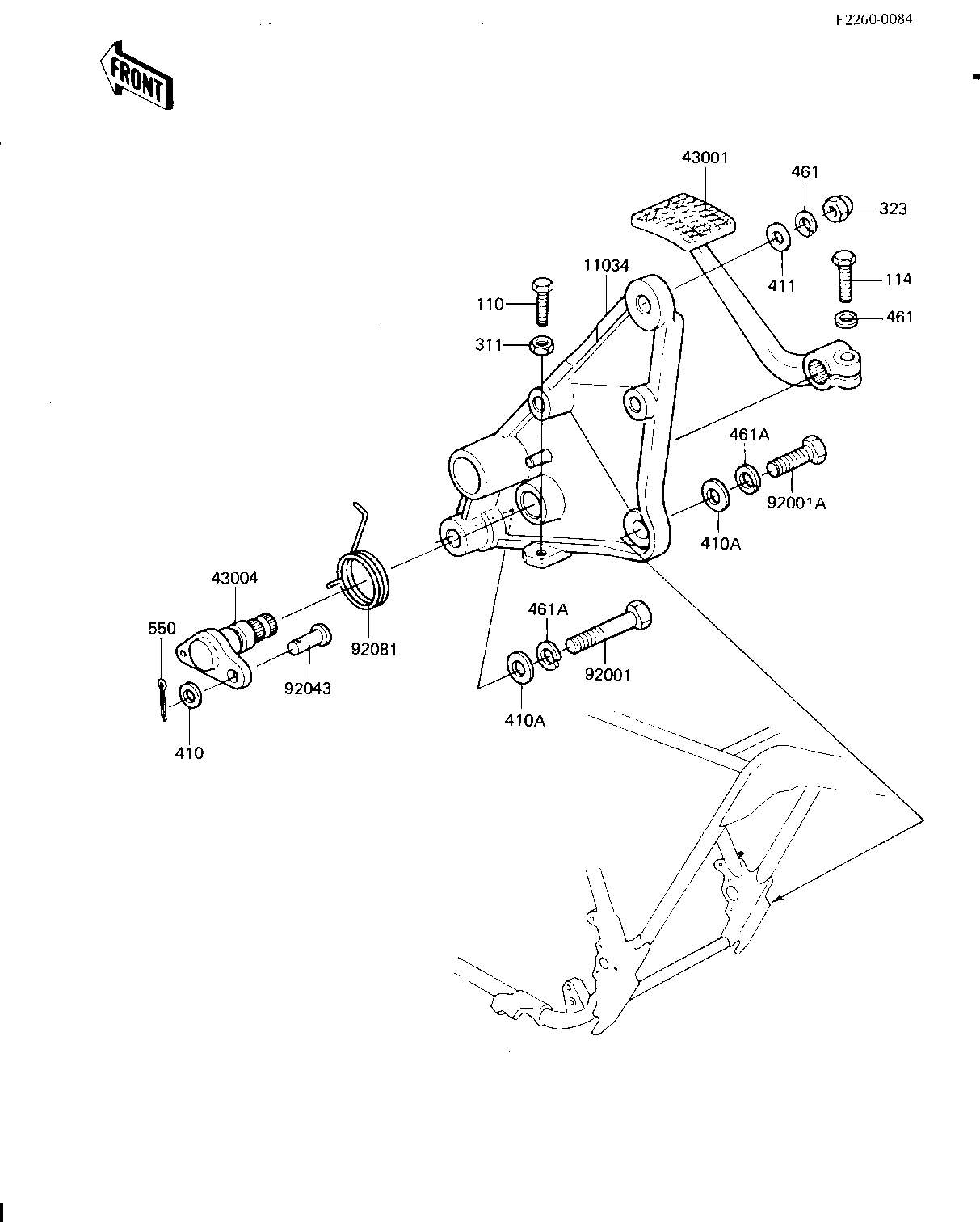

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BRAKE PEDAL 11034 11034-1263 1
PEDAL,BRAKE 43001 43001-1024 1
SHAFT,BRAKE 43004 43004-1006 1
BOLT-HEX HEAD,10X46 92001 92007-029 1
BOLT,HEX HEAD,10X25 92001A 92007-045 1
PIN RR BRAKE CABLE 92043 92043-107 1
SPRING,BRAKE PEDAL RT 92081 92081-1088 1
BOLT 6X22 110 112B0622 1
BOLT-SMALL-UPSET 8X25 114 115G0825 1
NUT 6MM 311 311B0600 1
NUT,CAP,8M/M 323 323N0800 1
WASHER PLAIN 6MM 410 410B0600 1
WASHER PLAIN 10MM 410A 410B1000 2
WASHER PLAIN 8MM 411 411B0800 1
WASHER SPRING 8MM 461 461F0800 2
WASHER SPRING 10MM 461A 461F1000 2
PIN COTTER 2.0X20 550 550D2020 1
