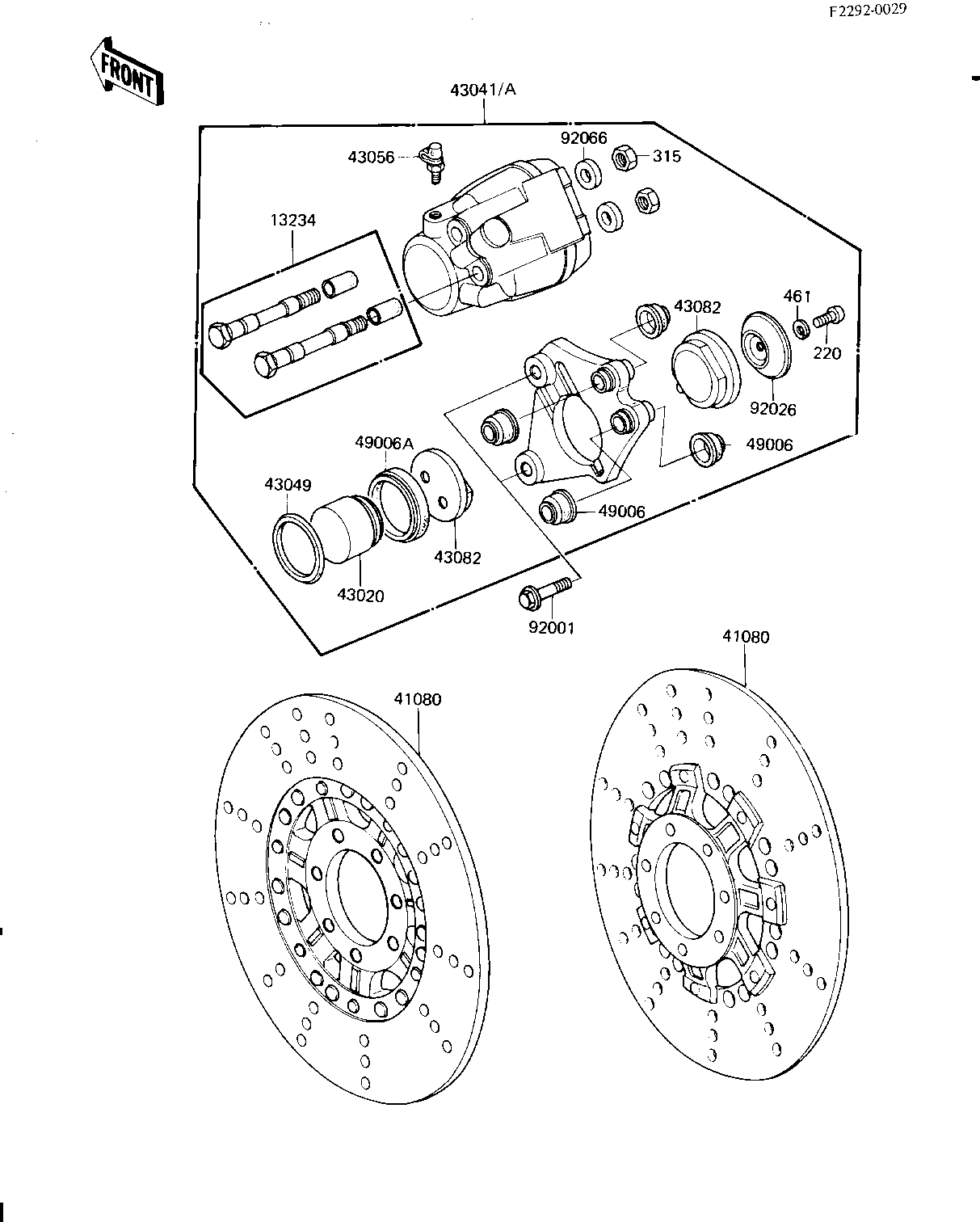

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT ASSY,CALIPER 13234 13234-1002 2
DISC,FR,SILVER 41080 41080-1123 2
PISTON,BRAKE,42M/M 43020 43020-1012 2
CALIPER ASSY,FRONT,LH 43041 43041-1016 1
CALIPER ASSY,FRONT,RH 43041A 43041-1017 1
RING,PISTON SEAL 43049 43049-002 2
BLEEDER SET 43056 43085-001 2
PAD SET 43082 43082-1004 2
DUST SHILD,SHAFT 49006 43052-005 8
DUST SEALD,RUBBER 49006A 43054-003 2
BOLT,HEX HEAD,10X44 92001 92001-1299 4
SPACER 92026 43040-004 2
PLUG 92066 43088-002 4
SCREW PAN HEAD 6X12 220 220B0612 2
NUT 10MM 315 315B1000 4
WASHER SPRING 6MM 461 461F0600 2
