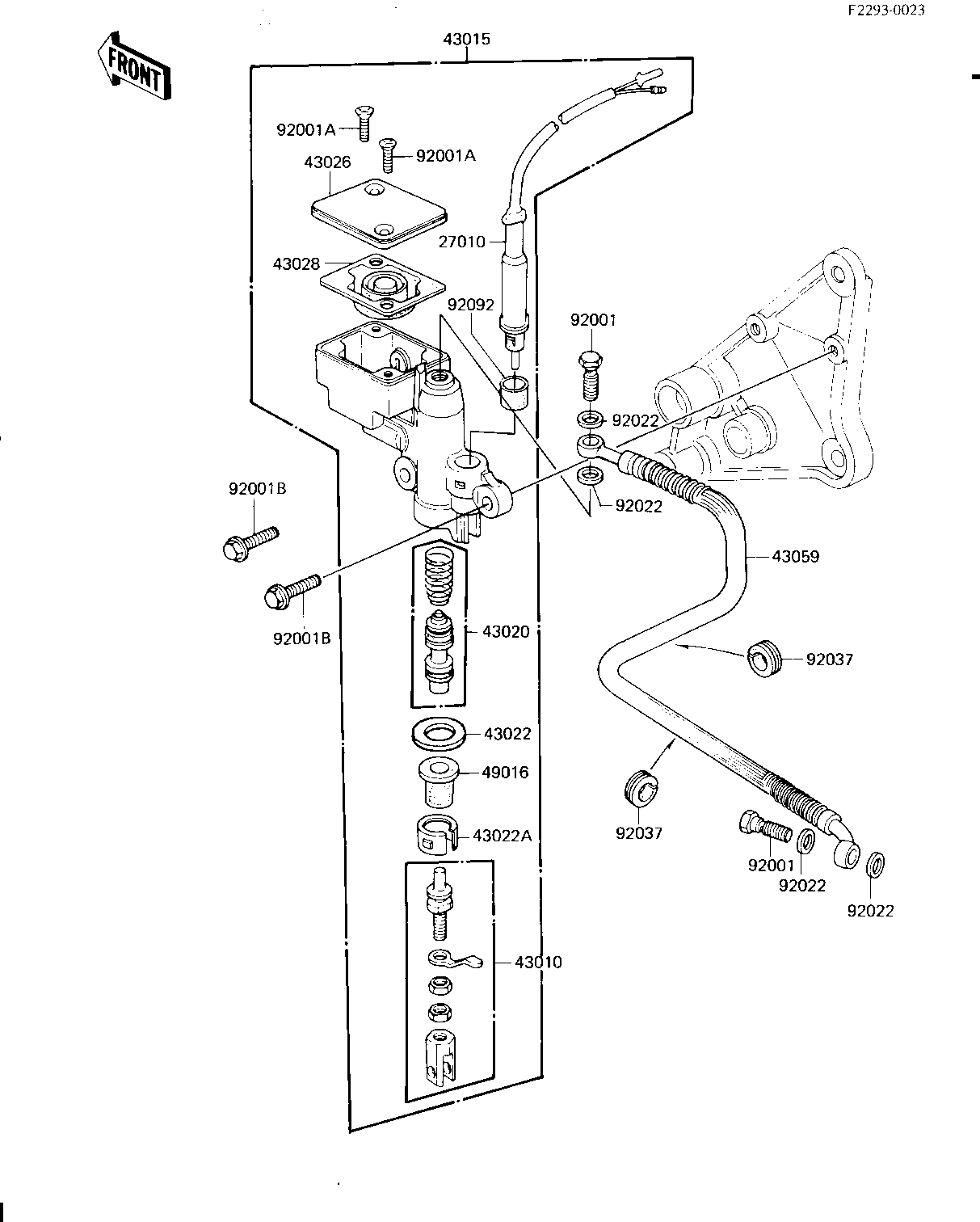

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,REAR BRAKE 27010 27010-1027 1
ROD ASSY,BRAKE 43010 43010-1001 1
CYLINDER ASSY,REAR 43015 43015-1062 1
PISTON-COMP-BRAKE 43020 43020-1024 1
STOPPER,PISTON 43022 43022-1002 1
STOPPER,DUST COVER 43022A 43022-1003 1
CAP,OIL CUP 43026 43026-1013 1
DIAPHRAGM 43028 43028-1007 1
HOSE-BRAKE,L=620 43059 43059-1177 1
DUST COVER 49016 49016-1026 1
BOLT,OIL,L=23 92001 92002-1888 2
SCREW,COUNTERSUNK HED 92001A 92001-1055 2
BOLT,8X28 92001B 92001-1095 2
WASHER-OIL BOLT 92022 43067-001 4
DAMPER RUBBER 92037 43064-007 2
BUSHING 92092 92092-1007 1
