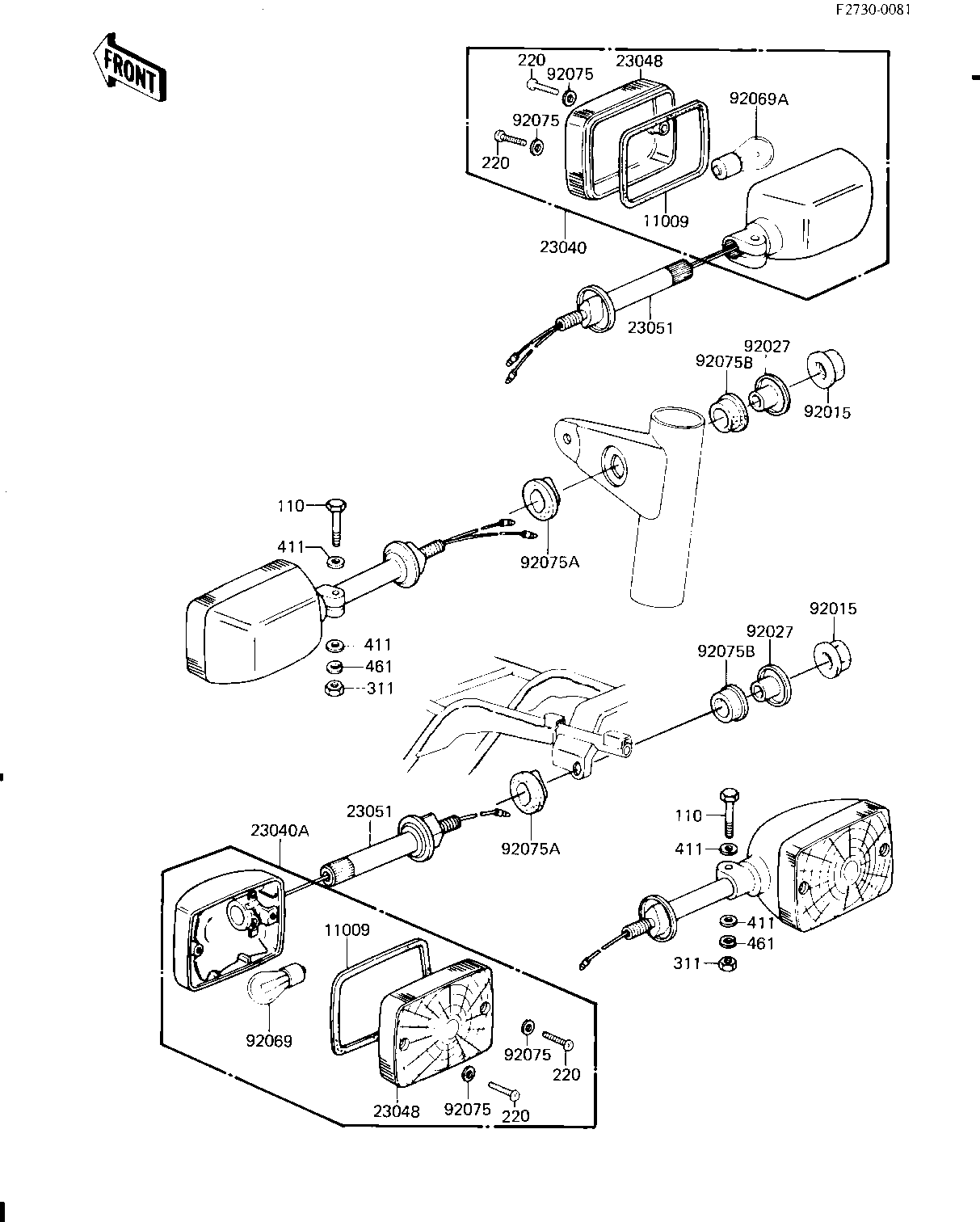

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TURN SIGNAL 11009 11009-1102 4
LAMP ASSY,TURN SIGNAL 23040 23040-1021 2
LAMP,ASSY,TURN SIGNAL 23040A 23040-1022 2
LENS SIGNAL LAMP FR 23048 23048-1020 4
BRACKET,TURN SIGNAL 23051 23051-1023 4
NUT,FLANGED,10MM 92015 92015-1428 4
COLLAR 92027 92027-147 4
BULB 12V 32CP 92069 92069-055 2
BULB,12V 23/8W 92069A 92069-060 2
WASHER-PLAIN,4MM 92075 23058-002 8
DAMPER RUBBER 92075A 92075-128 4
DAMPER RUBBER,SIG LM 92075B 92075-158 4
BOLT-UPSET 110 112G0630 4
SCREW,PAN HEAD,4X16 220 220E0416A 8
NUT 6MM 311 311B0600 4
WASHER PLAIN 6MM 411 411B0600 8
WASHER SPRING 6MM 461 461F0600 4
