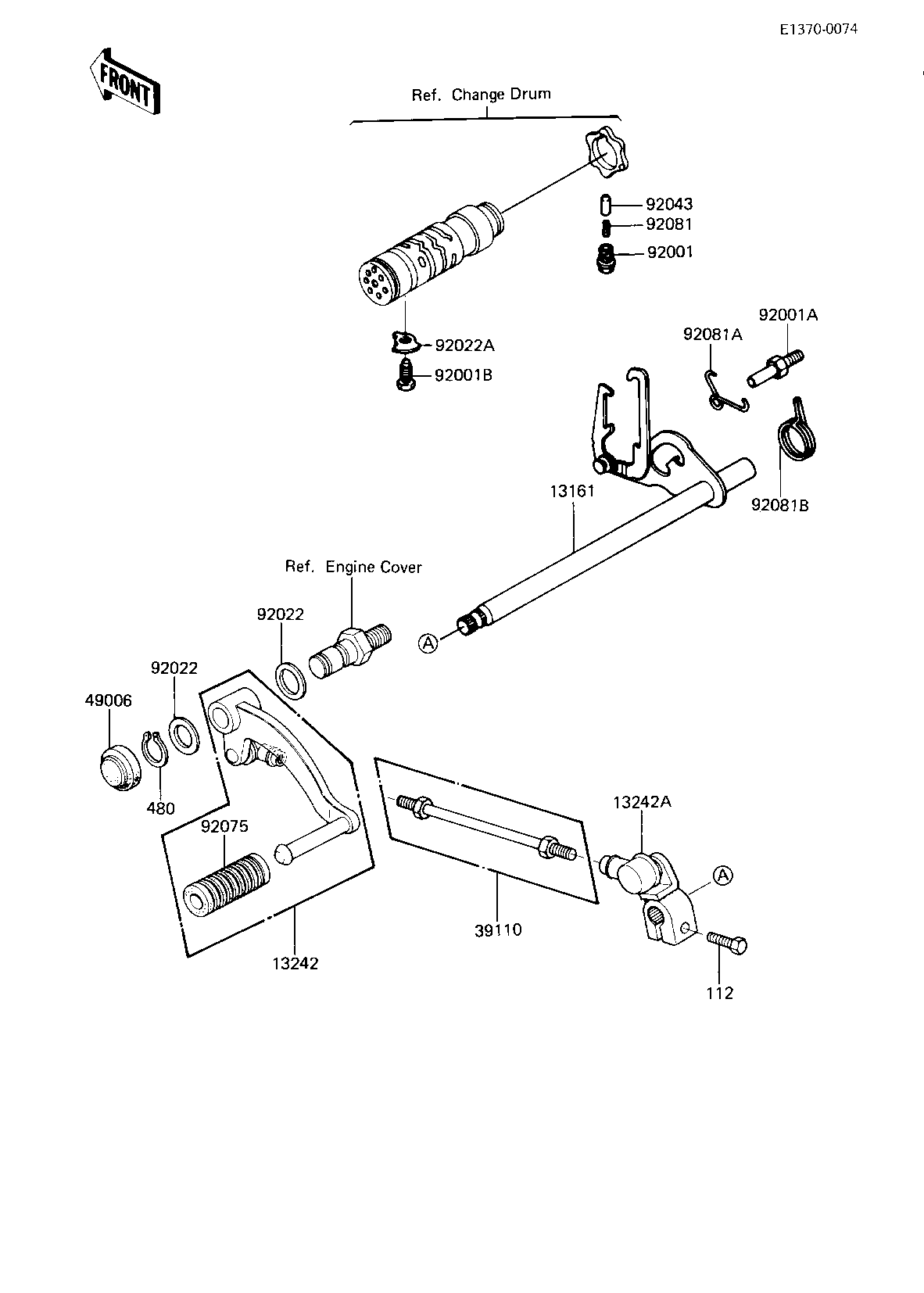

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER ASSY,GEAR SFT 13161 13161-042 1
LEVER-ASSY-CHANGE,PDL 13242 13242-1049 1
LEVER-ASSY-CHANGE 13242A 13242-1074 1
ROD-ASSY-TIE,CHANGE L 39110 39110-1011 1
BOOT,CHANGE LEVER 49006 49006-1061 1
BOLT,NEUTRAL POSITION 92001 92001-1037 1
BOLT,RETURN SPRING 92001A 92001-1401 1
BOLT,HEX HEAD,10X26 92001B 92001-174 1
WASHER PLAIN 12MM 92022 92022-072 2
WASHER,LOCK,10MM 92022A 92024-074 1
PIN-NEUTRAL POSITION 92043 92043-076 1
RUBBER CHANGE PEDAL 92075 13157-004 1
SPRING 92081 92081-112 1
SPRING,KICK PAWL 92081A 92083-018 1
SPRING,CHG PEDL RTRN 92081B 92083-028 1
BOLT-UPSET,6X20 112 112J0620 1
CIRCLIP 12MM 480 480J1200 1
