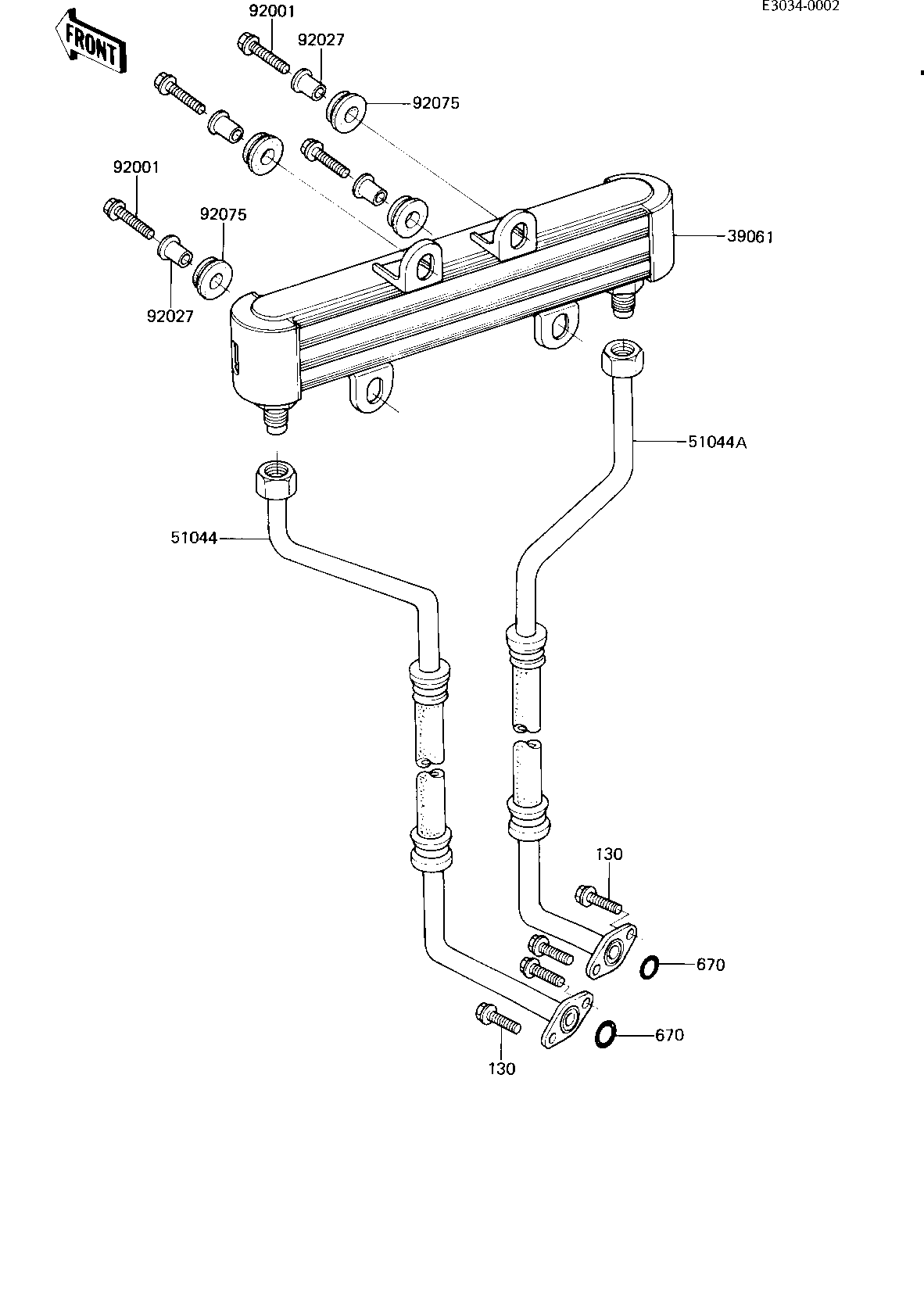

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COOLER,OIL,BLACK 39061 39061-1007-10 1
TUBE-ASSY,OIL COOLER, 51044 51044-1015 1
TUBE-ASSY,OIL COOLER, 51044A 51044-1016 1
BOLT-FLANGED,6X20 92001 130J0620 4
COLLAR,FLANGED,L=12.1 92027 92027-1651 4
DAMPER RUBBER 92075 92075-277 4
BOLT-FLANGED,6X16 130 130J0616 4
"O" RING,12MM 670 670B2012 2
