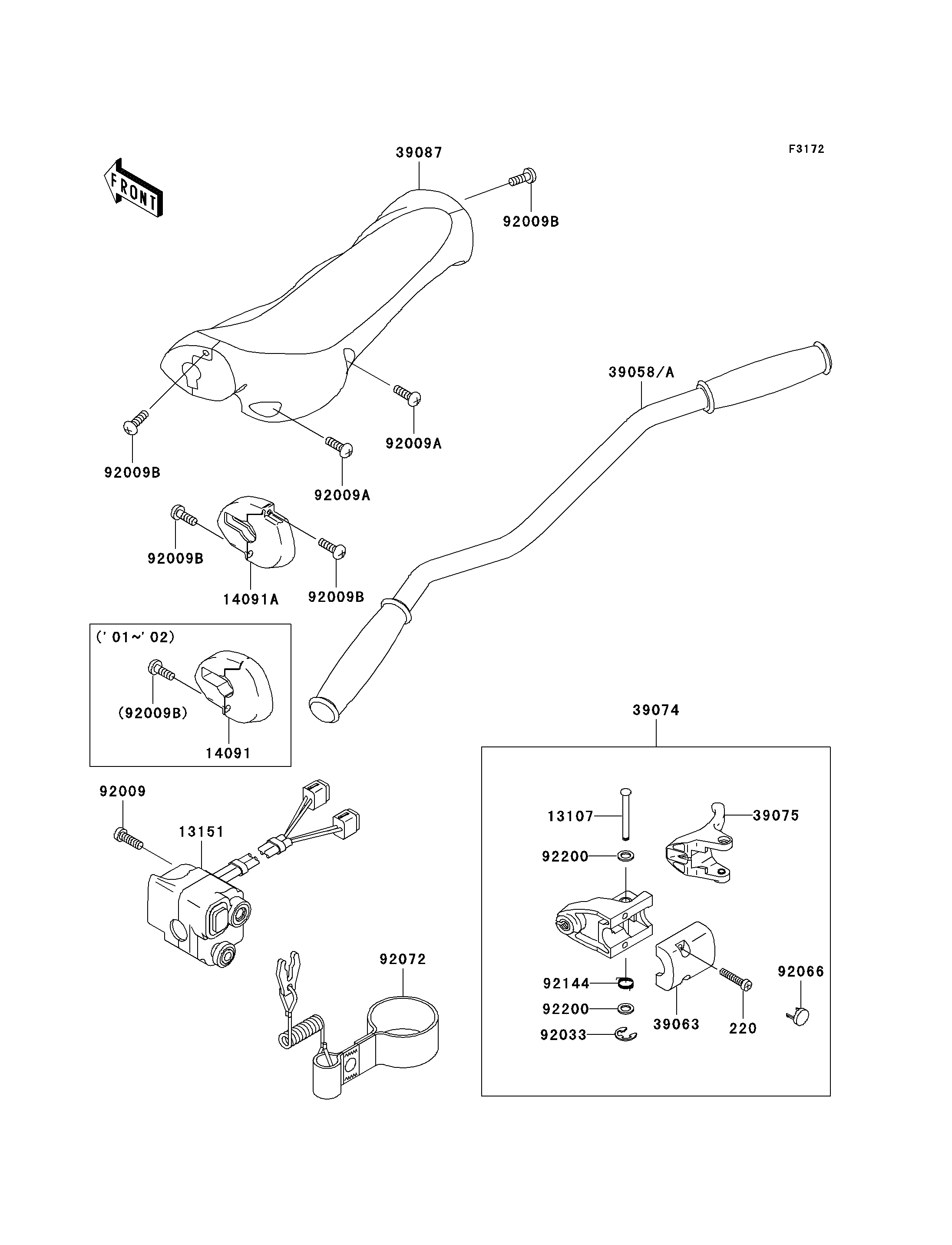

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROSS 220 220R0635 2
SHAFT 13107 13107-3766 1
SWITCH-COMP,STOP&START&TRIM 13151 13151-3733 1
COVER,F.BLACK 14091A 14091-3752-6Z 1
HANDLE-COMP,F.BLACK 39058A 39058-3736-6Z 1
HOUSING-CONTROL 39063 39063-3724 1
LEVER-ASSY-THROTTLE 39074 39074-3722 1
LEVER-THROTTLE 39075 39075-3715 1
PAD-HANDLE,BLACK 39087 39087-3729-MA 1
SCREW,5X30 92009 92009-3836 3
SCREW,6X14 92009A 92009-3851 9
SCREW 92009B 92009-3853 4
RING-SNAP 92033 92033-3723 1
PLUG 92066 92066-3760 2
BAND,TETHER SWITCH 92072 92072-3816 1
SPRING 92144 92144-3749 1
WASHER 92200 92200-3738 2
