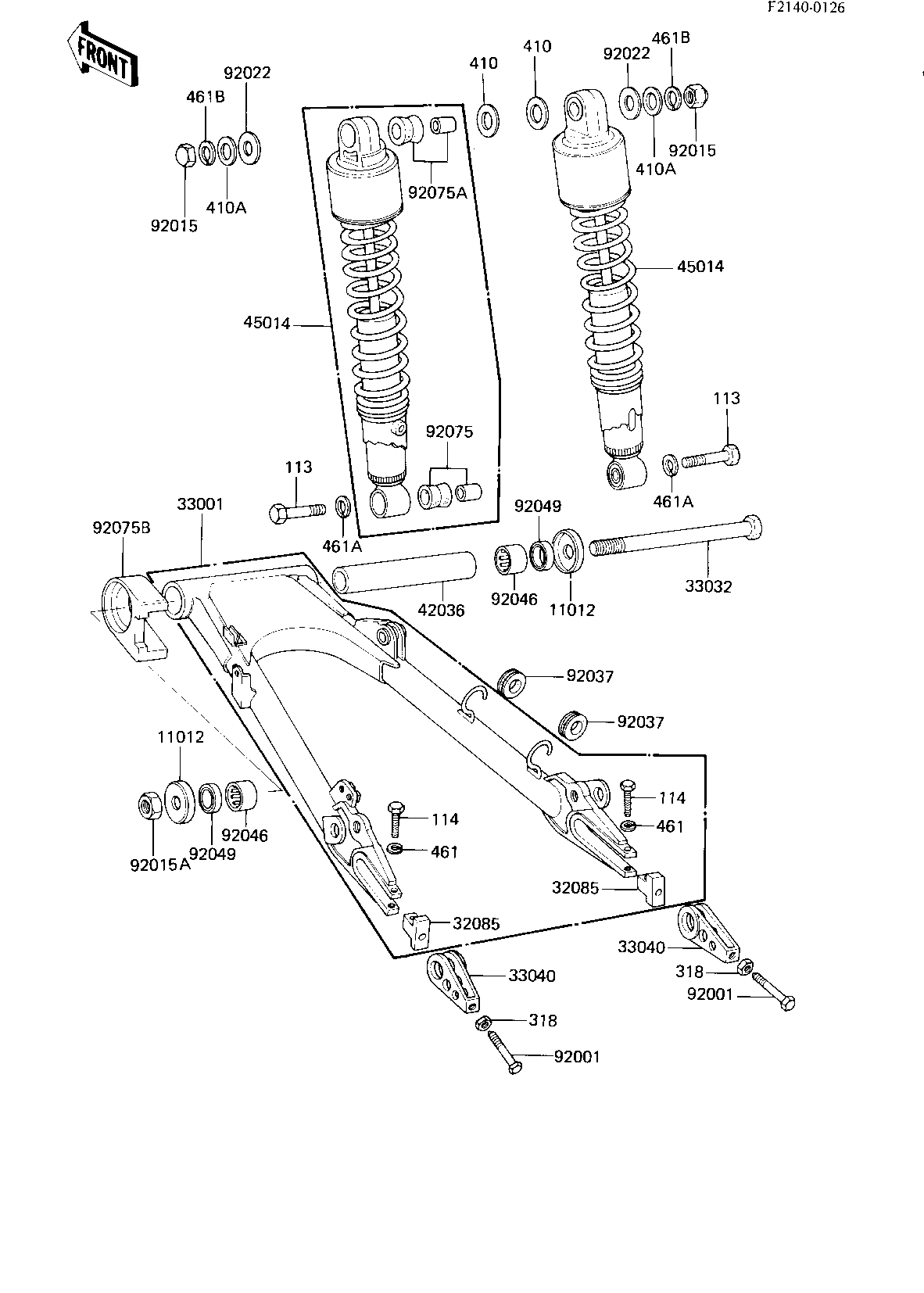

1982 GPz - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SWING ARM 11012 33035-009 2
STOPPER,CHAIN ADJUST 32085 33044-002 2
ARM-COMP-SWING,BLACK 33001 33001-1136-10 1
SHAFT-SWING ARM,16X31 33032 33032-1028 1
ADJUSTER,CHAIN 33040 33040-056 2
SLEEVE,SWING ARM 42036 42036-1012 1
SHOCKABSORBER,RR,BLAC 45014 45014-1178-10 2
BOLT,8X50 92001 92001-1399 2
NUT,LOCK,CAP,12MM,BLA 92015 92015-1192 2
NUT,LOCK,16MM,BLACK 92015A 92015-1207 1
WASHER,12.4X28X2.3,BL 92022 92022-1303 2
DAMPER RUBBER 92037 43064-007 2
BEARING-NEEDLE,HK2216 92046 92046-1115 2
OIL SEAL,MHA22284 92049 92049-1059 2
BUSHING,SHOCK ABSORBE 92075 45017-019 2
BUSHING,SHOCK ABSORBE 92075A 92075-1141 2
DAMPER, 92075B 92075-1144 1
BOLT-SMALL-FINE,10X35 113 112C1035 2
BOLT,SMALL UPSET 114 115G0835 2
NUT 8MM 318 318B0800 2
WASHER PLAIN 14MM 410 410B1400 2
WASHER-PLANE-SMALL 410A 410F1200 2
WASHER SPRING 8MM 461 461F0800 2
WASHER-SPRING,10MM 461A 461K1000 2
WASHER-SPRING,12MM,BL 461B 461K1200 2
