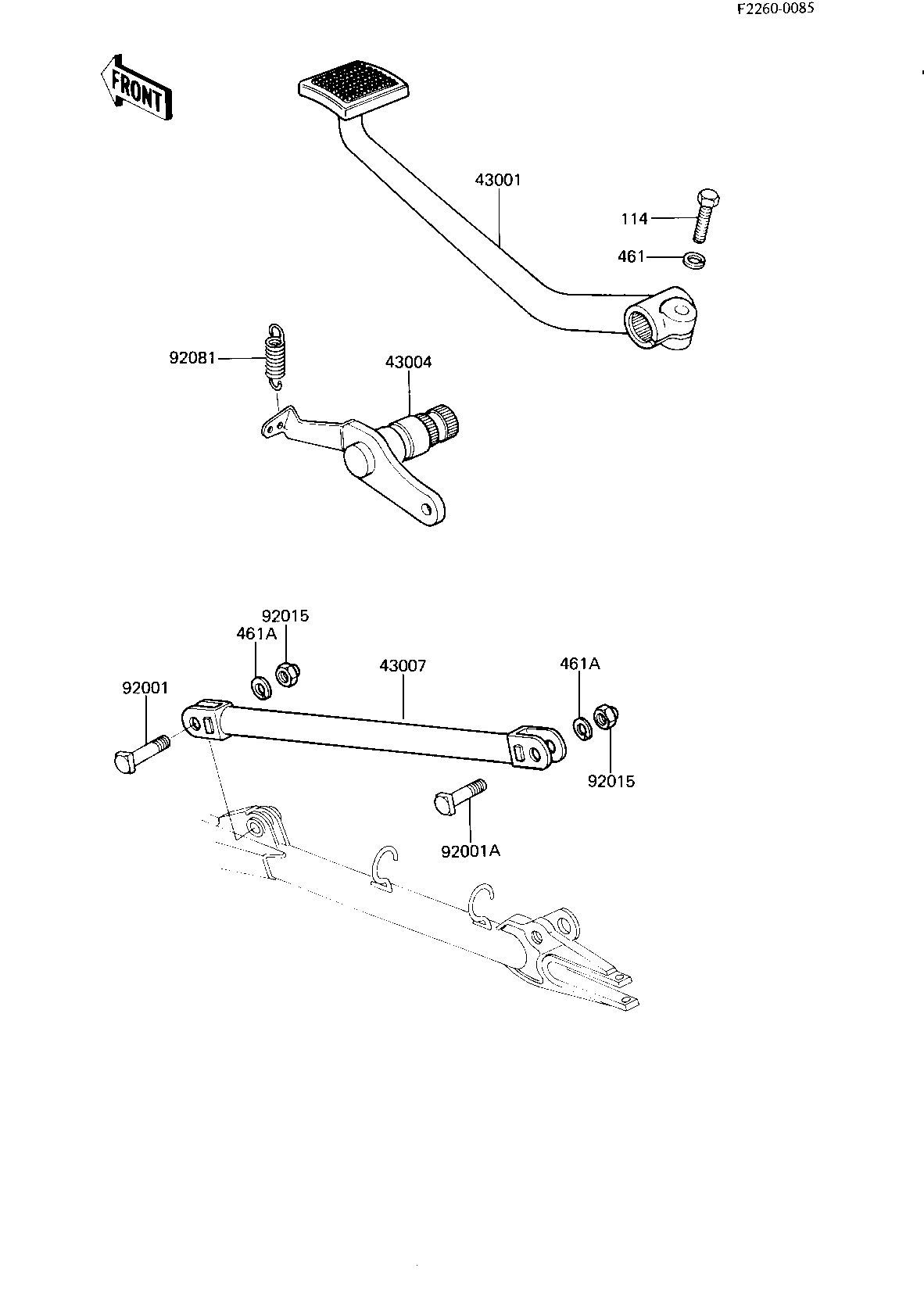

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1078 1
SHAFT-BRAKE 43004 43004-1036 1
TORQUE ROD,REAR BRAKE 43007 43007-1015 1
BOLT,10X41,BLACK 92001 92001-1684 1
BOLT,10X37 92001A 92001-1646 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
SPRING,BRAKE PEDAL 92081 92081-1147 1
BOLT-SMALL,8X28,BLACK 114 114J0828 1
WASHER-SPRING,8MM,BLA 461 461K0800 1
WASHER-SPRING,10MM 461A 461K1000 2
