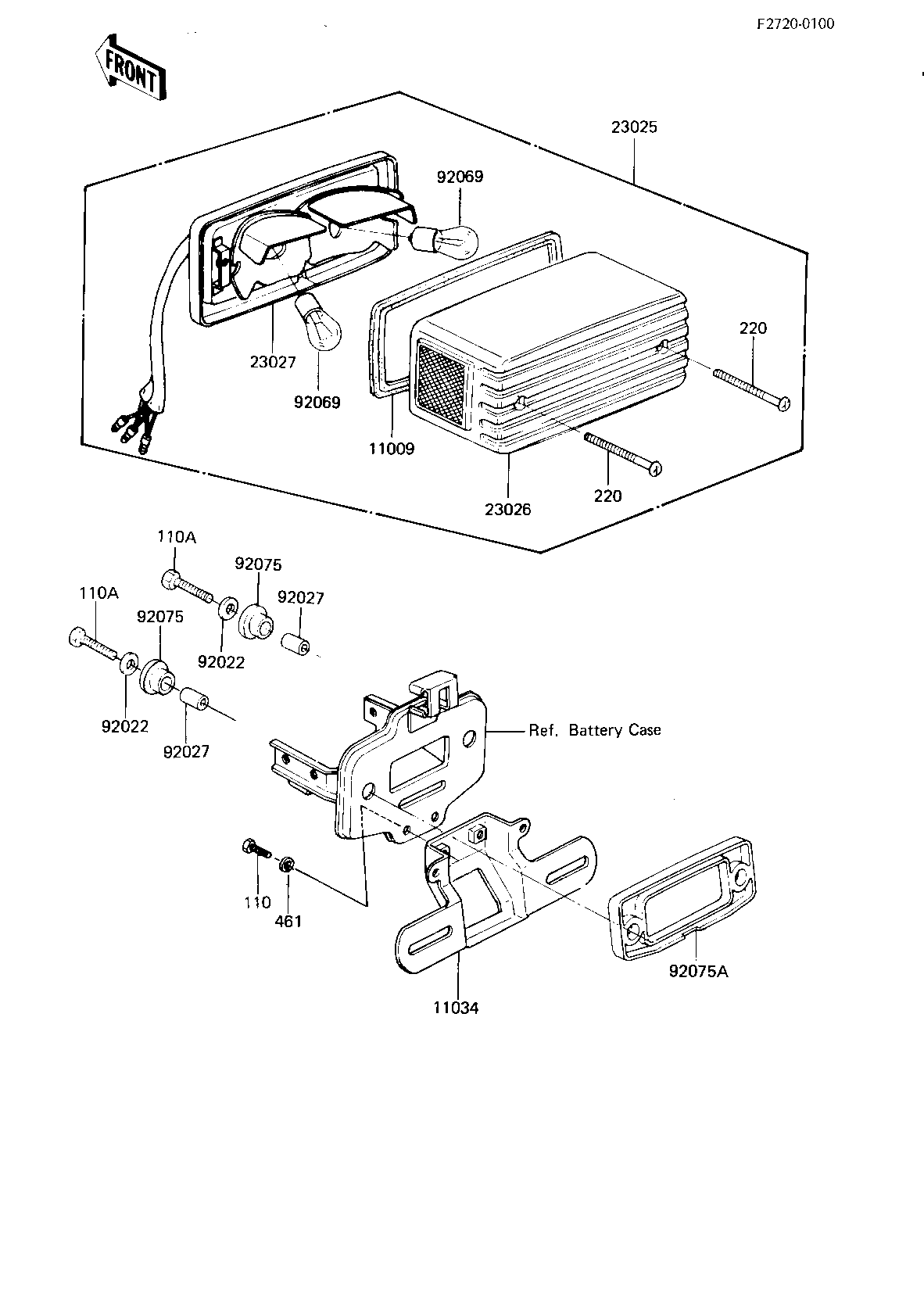

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP 11009 11009-1221 1
BRACKET 11034 11034-1922 1
LAMP-TAIL,BLACK 23025 23025-1038 1
LENS,TAIL LAMP 23026 23026-1021 1
BODY-COMP-TAIL LAMP,B 23027 23027-1025 1
WASHER 6.5X20X1.6T 92022 92022-125 2
COLLAR,6.8X10X17.6 92027 92027-1316 2
BULB,12V 32/3CP 92069 92069-059 2
DAMPER RUBBER 92075 92075-1092 2
DAMPER 92075A 92075-1282 1
BOLT-UPSET,6X12 110 112G0612 2
BOLT-UPSET 110A 112G0625 2
SCREW-PAN-CROS 220 220C0465 2
WASHER SPRING 6MM 461 461F0600 2
