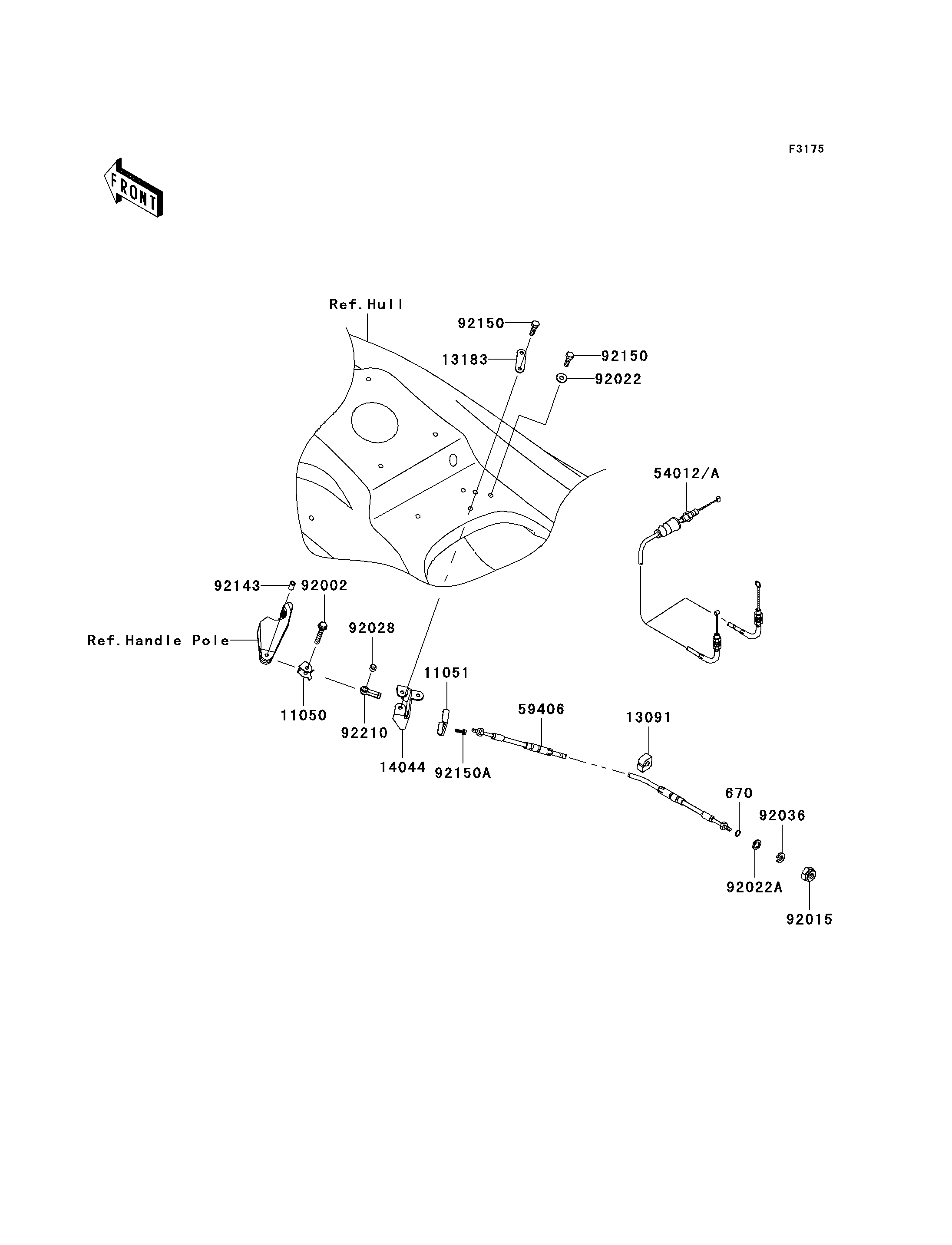

Parts Diagrams |
670
11050
11051
13091
13183
14044
54012A
59406
92002
92015
92022
92022A
92028
92036
92143
92150
92150
92150A
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| O RING,11MM | 670 | 670B2011 | 1 | ||
| BRACKET | 11050 | 11050-3767 | 1 | ||
| BRACKET | 11051 | 11051-3701 | 1 | ||
| HOLDER | 13091 | 13091-3712 | 1 | ||
| PLATE | 13183 | 13183-3809 | 1 | ||
| HOLDER-CABLE | 14044 | 14044-3736 | 1 | ||
| CABLE-THROTTLE | 54012A | 54012-3770 | 1 | ||
| CABLE-STRG | 59406 | 59406-3771 | 1 | ||
| BOLT,6X30 | 92002 | 92002-3726 | 1 | ||
| NUT,20MM | 92015 | 92015-526 | 1 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 1 | ||
| WASHER | 92022A | 92022-535 | 1 | ||
| BUSHING | 92028 | 92028-3769 | 1 | ||
| RING-SNAP | 92036 | 92036-501 | 1 | ||
| COLLAR,6.2X10X19 | 92143 | 92143-3733 | 1 | ||
| BOLT,6X20 | 92150 | 92150-3758 | 3 | ||
| BOLT,5X16 | 92150A | 92150-3778 | 1 | ||
| NUT | 92210 | 92210-3746 | 1 |
