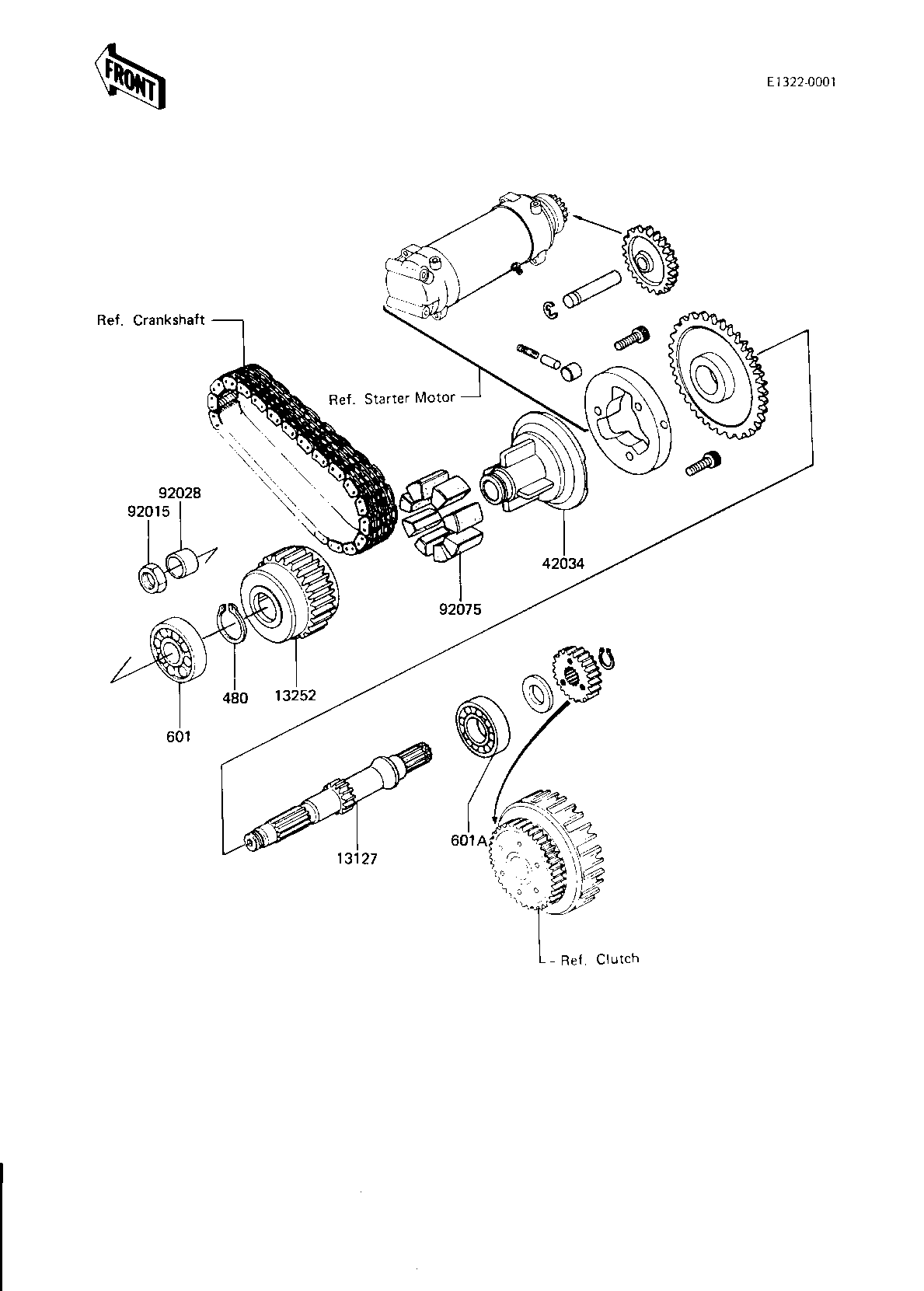

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,SECONDARY 13127 13127-1019 1
COUPLING,OUTER 13252 13252-001 1
COUPLING,INNER 42034 13253-001 1
NUT 18MM 92015 92015-019 1
BUSHING,SECONDARY 92028 92028-1037 1
DAMPER RUBBER 92075 92075-1227 8
CIRCLIP 28MM 480 480J2800 1
BEARING BALL #6205 601 601B6205 1
BEARING BALL #6305 601A 601B6305 1
