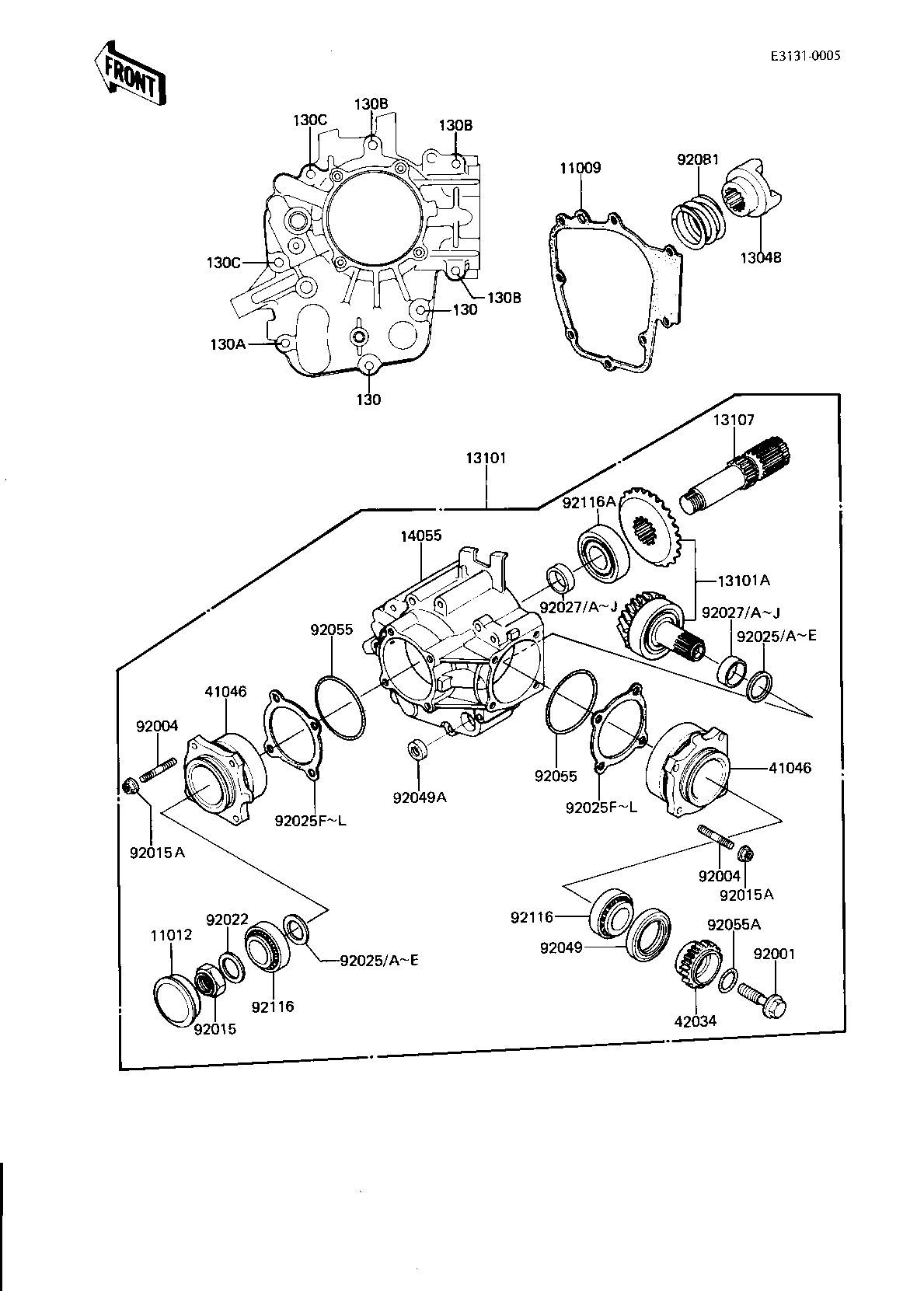

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,GEAR CASE | 11009 | 11060-1052 | 1 | ||
CAP | 11012 | 11012-1071 | 1 | ||
CAM-DAMPER,BEVEL GEA | 13048 | 13048-1013 | 1 | ||
GEAR-ASSY,BEVEL,FR | 13101 | 13101-1019 | 1 | ||
GEAR-ASSY,FRONT BEVE | 13101A | 13101-5034 | 1 | ||
SHAFT,BEVEL GEAR,FR | 13107 | 13107-1032 | 1 | ||
CASE-GEAR,BEVEL,FR | 14055 | 14055-1006 | 1 | ||
HOUSING-BEARING,FR | 41046 | 41046-1014 | 2 | ||
COUPLING,FR DRIVEN | 42034 | 42034-1091 | 1 | ||
BOLT,12X42 | 92001 | 92001-1169 | 1 | ||
STUD | 92004 | 92004-059 | 8 | ||
NUT,20M/M | 92015 | 92015-1065 | 1 | ||
NUT-6MM | 92015A | 92015-1078 | 8 | ||
WASHER,PLAIN,2.3X20. | 92022 | 92022-1116 | 1 | ||
SHIM,1.70T | 92025 | 92025-1072 | AR | ||
SHIM,1.72T | 92025A | 92025-1073 | AR | ||
SHIM,1.74T | 92025B | 92025-1074 | AR | ||
SHIM,1.76T | 92025C | 92025-1075 | AR | ||
SHIM,1.78T | 92025D | 92025-1076 | AR | ||
SHIM,1.80T | 92025E | 92025-1077 | AR | ||
SHIM,T=0.10 | 92025F | 92025-1258 | AR | ||
SHIM,T=0.15 | 92025G | 92025-1259 | AR | ||
SHIM,T=0.20 | 92025H | 92025-1260 | AR | ||
SHIM,T=0.30 | 92025I | 92025-1261 | AR | ||
SHIM,T=0.60 | 92025J | 92025-1262 | AR | ||
SHIM,T=0,90 | 92025K | 92025-1263 | AR | ||
SHIM,T=1.20 | 92025L | 92025-1264 | AR | ||
COLLAR,25.2X29.8X10. | 92027 | 92027-1401 | AR | ||
COLLAR,25.2X29.8X10. | 92027A | 92027-1402 | AR | ||
COLLAR,25.2X29.8X10. | 92027B | 92027-1403 | AR | ||
COLLAR,25.2X29.8X10. | 92027C | 92027-1404 | AR | ||
COLLAR,25.2X29.8X10. | 92027D | 92027-1405 | AR | ||
COLLAR,25.2X29,8X10. | 92027E | 92027-1406 | AR | ||
COLLAR,25X2X29,8X10. | 92027F | 92027-1407 | AR | ||
COLLAR,25.2X29.8X10. | 92027G | 92027-1408 | AR | ||
COLLAR,25.2X29.8X11. | 92027H | 92027-1409 | AR | ||
COLLAR,25.2X29.8X11. | 92027I | 92027-1410 | AR | ||
COLLAR,25.2X29.8X11. | 92027J | 92027-1411 | AR | ||
OIL SEAL,TC35527 | 92049 | 92049-1038 | 1 | ||
OIL SEAL,TB13225.5 | 92049A | 92051-005 | 1 | ||
"0" RING,65MM | 92055 | 671B2565 | 2 | ||
"0" RING,I.D=18.64MM | 92055A | 92055-1044 | 1 | ||
SPRING,CAM DAMPER | 92081 | 92081-1425 | 1 | ||
BEARING | 92116 | 92116-1003 | 2 | ||
BRG,ROLLER,4T-30305 | 92116A | 92116-1006 | 1 | ||
BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
BOLT,FLANGED,6X40 | 130A | 130G0640 | 1 | ||
BOLT-FLANGED,6X75 | 130B | 130G0675 | 3 | ||
BOLT-FLANGED,6X90 | 130C | 130G0690 | 2 |
