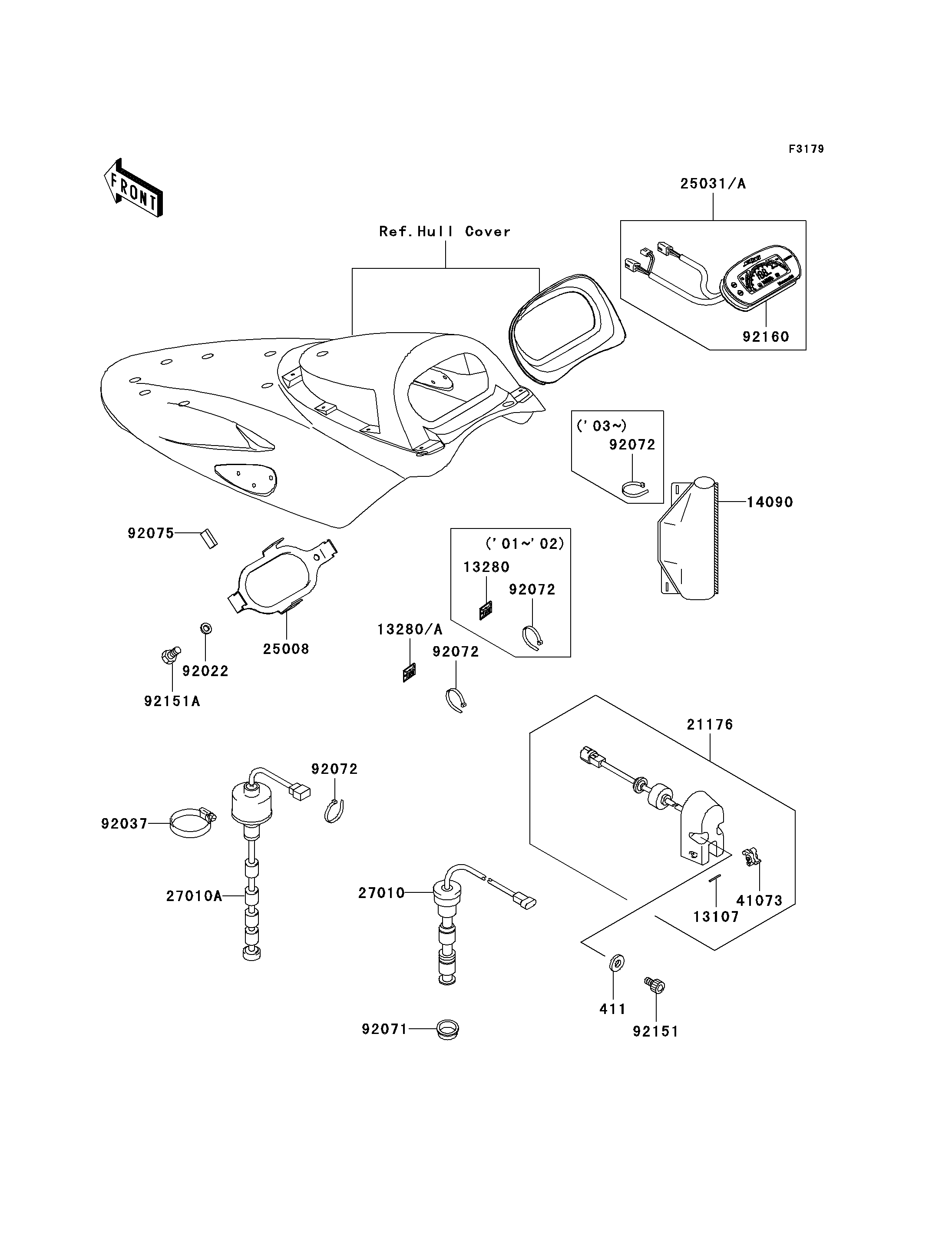

Parts Diagrams |
411
13107
13280A
14090
21176
25008
25031
27010
27010A
41073
92022
92037
92071
92072
92072
92072
92072
92075
92151
92151A
92160
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN,6MM | 411 | 411S0600 | 2 | ||
| SHAFT | 13107 | 13107-3754 | 1 | ||
| HOLDER | 13280A | 13280-3739 | 1 | ||
| COVER,COUPLER | 14090 | 14090-1611 | 1 | ||
| SENSOR,SPEEDOMETER,J.WHITE | 21176 | 21176-3732-8U | 1 | ||
| BRACKET-METER | 25008 | 25008-3709 | 1 | ||
| METER-ASSY,MILE | 25031 | 25031-3724 | 1 | ||
| SWITCH,OIL LEVEL | 27010 | 27010-3765 | 1 | ||
| SWITCH,FUEL LEVEL | 27010A | 27010-3775 | 1 | ||
| WHEEL-ASSY,PADDLE | 41073 | 41073-3701 | 1 | ||
| WASHER,5X16X1.5 | 92022 | 92022-3041 | 2 | ||
| CLAMP | 92037 | 92037-3009 | 1 | ||
| GROMMET | 92071 | 92071-3824 | 1 | ||
| BAND,L=188 | 92072 | 92072-1239 | 3 | ||
| DAMPER | 92075 | 92075-1446 | 4 | ||
| BOLT,6X10 | 92151 | 92151-3704 | 2 | ||
| BOLT,5X10 | 92151A | 92151-3707 | 2 | ||
| DAMPER,METER | 92160 | 92160-3881 | 1 |
| WASHER-PLAIN,6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SHAFT | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13280A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,COUPLER | |
| REF # | 14090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SENSOR,SPEEDOMETER,J.WHITE | |
| REF # | 21176 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER-ASSY,MILE | |
| REF # | 25031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,OIL LEVEL | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,FUEL LEVEL | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WHEEL-ASSY,PADDLE | |
| REF # | 41073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5X16X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,L=188 | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,5X10 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
