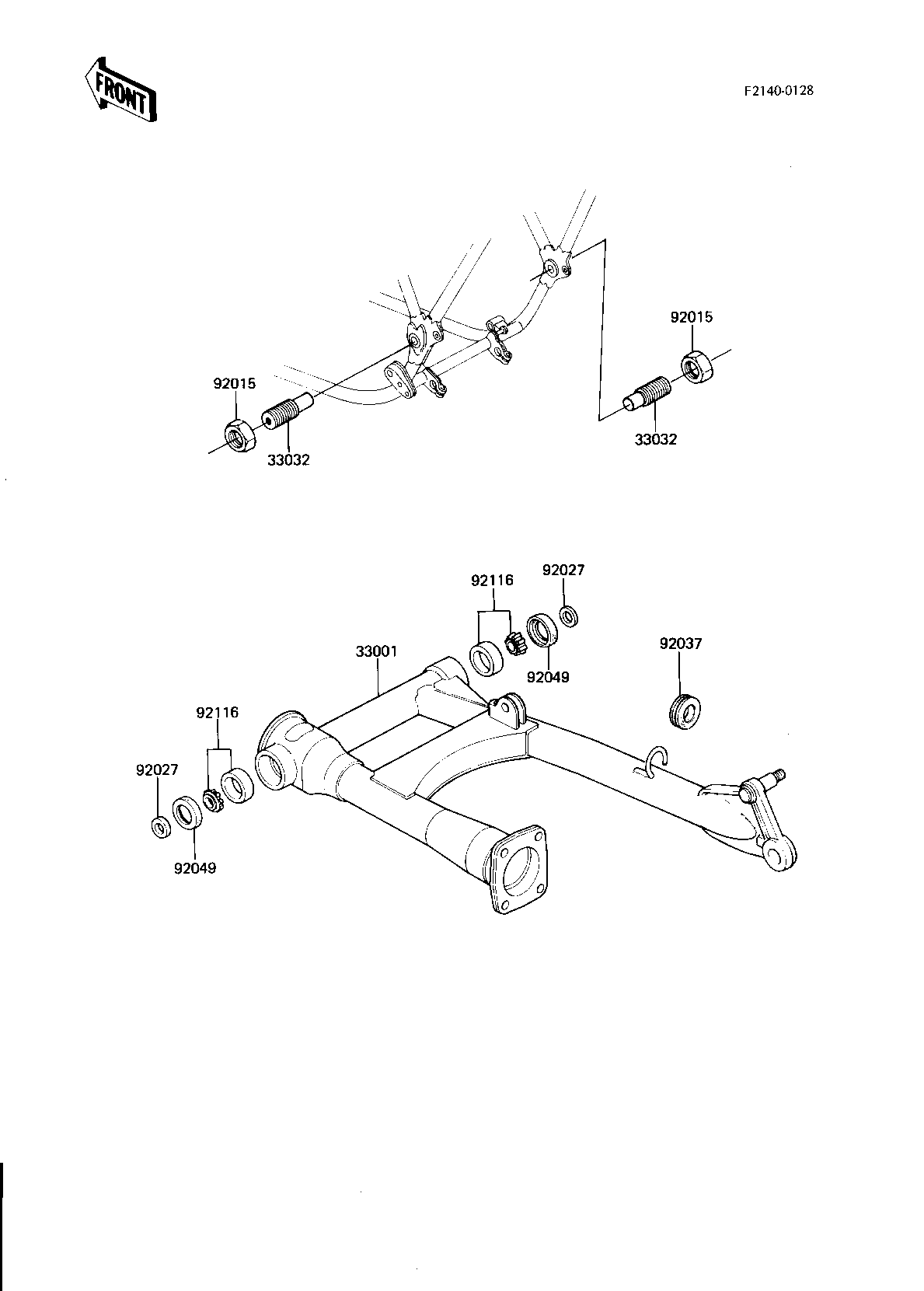

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-COMP-SWING 33001 33001-1128 1
SHAFT-SWING ARM 33032 33032-1025 2
NUT,22MM 92015 92015-1167 2
COLLAR,17X26X4.5 92027 92027-1394 2
DAMPER RUBBER 92037 43064-007 1
OIL SEAL,26406 92049 92049-1030 2
BRG,ROLLER,4T30203E1 92116 92116-1001 2
