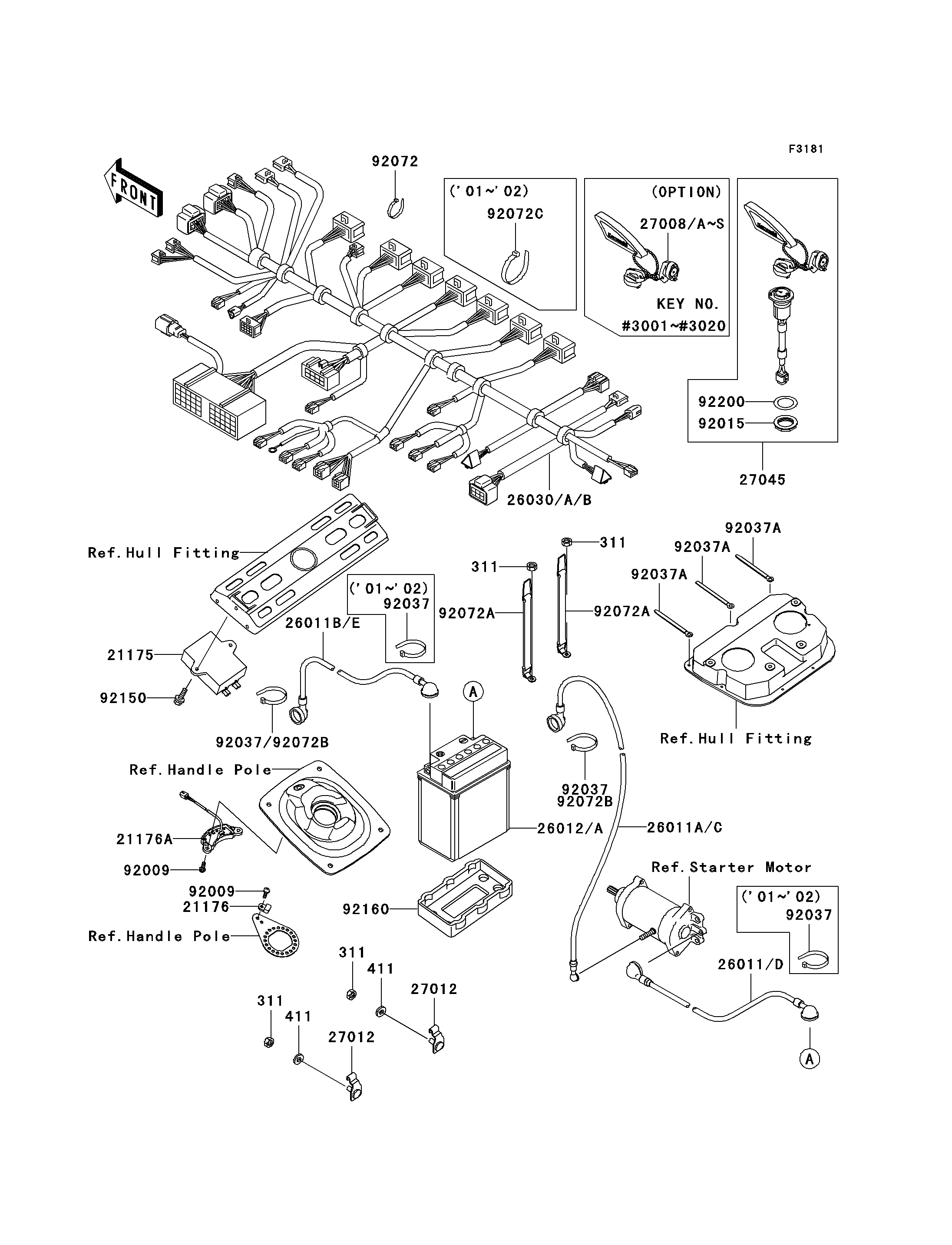

2003 Ultra 130 - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
21175
21175
21176
21176
21176A
21176A
26011A
26011A
26011D
26011D
26011E
26011E
26012
26012
26030B
26030B
27008
27008
27008A
27008A
27008B
27008B
27008C
27008C
27008D
27008D
27008E
27008E
27008F
27008F
27008G
27008G
27008H
27008H
27008I
27008I
27008J
27008J
27008K
27008K
27008L
27008L
27008M
27008M
27008N
27008N
311
311
311
311
311
311
311
311
411
411
411
411
27008O
27008O
27008P
27008P
27008Q
27008Q
27008R
27008R
27008S
27008S
27012
27012
27012
27012
27045
27045
92009
92009
92009
92009
92015
92015
92037A
92037A
92037A
92037A
92037A
92037A
92072
92072
92072A
92072A
92072A
92072A
92072B
92072B
92072B
92072B
92150
92150
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CONTROL UNIT-ELECTRONIC,TRIM 21175 21175-3723 1
SENSOR,MAGNET 21176 21176-3746 1
SENSOR,HOLE IC 21176A 21176-3748 1
WIRE-LEAD,RELAY-STARTER 26011A 26011-3852 1
WIRE-LEAD,BATTERY(-)-STARTER 26011D 26011-3902 1
WIRE-LEAD,BATTERY(+)-RELAY 26011E 26011-3905 1
BATTERY,YTX20L-BS,12V 18AH 26012 26012-3728 1
HARNESS,MAIN 26030B 26030-3760 1
KEY-LOCK,MAGNETIC SW,#3001 27008 27008-3745 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3002 27008A 27008-3746 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3003 27008B 27008-3747 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3004 27008C 27008-3748 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3005 27008D 27008-3749 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3006 27008E 27008-3750 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3007 27008F 27008-3751 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3008 27008G 27008-3752 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3009 27008H 27008-3753 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3010 27008I 27008-3754 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3011 27008J 27008-3755 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3012 27008K 27008-3756 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3013 27008L 27008-3757 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3014 27008M 27008-3758 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3015 27008N 27008-3759 1 (OPTION)
NUT-HEX,6MM 311 311R0600 4
WASHER-PLAIN,6MM 411 411S0600 2
KEY-LOCK,MAGNETIC SW,#3016 27008O 27008-3760 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3017 27008P 27008-3761 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3018 27008Q 27008-3762 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3019 27008R 27008-3763 1 (OPTION)
KEY-LOCK,MAGNETIC SW,#3020 27008S 27008-3764 1 (OPTION)
HOOK 27012 27012-3818 2
SWITCH-ASSY,MAIN 27045 27045-3716 1
SCREW,5X16 92009 92009-3868 3
NUT 92015 92015-3848 1
CLAMP,L=100 92037A 92037-3736 3
BAND,L=188 92072 92072-1239 13
BAND,WATER MUFFLER 92072A 92072-3781 2
BAND,L=99 92072B 92072-3871 2
BOLT,6X20 92150 92150-3758 2
DAMPER 92160 92160-3929 1
WASHER 92200 92200-3736 1
