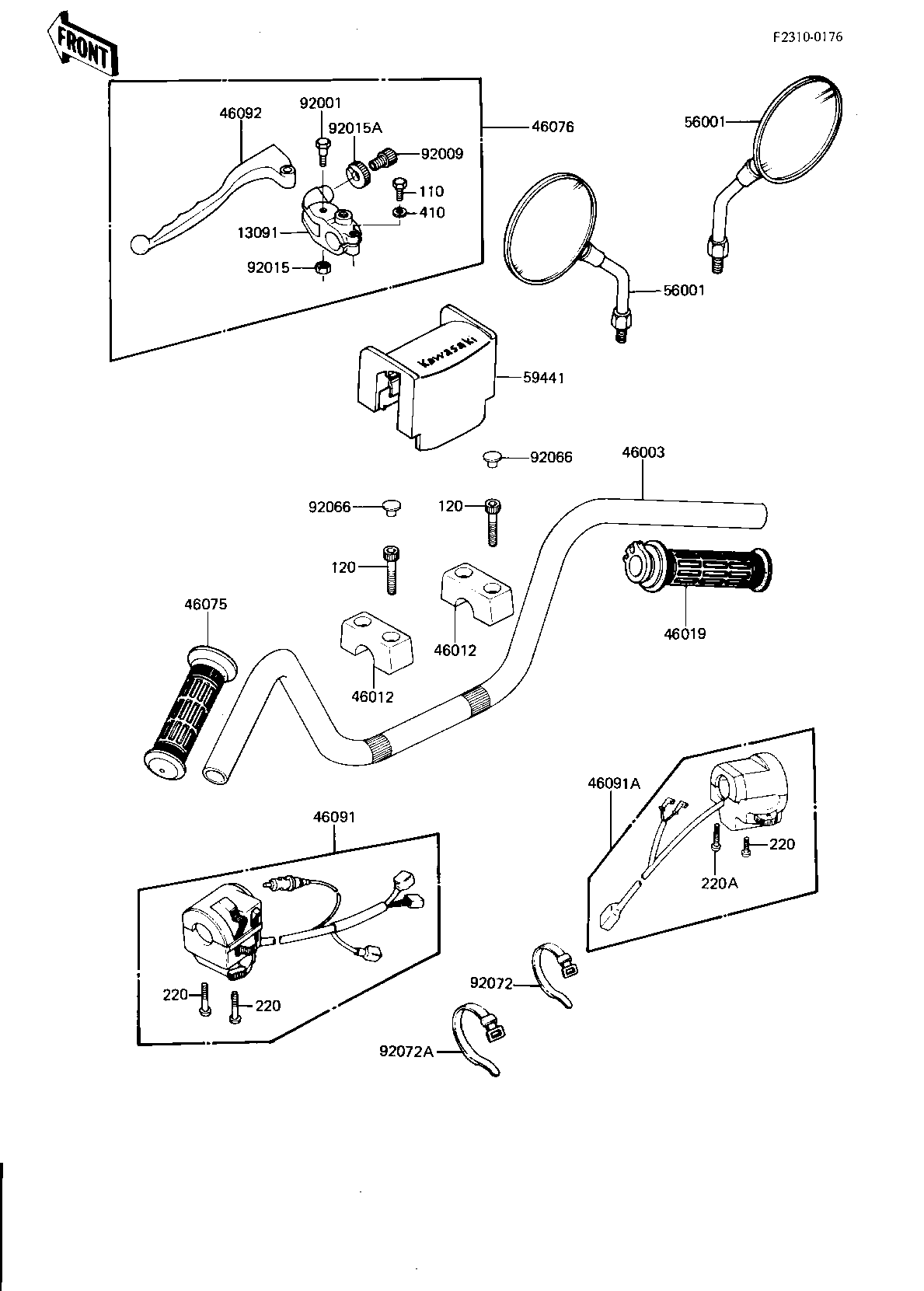

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
HOLDER,CLUTCH LEVER | 13091 | 13091-1046 | 1 | ||
HANDLEBAR | 46003 | 46003-1100 | 1 | ||
HOLDER-HANDLE | 46012 | 46012-1027 | 2 | ||
GRIP-ASSY,THROTTLE | 46019 | 46019-1015 | 1 | ||
GRIP,LH | 46075 | 46075-1022 | 1 | ||
LEVER-ASSY-GRIP,CLUT | 46076 | 46076-1026 | 1 | ||
HOUSING-ASSY-CONTROL | 46091 | 46091-1237 | 1 | ||
HOUSING-ASSY-CONTROL | 46091A | 46091-1238 | 1 | ||
LEVER-GRIP,CLUTCH | 46092 | 46092-1024 | 1 | ||
MIRROR-ASSY | 56001 | 56001-1340 | 2 | ||
COVER-HANDLE | 59441 | 59441-1007 | 1 | ||
BOLT,CLUTCH LEVER,BL | 92001 | 92001-1548 | 1 | ||
SCREW,CABLE ADJUST,8 | 92009 | 92009-1134 | 1 | ||
NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
NUT,CABLE ADJUST LOC | 92015A | 92015-1197 | 1 | ||
PLUG,HANDLE HOLDER | 92066 | 92066-1216 | 4 | ||
BAND,SHORT | 92072 | 92072-030 | 1 | ||
BAND,MIDDLE | 92072A | 92072-031 | 4 | ||
BOLT,6X22,BLACK | 110 | 110C0622 | 1 | ||
BOLT-SOCKET,8X30,BLA | 120 | 120S0830 | 4 | ||
SCREW-PAN-CROS | 220 | 220B0535 | 3 | ||
SCREW-PAN-CROS | 220A | 220B0540 | 1 | ||
WASHER PLAIN | 410 | 410F0600 | 1 |
HOLDER,CLUTCH LEVER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HANDLEBAR | |
REF # | 46003 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-HANDLE | |
REF # | 46012 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GRIP-ASSY,THROTTLE | |
REF # | 46019 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GRIP,LH | |
REF # | 46075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-ASSY-GRIP,CLUT | |
REF # | 46076 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-ASSY-CONTROL | |
REF # | 46091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-ASSY-CONTROL | |
REF # | 46091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER-GRIP,CLUTCH | |
REF # | 46092 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
MIRROR-ASSY | |
REF # | 56001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COVER-HANDLE | |
REF # | 59441 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH LEVER,BL | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,CABLE ADJUST,8 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,LOCK,6MM,BLACK | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT,CABLE ADJUST LOC | |
REF # | 92015A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLUG,HANDLE HOLDER | |
REF # | 92066 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BAND,SHORT | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BAND,MIDDLE | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
BOLT,6X22,BLACK | |
REF # | 110 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-SOCKET,8X30,BLA | |
REF # | 120 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS | |
REF # | 220A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER PLAIN | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
