Parts Diagrams |

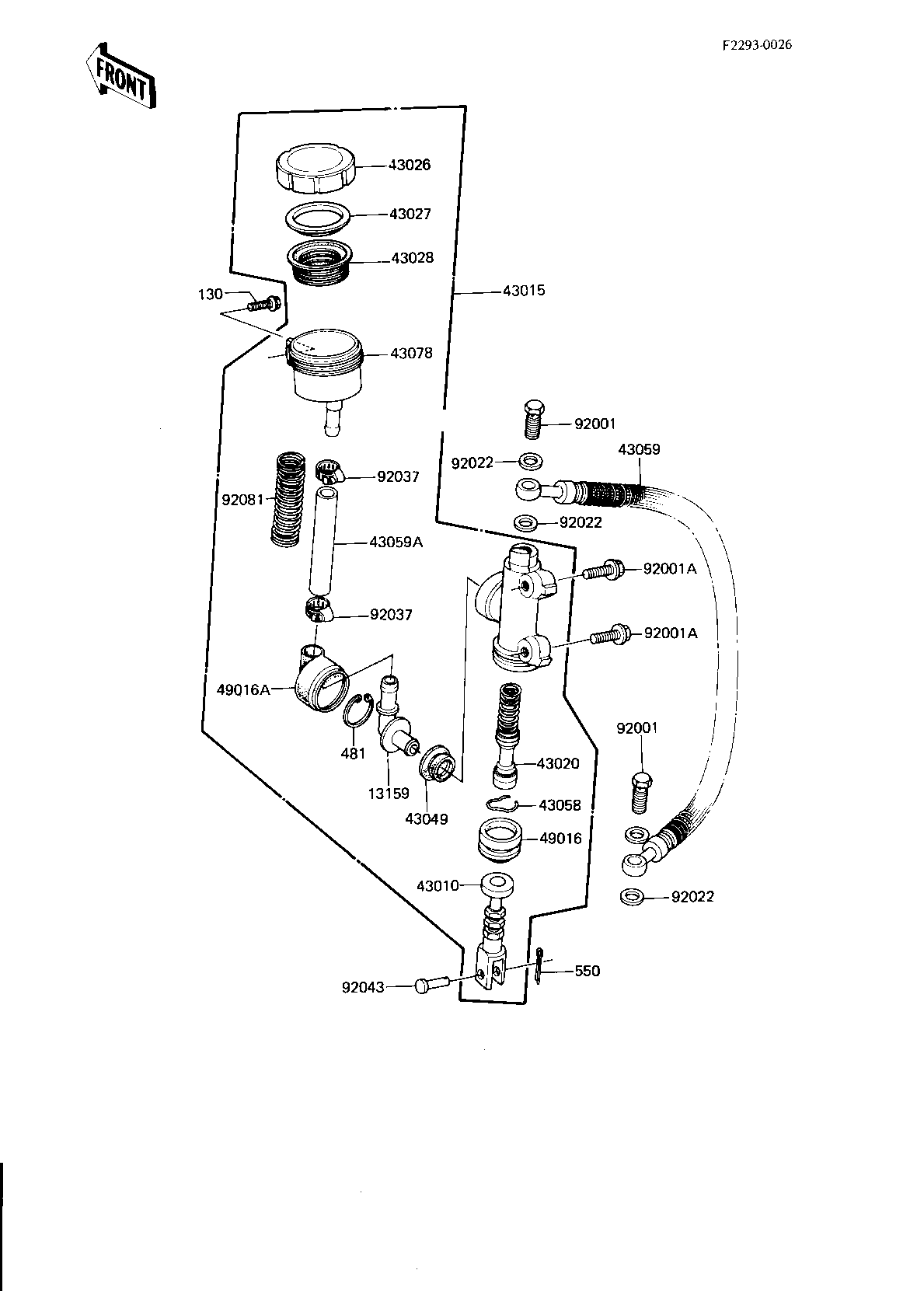

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CONNECTOR | 13159 | 13159-1009 | 1 | ||
ROD ASSY,BRAKE | 43010 | 43010-1004 | 1 | ||
CYLINDER-ASSY-MASTER | 43015 | 43015-1094 | 1 | ||
PISTON ASSY | 43020 | 43020-1019 | 1 | ||
CAP-BRAKE | 43026 | 43026-1016 | 1 | ||
PLATE,DIAPHRAGM | 43027 | 43027-1005 | 1 | ||
DIAPHRAGM | 43028 | 43028-1016 | 1 | ||
PACKING | 43049 | 43049-1008 | 1 | ||
RING,DUST SEAL | 43058 | 43058-004 | 1 | ||
HOSE-BRAKE,L=415 | 43059 | 43059-1186 | 1 | ||
HOSE-BRAKE,L=116 | 43059A | 43059-1140 | 1 | ||
RESERVOIR | 43078 | 43078-1009 | 1 | ||
UNAVAILABLE IN PRICE BOOK | 49016 | 49016-103T | 1 | ||
COVER-SEAL | 49016A | 49016-1034 | 1 | ||
BOLT,OIL,L=23 | 92001 | 92002-1888 | 2 | ||
BOLT,FLANGED,8X28,BL | 92001A | 92001-1508 | 2 | ||
WASHER-OIL BOLT | 92022 | 43067-001 | 4 | ||
CLAMP,BRAKE HOSE | 92037 | 92037-1154 | 2 | ||
PIN | 92043 | 92043-1013 | 1 | ||
SPRING HOSE PROTECTE | 92081 | 92081-1335 | 1 | ||
BOLT,FLANGED,6X20 | 130 | 130B0620 | 1 | ||
CIRCRIP-TYPE-C | 481 | 481J2500 | 1 | ||
PIN COTTER 2.0X15 | 550 | 550D2015 | 1 |
CONNECTOR | |
REF # | 13159 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD ASSY,BRAKE | |
REF # | 43010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CYLINDER-ASSY-MASTER | |
REF # | 43015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON ASSY | |
REF # | 43020 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BRAKE | |
REF # | 43026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,DIAPHRAGM | |
REF # | 43027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DIAPHRAGM | |
REF # | 43028 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PACKING | |
REF # | 43049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RING,DUST SEAL | |
REF # | 43058 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,L=415 | |
REF # | 43059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOSE-BRAKE,L=116 | |
REF # | 43059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RESERVOIR | |
REF # | 43078 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
UNAVAILABLE IN PRICE BOOK | |
REF # | 49016 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER-SEAL | |
REF # | 49016A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,OIL,L=23 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,8X28,BL | |
REF # | 92001A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-OIL BOLT | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
CLAMP,BRAKE HOSE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING HOSE PROTECTE | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,FLANGED,6X20 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CIRCRIP-TYPE-C | |
REF # | 481 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN COTTER 2.0X15 | |
REF # | 550 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
