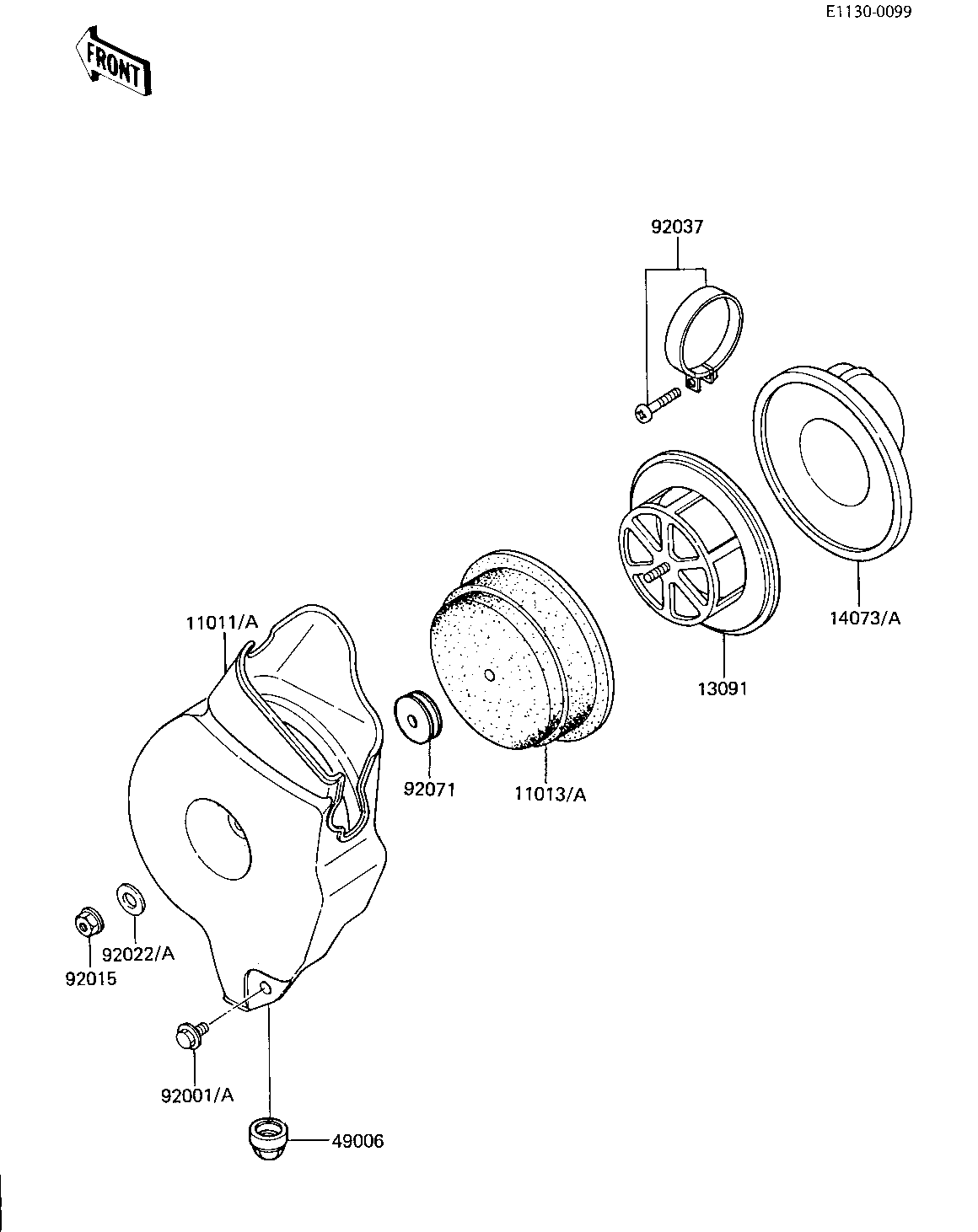

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER 11011A 11011-1154 1
ELEMENT-AIR FILTER 11013A 11013-1106 1
HOLDER,AIR FILTER ELE 13091 13091-1143 1
DUCT,AIR FILTER 14073A 14073-1154 1
BOOT,AIR FILTER 49006 49006-1156 1
BOLT,W/WASHER,6X12 92001A 92001-1517 1
NUT-6MM 92015 92015-1078 1
WASHER 6.5X20X1.6T 92022A 92022-125 1
CLAMP 92037 92037-1172 1
GROMMET,AIR FILTER 92071 92071-1053 1
