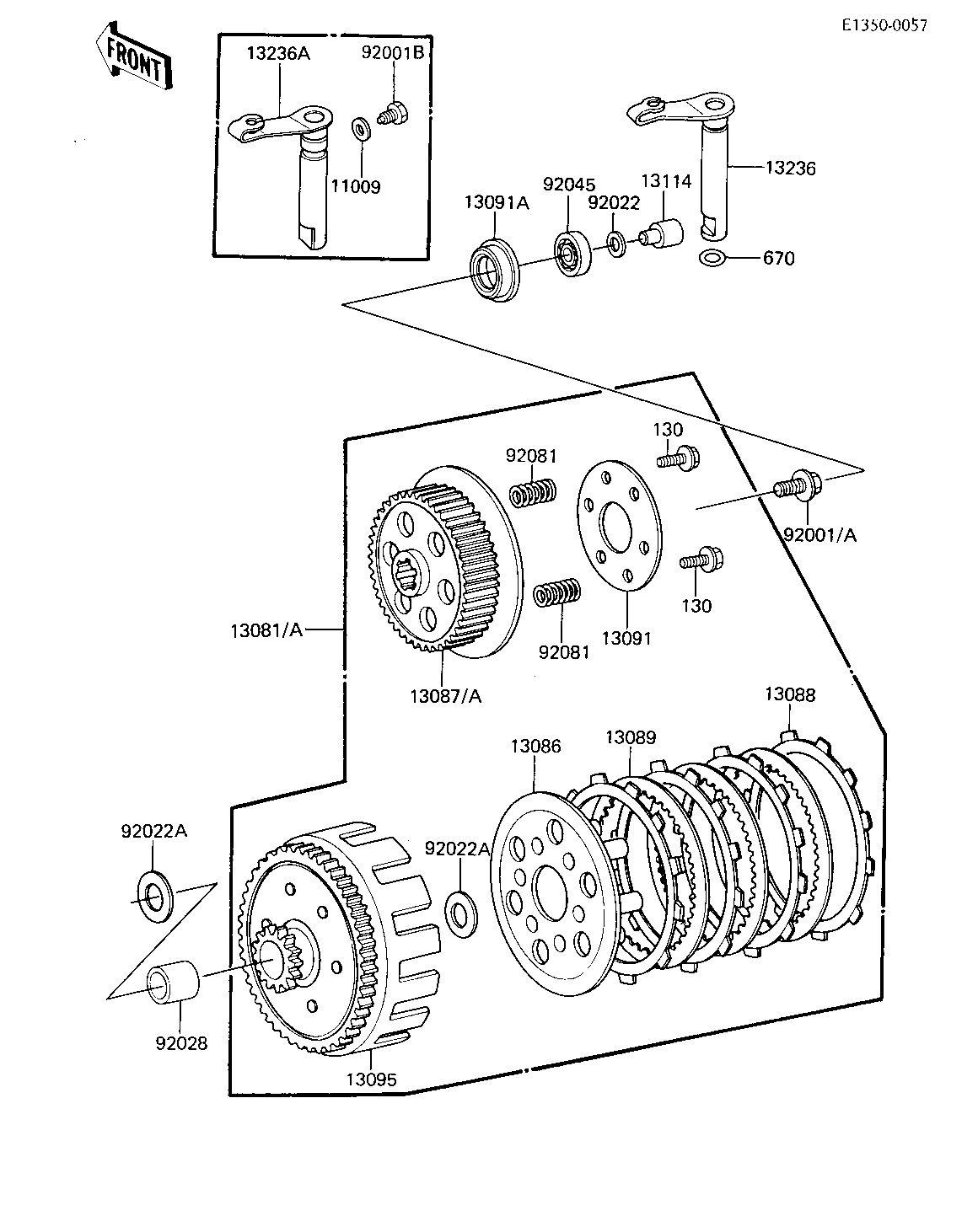

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,R.H ENG COVER | 11009 | 92065-092 | 1 | ||
CLUTCH-ASSY | 13081A | 13081-1152 | 1 | ||
WHEEL,CLUTCH | 13086 | 13086-1002 | 1 | ||
HUB-CLUTCH | 13087A | 13087-1051 | 1 | ||
PLATE,CLUTCH FRICTION | 13088 | 13088-1010 | 5 | ||
PLATE-CLUTCH,STEEL | 13089 | 13089-1009 | 4 | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1115 | 1 | ||
HOLDER,CLUTCH PUSHER | 13091A | 13091-1133 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1042 | 1 | ||
PUSHER,CLUTCH | 13114 | 13114-1008 | 1 | ||
LEVER-COMP,CLUTCH REL | 13236A | 13236-1108 | 1 | ||
BOLT | 92001A | 92002-1697 | 1 | ||
BOLT,CLUTCH RELEASE | 92001B | 92003-130 | 1 | ||
WASHER,7X12.5X0.8 | 92022 | 92022-1290 | AR | ||
WASHER,17.3X28X1.0 | 92022A | 92022-255 | 2 | ||
BUSHING,17X22X21.1 | 92028 | 92028-1149 | 1 | ||
BEARING,BALL #627 | 92045 | 92045-026 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-1143 | 6 | ||
BOLT-FLANGED | 130 | 130P0520 | 6 | ||
"O" RING,9MM | 670 | 670B1509 | 1 |
