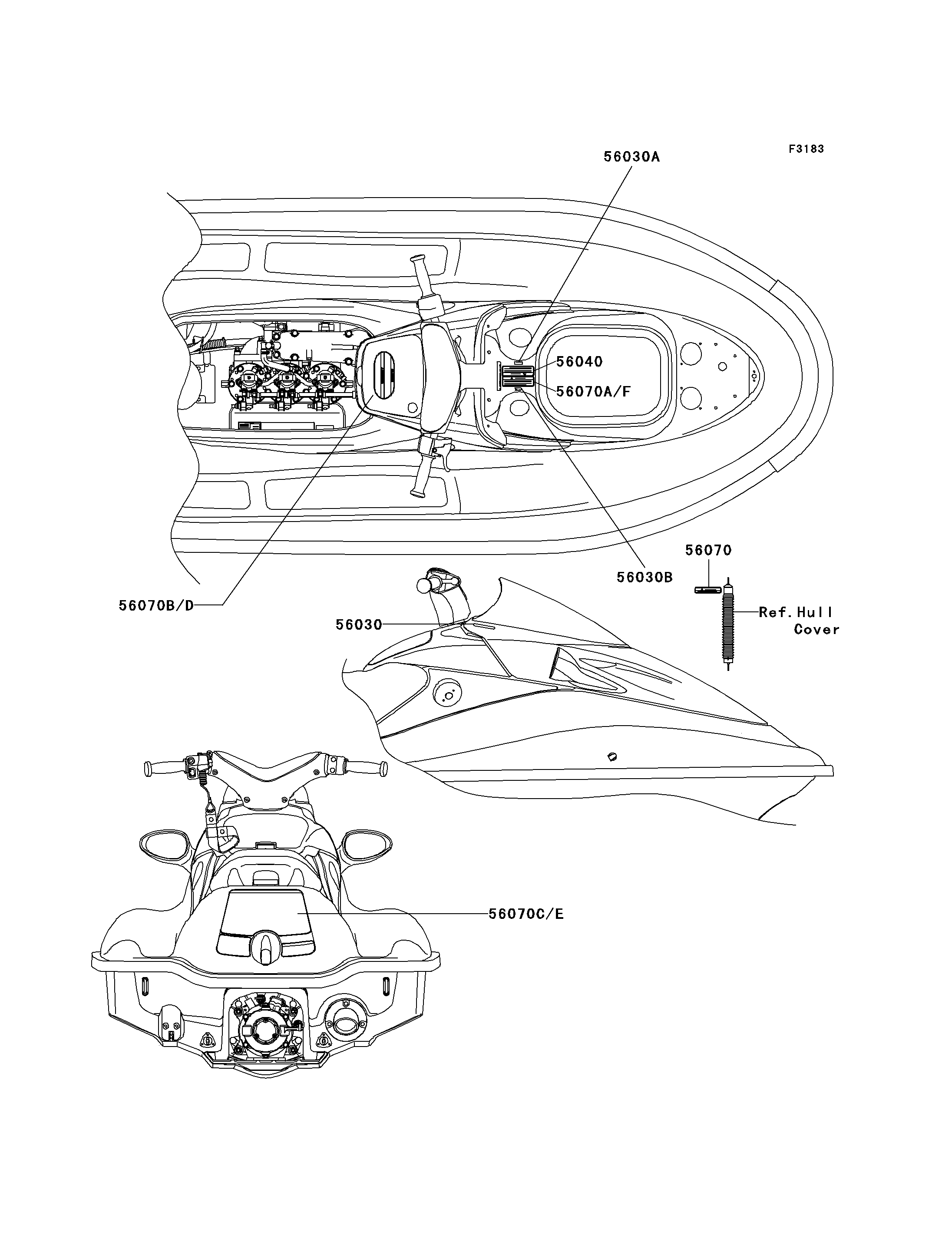

56030
56030A
56030B
56040
56070
56070D
56070E
56070F
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,FIRE EXTINGUISHER 56030 56030-3769 2
LABEL,GASOLINE 56030A 56030-3827 1
LABEL,OIL 56030B 56030-3828 1
LABEL-WARNING,GASOLINE 56040 56040-3972 1
LABEL-WARNING,DAMPER 56070 56070-3876 1
LABEL-WARNING,MAIN SWITCH 56070D 56070-3951 1
LABEL-WARNING,IMPORTANT SAFETY 56070E 56070-3952 1
LABEL-WARNING,BREAK IN 56070F 56070-3961 1
