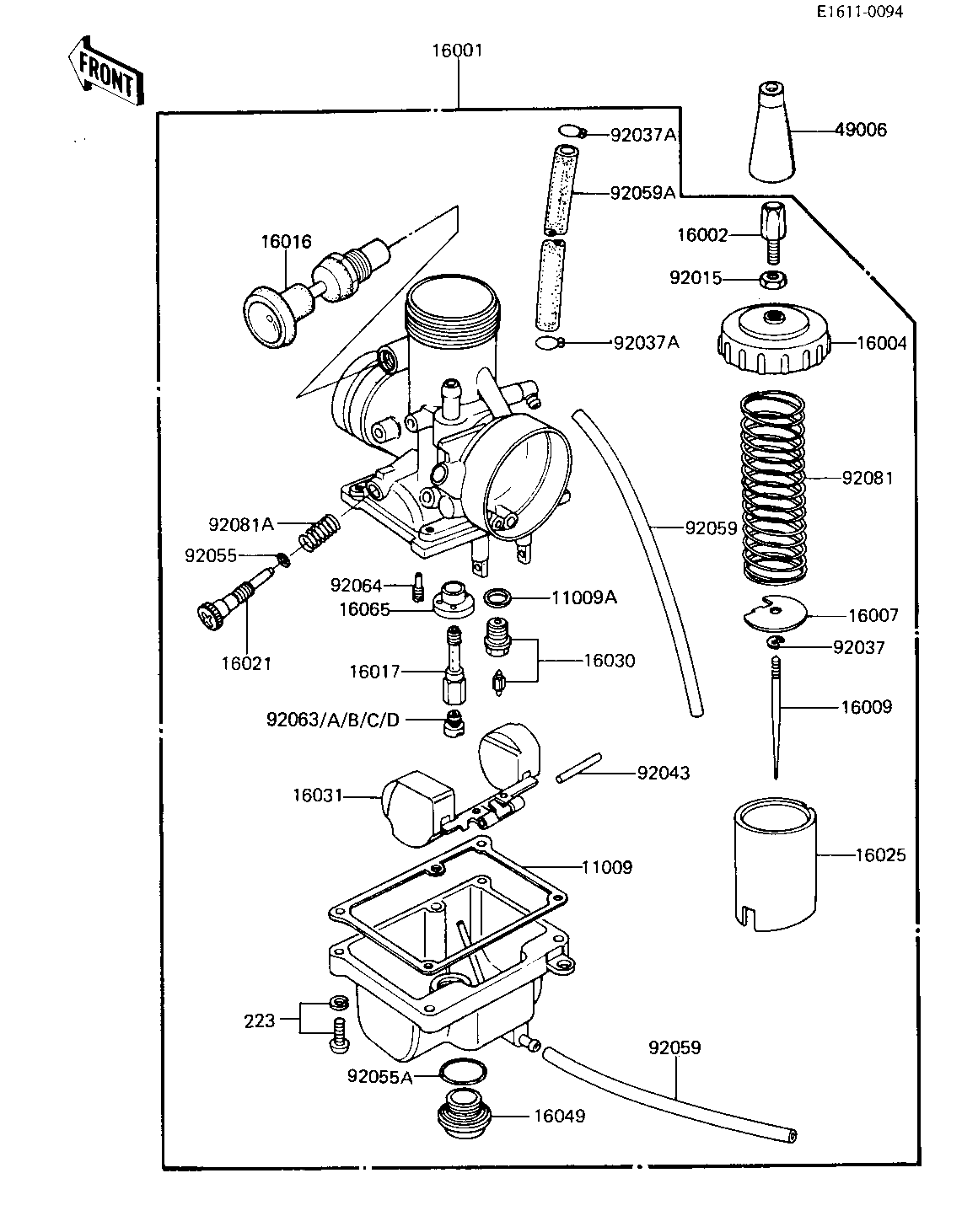

1984 KX60 - CARBURETOR (KX60-A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FLOAT CHAMBER 11009 11009-1147 1
WASHER FLOAT VLV SEAT 11009A 16029-004 1
CARBURETOR 16001 16001-1548 1
ADJUSTER,CABLE 16002 16002-017 1
CAP,MIXING CHAMBER 16004 16004-025 1
SPRING SEAT,THRTL VL 16007 16007-023 1
NEEDLE-JET,5113-2 16009 16009-1128 1
PLUNGER 16016 16016-1027 1
JET NEEDLE, 0-2 16017 16017-1123 1
SCREW-THROTTLE STOP 16021 16021-1042 1
VALVE,THROTTLE,C.A1.5 16025 16025-1028 1
FLOAT VALVE ASSY 16030 16030-005 1
FLOAT 16031 16031-1005 1
COVER,MAIN JET 16049 16049-1001 1
HOLDER,NEEDLE JET 16065 16065-1020 1
CAP,CARBURETOR 49006 16036-007 1
NUT-CABLE ADJUST LOCK 92015 16003-006 1
CIRCLIP 92037 16008-010 1
CLAMP-PIPE 92037A 92037-072 2
FLOAT PIN 92043 16032-003 1
"0" RING 92055 92055-044 1
"0" RING,MAIN JET COV 92055A 92055-1061 1
TUBE,3X5X300 92059 92059-1755 2
TUBE,5.3X10.5X150 92059A 92059-1129 1
MAIN JET NO 125R 92063 92063-055 1
JET-MAIN,#A127.5 92063A 92063-1100 1
MAIN JET NO 130R 92063B 92063-057 1
MAIN JET NO 120R 92063C 92063-078 1
JET-MAIN,#A122.5 92063D 92063-1101 1
JET-PILOT,#45 92064 92064-1060 1
SPRING,THROTTLE VALV 92081 16006-023 1
SPRING,THROTTLE ADJST 92081A 92081-1152 1
SCREW-PAN-WS-CROS 223 223B0416 4
