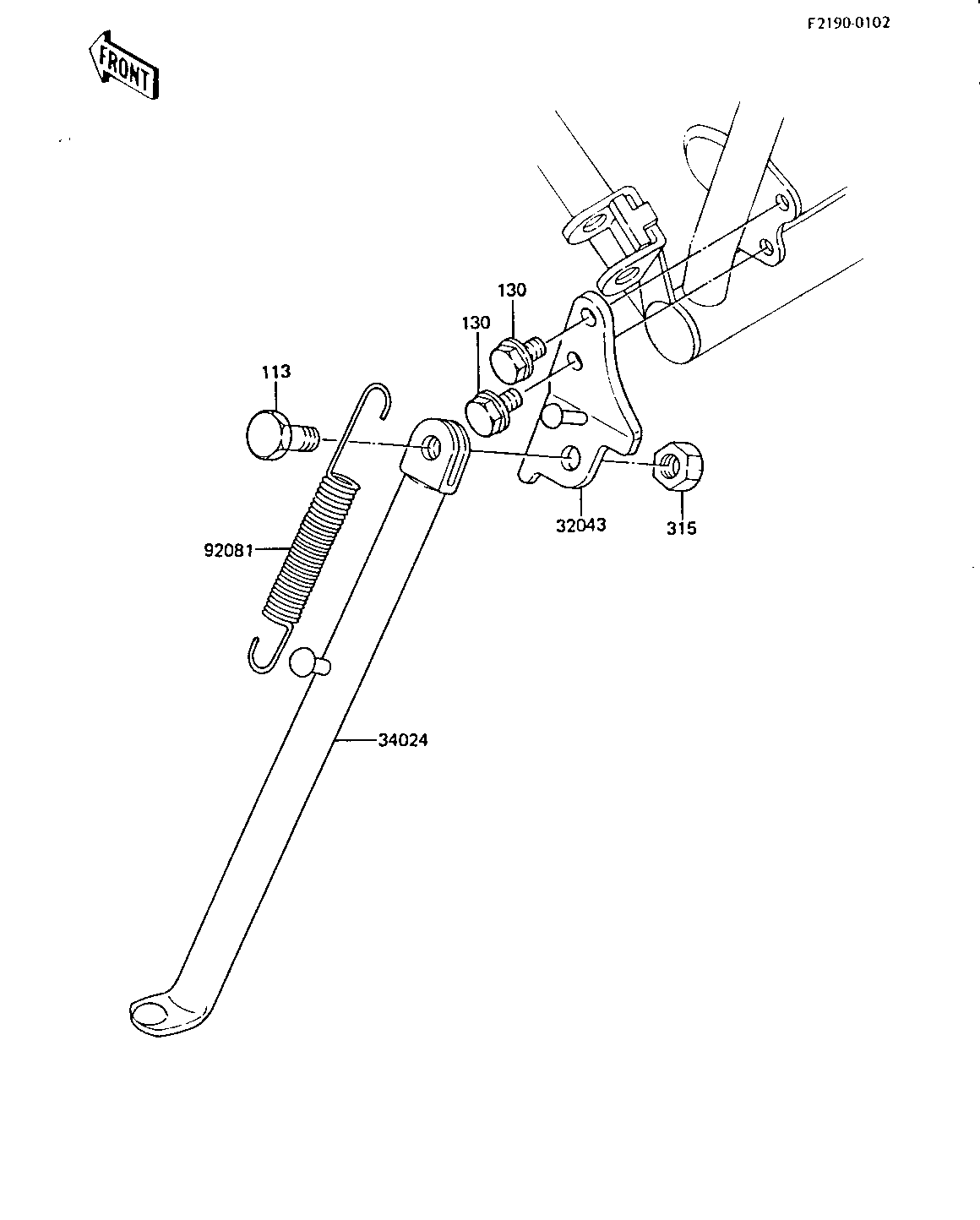

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND,SIDE 32043 32043-1113 1
STAND-SIDE 34024 34024-1102 1
SPRING,SIDE STAND 92081 34025-005 1
BOLT,HEX HEAD,10X25 113 113G1025 1
BOLT-FLANGED,8X12 130 130G0812 2
NUT 10MM 315 315B1000 1
