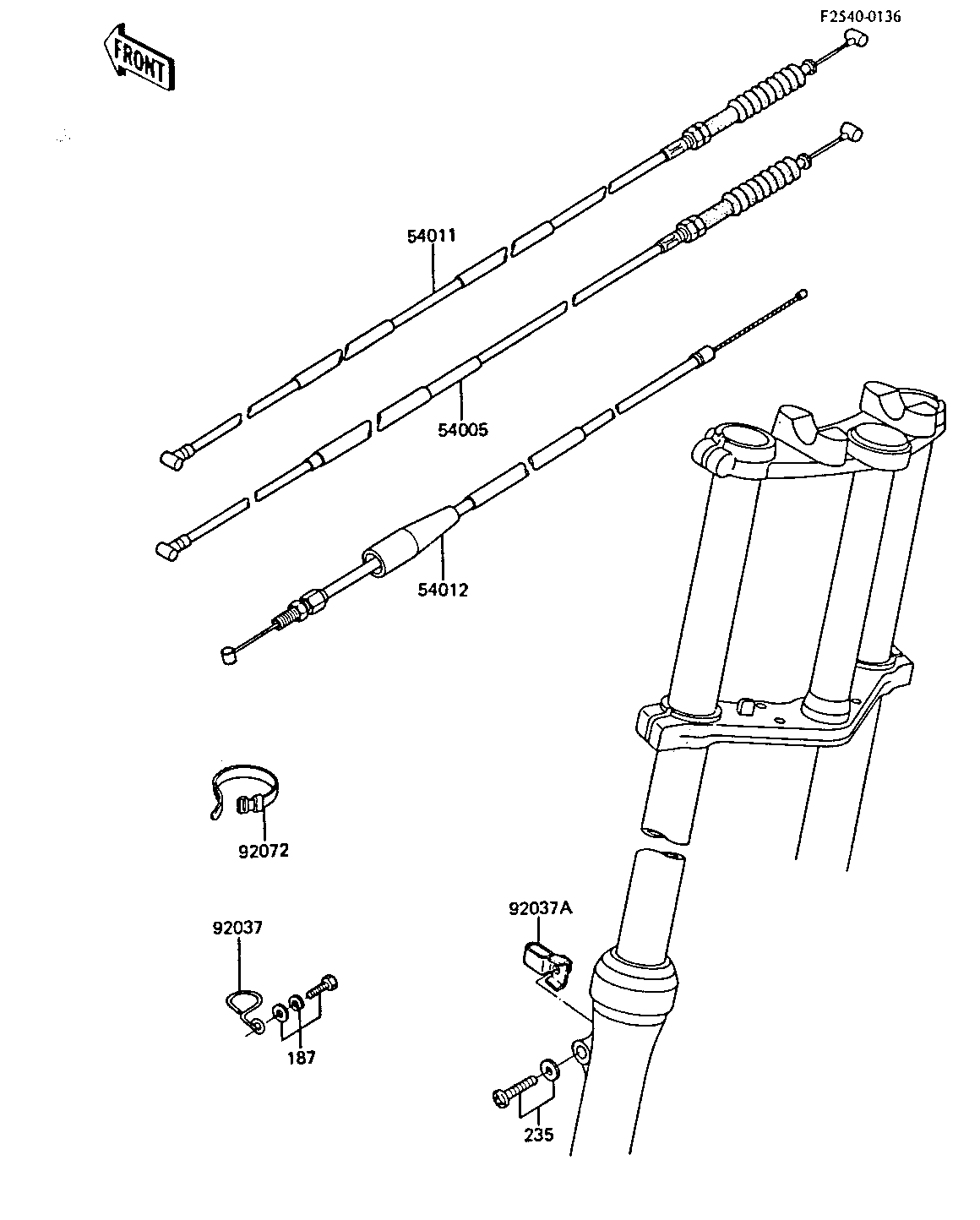

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CABLE-BRAKE 54005 54005-1046 1
CABLE-CLUTCH 54011 54011-1114 1
CABLE-THROTTLE 54012 54012-1137 1
CLAMP,CABLE 92037 92037-092 1
CLAMP,BRAKE CABLE 92037A 92037-1353 1
BAND,LONG 92072 92072-032 1
BOLT 6X12 187 187B0612 1
SCREW-PAN-WP-CROS 235 235B0616 1
