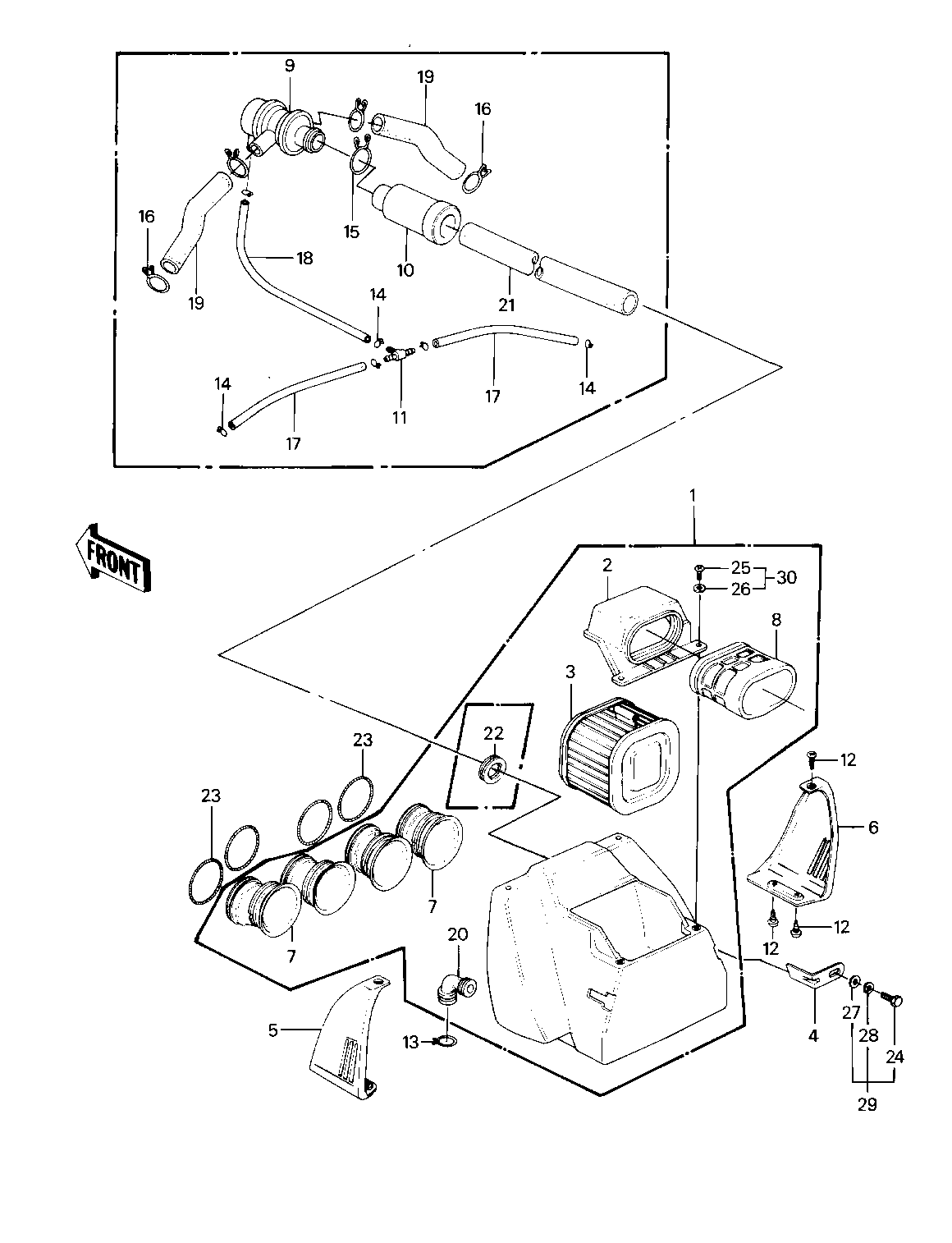

1982 Police 1000 - AIR CLEANER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR 1 11010-1142 1 KZ1000-P1/P2/P
FILTER-ASSY-AIR 1 11010-1142 1 KZ1000-P4/P5
CAP,AIR FILTER 2 11012-1167 1
ELEMENT,AIR CLNR 3 11013-1037 1
BRACKET,AIR CLEANER 4 32070-038 2
COVER,AIR FILTER,LH 5 14025-1263 1
COVER,AIR FILTER,RH 6 14025-1264 1
DUCT,AIR FILTER,OUTLE 7 14073-1048 4
DUCT,AIR FILTER,INTAK 8 14073-1049 1
VALVE ASSY,AIR SWITCH 9 16126-1014 1
SILENCER 10 39162-1003 1
FITTING,TUBE 11 92005-1017 1
SCREW,TAPPING,5X12 12 92009-1105 6 KZ1000-P1/P2/P
SCREW,TAPPING,5X12 12 92009-1319 6 KZ1000-P4/P5
CLAMP BREATHER PIPE 13 92037-028 1
CLAMP-PIPE 14 92037-072 6
CLAMP 15 92037-1076 1
CLAMP,BREATHER TUBE 16 92037-213 4
TUBE,VACUUM,LONG 17 92059-1162 2
TUBE,VACUUM,LONG 18 92059-1162 1
TUBE,14X20X89 19 92059-1155 2
TUBE,AIR FILTER 20 92059-1156 1
TUBE,14X20X320 21 92059-1161 1
GROMMET,AIR FILTER 22 92071-1042 1 KZ1000-P1/P2/P
GROMMET,AIR FILTER 22 92071-1042 1 KZ1000-P4/P5
SPRING 23 92081-1177 4 KZ1000-P1
SPRING,COIL,BLACK 23 92081-1457 4 KZ1000-P2/P3/P
BOLT-UPSET,6X12 24 112G0612 2 KZ1000-P1/P2/P
SCREW PAN HEAD 6X12 25 220B0612 2 KZ1000-P1/P2/P
WASHER PLAIN 6MM 26 410B0600 2 KZ1000-P1/P2/P
WASHER PLAIN 6MM 27 411B0600 2 KZ1000-P1/P2/P
WASHER SPRING 6MM 28 461F0600 2 KZ1000-P1/P2/P
BOLT 6X12 29 187B0612 2 KZ1000-P4/P5
SCREW-PAN-WP-CROS 30 224B0612 2 KZ1000-P4/P5
