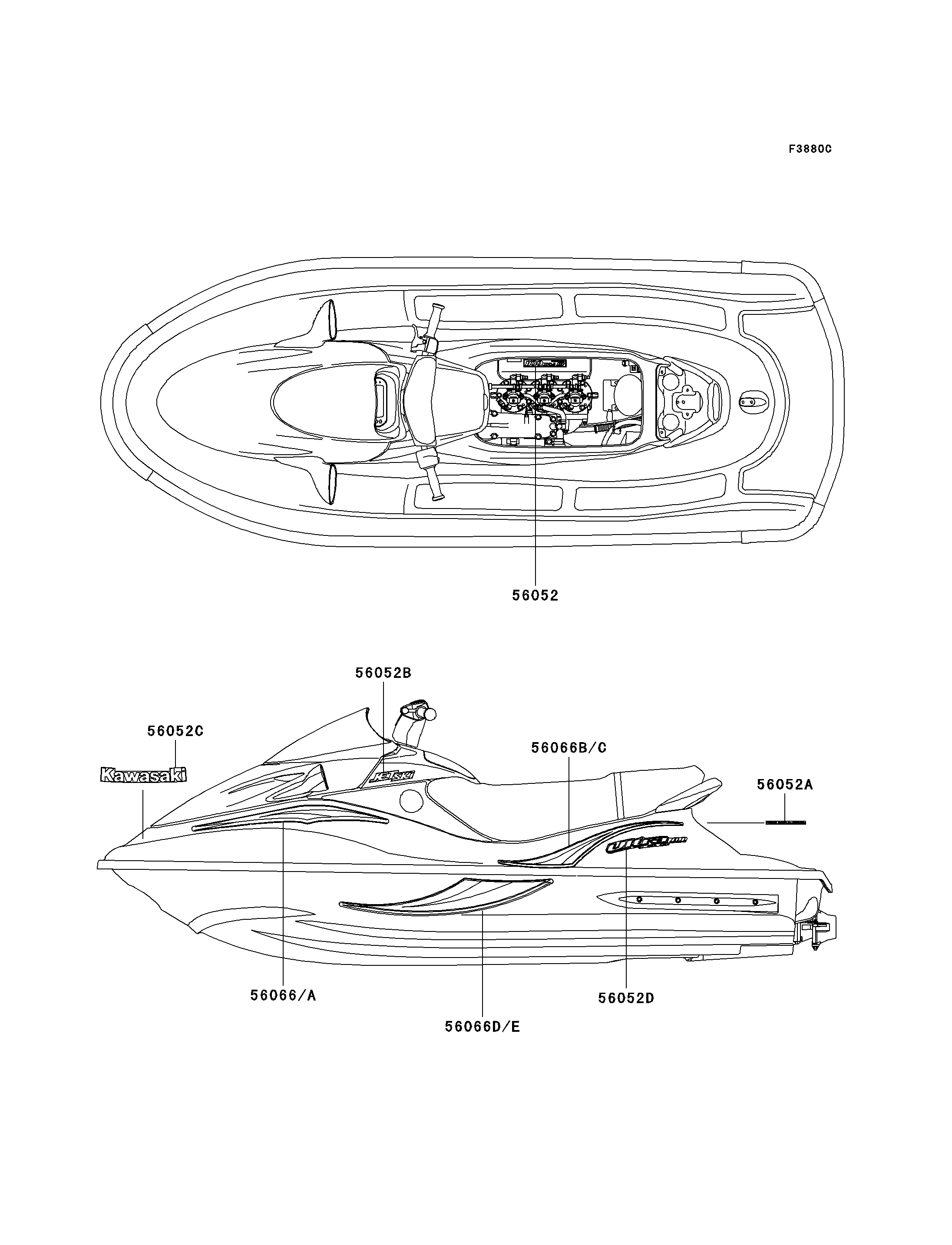

56052
56052A
56052B
56052C
56052D
56066
56066A
56066B
56066C
56066D
56066E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,ENGINE,1100 TRIPLE DI 56052 56052-3733 1
MARK,DECK,FICHT RAM INJECTION 56052A 56052-3789 1
MARK,HANDLE COVER,JET SKI 56052B 56052-3793 2
MARK,DECK,KAWASAKI 56052C 56052-3811 2
MARK,DECK,ULTRA 130 D.I. 56052D 56052-3813 2
PATTERN,DECK,FR,LH 56066 56066-3766 1
PATTERN,DECK,FR,RH 56066A 56066-3767 1
PATTERN,DECK,RR,LH 56066B 56066-3768 1
PATTERN,DECK,RR,RH 56066C 56066-3769 1
PATTERN,HULL,LH 56066D 56066-3770 1
PATTERN,HULL,RH 56066E 56066-3771 1
