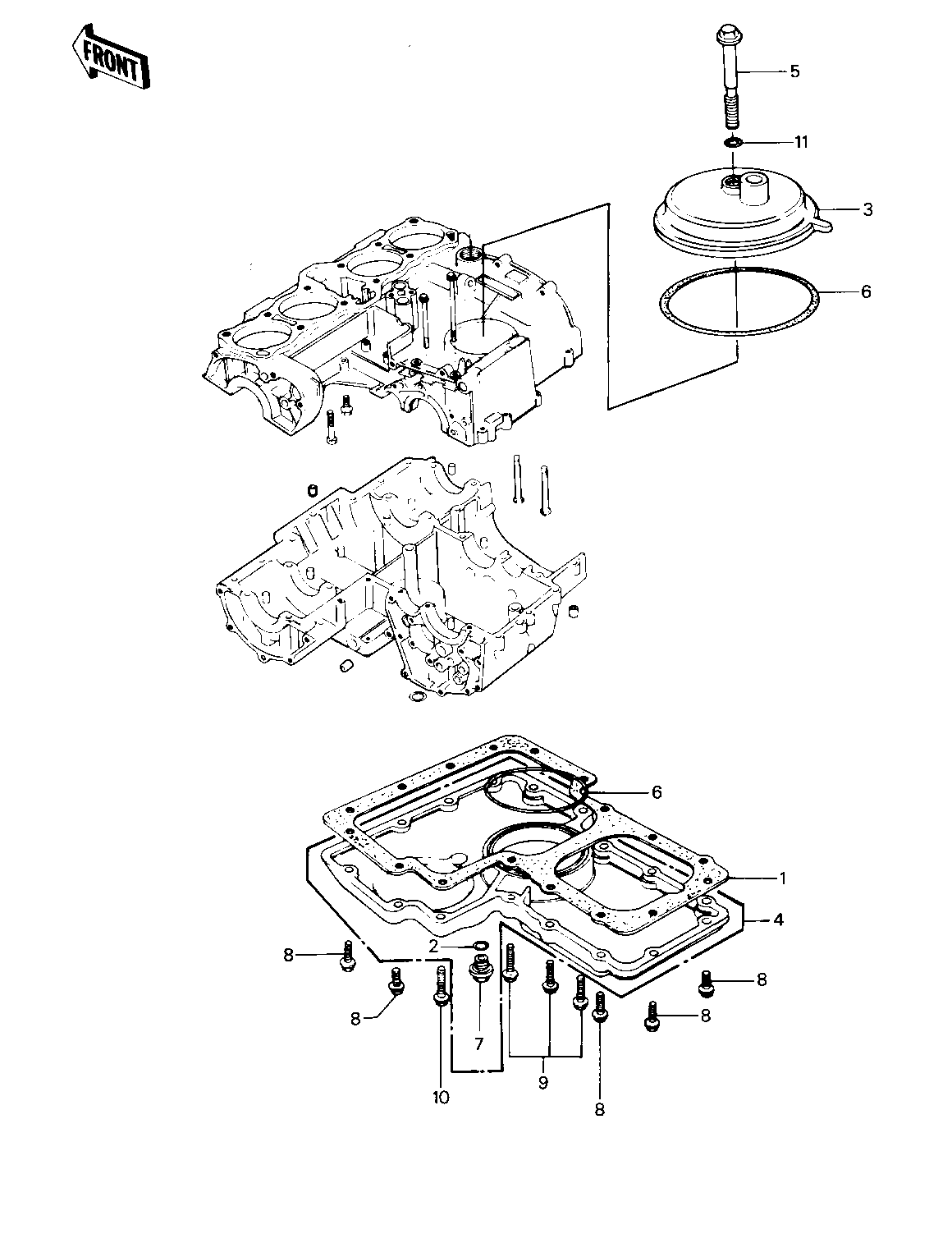

1982 Police 1000 - BREATHER COVER/OIL PAN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PAN | 1 | 11060-1074 | 1 | ||
| "O" RING,22MM | 2 | 670B2022 | 1 | USE FOR 92001-1183 | |
| GASKET,DRIN PLUG | 2 | 92065-097 | 1 | USE FOR 92066-053/1174 | |
| BODY-BREATHER | 3 | 14070-1008 | 1 | ||
| PAN-OIL | 4 | 49034-5020 | 1 | KZ1000-P1 | |
| PAN-OIL | 4 | 49034-5014 | 1 | KZ1000-P1/P2/P3 | |
| PAN-OIL | 4 | 49034-5018 | 1 | KZ1000-P4/P5 | |
| BOLT,HEX HEAD,8X72 | 5 | 92003-107 | 1 | KZ1000-P1/P2/P3 | |
| BOLT,8X72 | 5 | 92002-1107 | 1 | KZ1000-P4/P5 | |
| "O" RING,91MM | 6 | 92055-052 | 2 | ||
| PLUG,OIL DRAIN | 7 | 92001-1183 | 1 | USE FOR 49034-5009 | |
| PLUG,OIL DRAIN,12X15 | 7 | 92066-1174 | 1 | USE FOR 49034-5014 | |
| PLUG,OIL DRAIN,12X15 | 7 | 92066-1174 | 1 | USE FOR 49034-5014/5018 | |
| BOLT,FLANGED,6X25 | 8 | 130G0625 | 13 | KZ1000-P1/P2/P3 | |
| BOLT,6X25 | 8 | 92002-1089 | 13 | KZ1000-P4/P5 | |
| BOLT,FLANGED,6X35 | 9 | 130H0635 | 3 | KZ1000-P1/P2/P3 | |
| BOLT,6X35 | 9 | 92002-1051 | 3 | KZ1000-P4/P5 | |
| BOLT,FLANGED,6X45 | 10 | 130G0645 | 1 | KZ1000-P1/P2/P3 | |
| BOLT,6X45 | 10 | 92002-1088 | 1 | KZ1000-P4/P5 | |
| "O" RING,8MM | 11 | 670B1508 | 1 |
