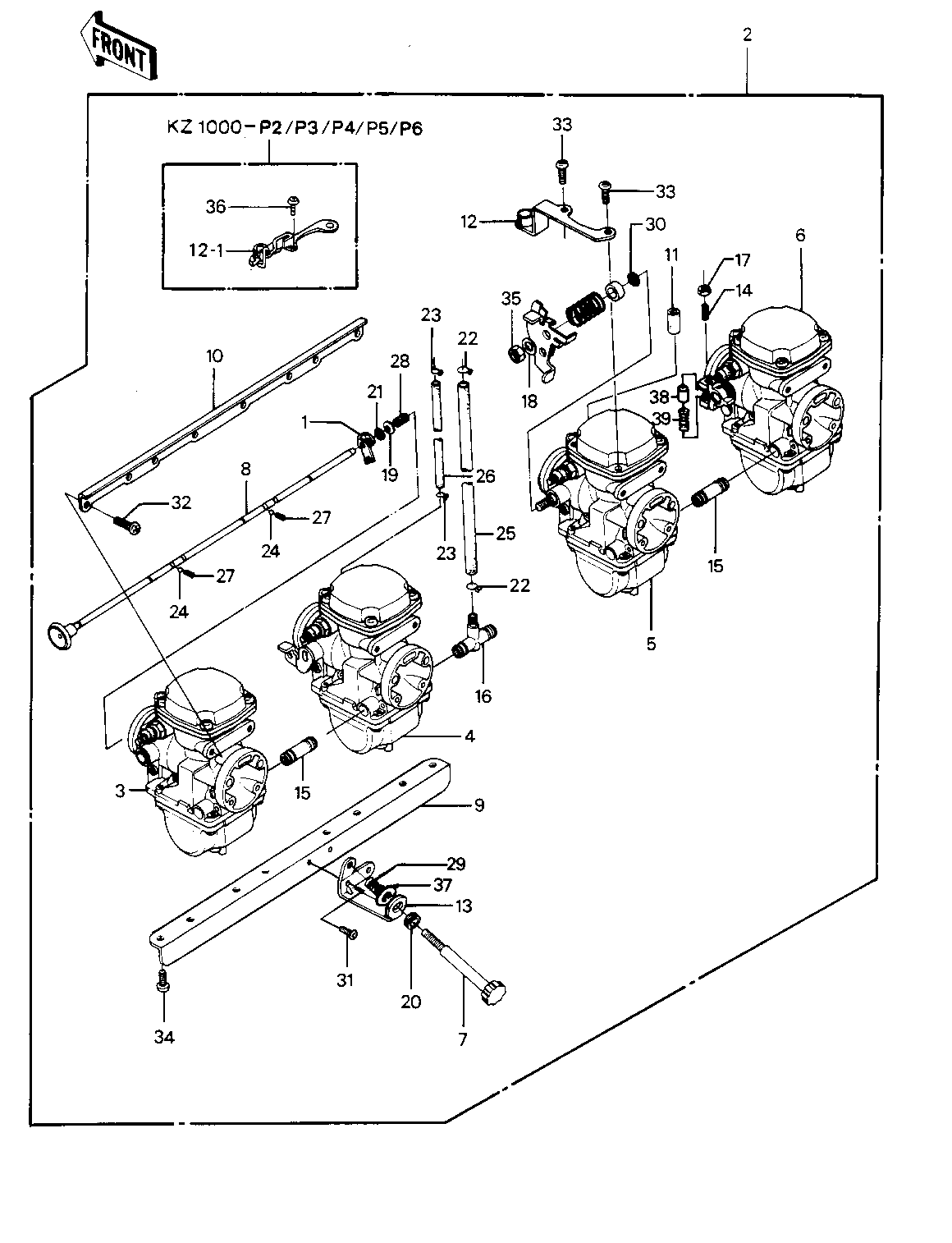

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER,CHOCK | 1 | 13168-1091 | 4 | ||
| CARBURETOR ASSY | 2 | 16001-1358 | 1 | KZ1000-P1 | |
| CARBURETOR | 2 | 16001-1724 | 1 | KZ1000-P2/P3/P4 | |
| CARBURETOR-ASSY | 2 | 15001-1209 | 1 | KZ1000-P5 | |
| CARBURETOR,LH,OUTSIDE | 3 | 16001-1436 | 1 | KZ1000-P1 | |
| CARBURETOR,LH,OUTSIDE | 3 | 16001-1725 | 1 | KZ1000-P2/P3/P4 | |
| CARBURETOR,LH,OUTSIDE | 3 | 15002-1258 | 1 | KZ1000-P5 | |
| CARBURETOR,LH,INSIDE | 4 | 16001-1437 | 1 | KZ1000-P1 | |
| CARBURETOR,LH,INSIDE | 4 | 16001-1726 | 1 | KZ1000-P2/P3/P4 | |
| CARBURETOR,LH,INSIDE | 4 | 15002-1259 | 1 | KZ1000-P5 | |
| CARBURETOR,RH,INSIDE | 5 | 16001-1438 | 1 | KZ1000-P1 | |
| CARBURETOR,RH,INSIDE | 5 | 16001-1727 | 1 | KZ1000-P2/P3/P4 | |
| CARBURETOR,RH,INSIDE | 5 | 15002-1260 | 1 | KZ1000-P5 | |
| CARBURETOR,RH,OUTSIDE | 6 | 16001-1439 | 1 | KZ1000-P1 | |
| CARBURETOR,RH,OUTSIDE | 6 | 16001-1728 | 1 | KZ1000-P2/P3/P4 | |
| CARBURETOR,RH,OUTSIDE | 6 | 15002-1261 | 1 | KZ1000-P5 | |
| SCREW-THROTTLE STOP | 7 | 16021-1035 | 1 | KZ1000-P1/P2/P3/P4 | |
| SCREW-THROTTLE STOP | 7 | 16021-1103 | 1 | KZ1000-P5 | |
| SHAFT-CARBURETOR,CHOC | 8 | 16041-1024 | 1 | ||
| HOLDER-CARBURETOR,LWR | 9 | 16065-1043 | 1 | ||
| HOLDER-CARBURETOR,UPP | 10 | 16065-1044 | 1 | ||
| CAP-END | 11 | 39031-1009 | 1 | KZ1000-P1 | |
| RUBBER PLUG | 11 | 92068-006 | 1 | KZ1000-P2/P3/P4/P5 | |
| BRACKET-ASSY,THROTTLE | 12 | 39184-1006 | 1 | KZ1000-P1 | |
| BRACKET-ASSY,THROTTLE | 12-1 | 39184-1013 | 1 | KZ1000-P2/P3/P4/P5 | |
| BRACKET-ASSY,IDLING A | 13 | 39184-1007 | 1 | ||
| BOLT,ADJUSTING | 14 | 92001-1447 | 3 | ||
| FITTING,FUEL | 15 | 92005-1035 | 2 | ||
| FITTING,FUEL | 16 | 92005-1036 | 1 | ||
| NUT,THROTTLE VLV ADST | 17 | 92015-1119 | 3 | ||
| WASHER,LOCK | 18 | 92022-1191 | 1 | KZ1000-P1 | |
| WASHER,SPRING | 19 | 92022-1255 | 4 | ||
| BUSHING | 20 | 92028-1071 | 1 | KZ1000-P1/P2/P3/P4 | |
| BUSHING,IDLING ADJUST | 20 | 92028-1266 | 1 | KZ1000-P5 | |
| RING-SNAP,E | 21 | 92033-1066 | 4 | ||
| CLAMP,HOSE | 22 | 92037-1184 | 2 | KZ1000-P1/P2/P3/P4 | |
| CLAMP,HOSE | 22 | 92037-1184 | 2 | KZ1000-P5 | |
| CLAMP,BREATHER HOSE | 23 | 92037-174 | 2 | ||
| BALL,STEEL,1/8" | 24 | 600A0400 | 2 | ||
| TUBE,7.5X12.5X250 | 25 | 92059-1187 | 1 | ||
| TUBE,5X9X150 | 26 | 92059-1188 | 1 | ||
| SPRING,FAST IDLE SHFT | 27 | 92081-1260 | 2 | ||
| SPRING,CHOCK SHAFT | 28 | 92081-1364 | 4 | ||
| SPRING,IDLING ADJUST | 29 | 92081-1377 | 1 | ||
| OIL SEAL | 30 | 92093-1027 | 4 | KZ1000-P1 | |
| SCREW PAN HEAD 5X8 | 31 | 220B0508 | 1 | ||
| SCREW PAN HEAD 5X10 | 32 | 220B0510 | 8 | ||
| SCREW-PAN-CROS | 33 | 220B0514 | 2 | KZ1000-P1 | |
| SCREW PAN HEAD 6X14 | 34 | 220B0614 | 8 | ||
| NUT,8 M/M | 35 | 315G0800 | 1 | KZ1000-P1 | |
| SCREW PAN HEAD 5X12 | 36 | 220B0512 | 2 | KZ1000-P2/P3/P4/P5 | |
| WASHER,THROTTLE STOP | 37 | 92022-1491 | 1 | KZ1000-P5 | |
| PIN,THROTTLE VALVE | 38 | 92043-1079 | 3 | KZ1000-P2/P3/P4/P5 | |
| SPRING,THROTTLE VALVE | 39 | 92081-1259 | 3 | KZ1000-P2/P3/P4/P5 |
