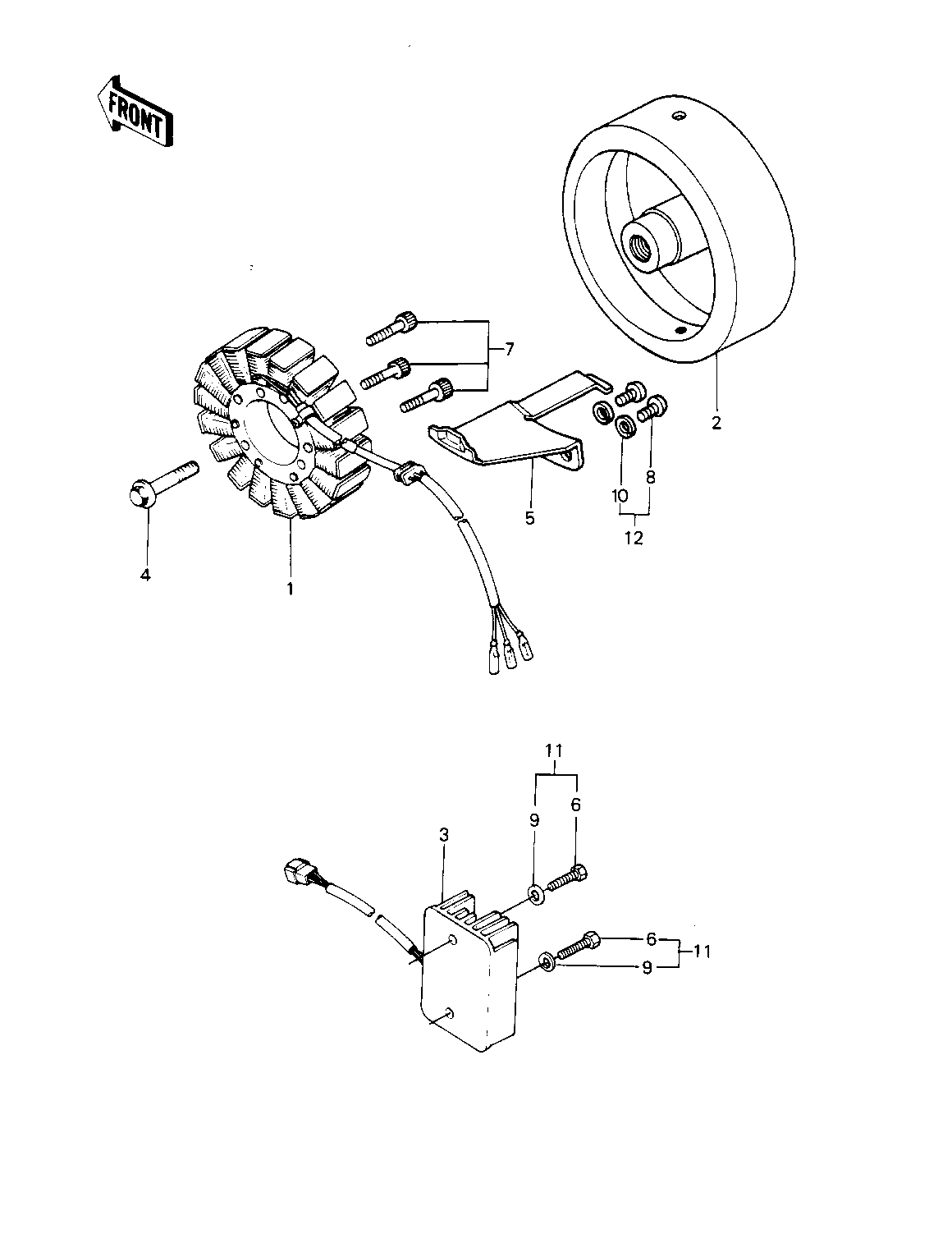

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR 1 21003-1040 1
ROTOR 2 21007-1036 1
REGULATOR-VOLTAGE 3 21066-1018 1
BOLT,12X40 4 92001-1146 1
CLAMP 5 92037-1214 1
BOLT-UPSET 6X14 6 112B0614 2 KZ1000-P1/P2/P3
BOLT,SOCKET,6X30 7 120P0630 3
SCREW PAN HEAD 5X12 8 220B0512 2 KZ1000-P1/P2/P3
WASHER PLAIN 6MM 9 411B0600 2 KZ1000-P1/P2/P3
WASHER SPRING 5MM 10 461F0500 2 KZ1000-P1/P2/P3
BOLT 11 186B0614 2 KZ1000-P4/P5
SCREW-PAN-WS-CROS 12 223B0512 2 KZ1000-P4/P5
