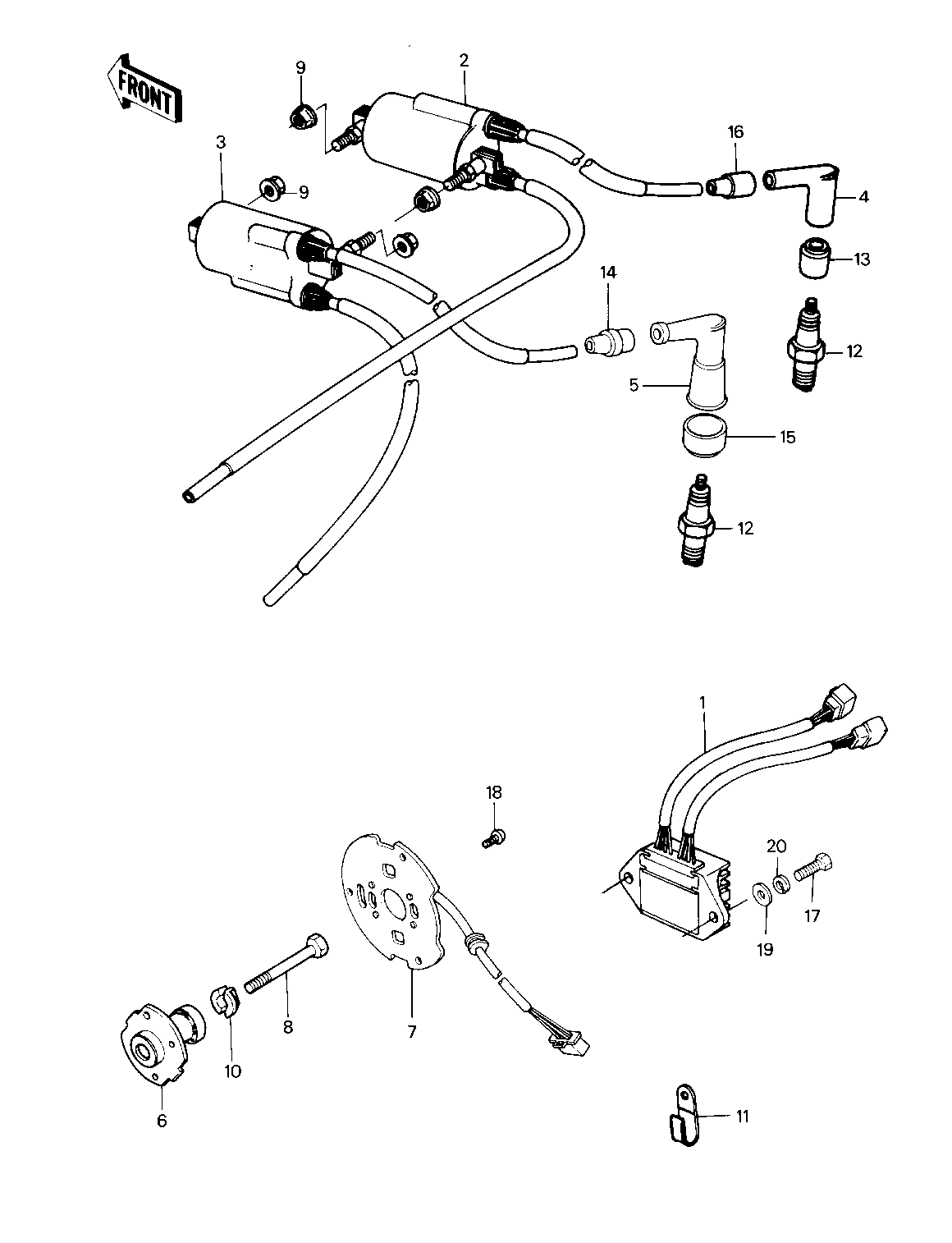

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
IGNITER | 1 | 21119-1041 | 1 | ||
COIL-IGNITION | 2 | 21121-1038 | 1 | ||
COIL-IGNITION | 3 | 21121-1039 | 1 | ||
CAP-SPARK PLUG,RTFM20 | 4 | 21130-1007 | 2 | ||
CAP-SPARK PLUG | 5 | 21130-1010 | 2 | ||
GOVERNOR-BREAKER | 6 | 21148-1020 | 1 | ||
COIL-PULSING | 7 | 59026-1012 | 1 | ||
BOLT-8X63 | 8 | 92001-1397 | 1 | ||
NUT-6MM | 9 | 92015-1078 | 4 | KZ1000-P1/P2 | |
NUT-6MM | 9 | 92015-1078 | 4 | KZ1000-P3/P4/P5 | |
WASHER,SPARK ADVANCER | 10 | 92022-244 | 1 | ||
CLAMP,WIRING HARNESS | 11 | 21126-008 | 5 | ||
SPARK PLUG BR8ES | 12 | BR8ES | 4 | ||
GROMMET-PLUG CAP,A | 13 | 21131-004 | 2 | ||
GROMMET,HIGH TENSION | 14 | 21131-005 | 2 | ||
GROMMET,PLUG CAP | 15 | 21131-006 | 2 | ||
GROMMET,SPARK PLG CAP | 16 | 21132-005 | 2 | ||
BOLT-UPSET | 17 | 112G0618 | 2 | ||
SCREW PAN HEAD 5X12 | 18 | 220B0512 | 3 | ||
WASHER PLAIN 6MM | 19 | 411B0600 | 2 | ||
WASHER SPRING 6MM | 20 | 461F0600 | 2 |
IGNITER | |
REF # | 1 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-IGNITION | |
REF # | 2 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-IGNITION | |
REF # | 3 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-SPARK PLUG,RTFM20 | |
REF # | 4 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CAP-SPARK PLUG | |
REF # | 5 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GOVERNOR-BREAKER | |
REF # | 6 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COIL-PULSING | |
REF # | 7 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-8X63 | |
REF # | 8 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-6MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | KZ1000-P1/P2 |
NUT-6MM | |
REF # | 9 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | KZ1000-P3/P4/P5 |
WASHER,SPARK ADVANCER | |
REF # | 10 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,WIRING HARNESS | |
REF # | 11 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SPARK PLUG BR8ES | |
REF # | 12 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
GROMMET-PLUG CAP,A | |
REF # | 13 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,HIGH TENSION | |
REF # | 14 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,PLUG CAP | |
REF # | 15 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
GROMMET,SPARK PLG CAP | |
REF # | 16 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-UPSET | |
REF # | 17 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 5X12 | |
REF # | 18 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
WASHER PLAIN 6MM | |
REF # | 19 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER SPRING 6MM | |
REF # | 20 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
