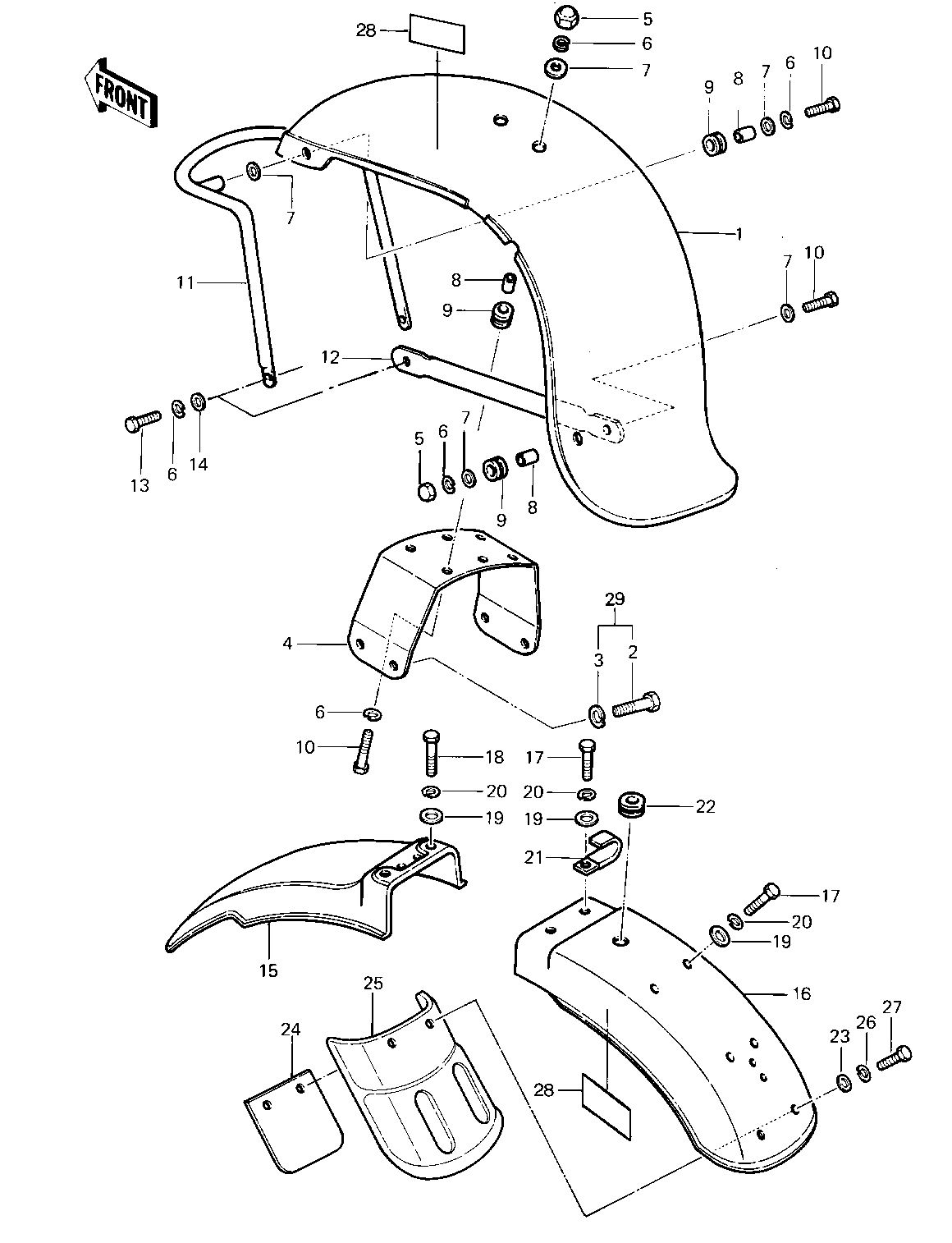

1982 Police 1000 - FENDERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FENDER-FR,WHITE 1 35004-4004-8C 1 KZ1000-P1
FENDER-FR.JET WHITE 1 35004-4007-8C 1 KZ1000-P2/P3/P4/P5
BOLT-UPSET,6X20 2 112G0620 4 KZ1000-P1/P2/P3
WASHER SPRING 8MM 3 461F0800 4 KZ1000-P1/P2/P3
BRACE,FRONT FENDER 4 35009-1001 1
NUT-6MM 5 322N0600 4 KZ1000-P1
NUT-6MM 5 322N0600 6 KZ1000-P2/P3/P4/P5
WASHER SPRING 6MM 6 461F0600 8 KZ1000-P1
WASHER SPRING 6MM 6 461F0600 10 KZ1000-P2/P3/P4/P5
WASHER-PLAIN 7 92022-193 8 KZ1000-P1
WASHER-PLAIN 7 92022-193 10 KZ1000-P2/P3/P4/P5
COLLAR 6.8X10X10.5 8 92027-120 6 KZ1000-P1
COLLAR 6.8X10X10.5 8 92027-120 8 KZ1000-P2/P3/P4/P5
GROMMET 9 92071-046 6 KZ1000-P1
GROMMET 9 92071-046 8 KZ1000-P2/P3/P4/P5
BOLT-UPSET 10 112G0625 6
STAY,FR FENDER,FR 11 35011-4001 1
STAY,FENDER-RR 12 35011-4004 2 KZ1000-P2/P3/P4/P5
BOLT-UPSET 6X14 13 112B0614 2 KZ1000-P1
BOLT-UPSET 6X14 13 112B0614 4 KZ1000-P2/P3/P4/P5
WASHER PLAIN 6MM 14 410B0600 2 KZ1000-P1
WASHER PLAIN 6MM 14 410B0600 4 KZ1000-P2/P3/P4/P5
FENDER-RR 15 35022-1071 1
FENDER-RR,WHITE 16 35022-1099-8C 1
BOLT-UPSET 6X14 17 112B0614 4
BOLT 6X22 18 112B0622 2
WASHER PLAIN 6MM 19 411B0600 6
WASHER SPRING 6MM 20 461F0600 6
CLAMP,WIRING HARNESS 21 92037-1069 1
GROMMET,HARNESS 22 92071-099 1
WASHER PLAIN 6MM 23 411B0600 2
PLATE,FLAP MOUNT 24 13169-4020 1
FLAP, FENDER 25 35019-1005 1
WASHER SPRING 6MM 26 461F0600 2
BOLT-UPSET 6X14 27 112B0614 2
LABEL-TIRE PRESSURE 28 99969-0849 2
BOLT-UPSET-WS-SMALL 29 183B0820 4 KZ1000-P4/P5/P6
