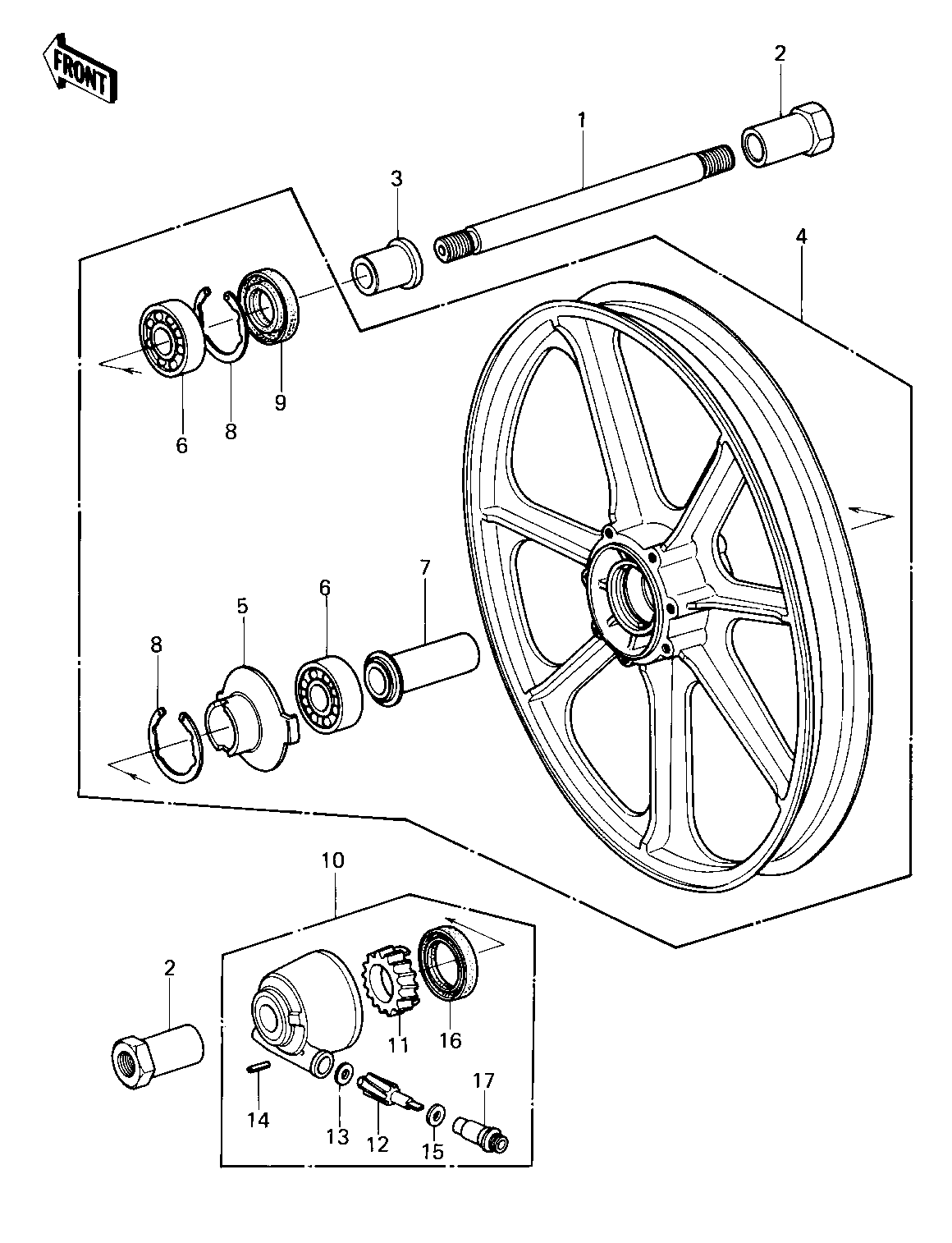

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FR,L=259 1 41068-1072 1
COLLAR,FRONT AXLE 2 41069-031 2
COLLAR,FR AXLE L=30MM 3 92027-1225 1
WHEEL-ASSY,FR,SOLID,B 4 41073-1202-21 1 KZ1000-P1
WHEEL-ASSY,FR,SOLID,B 4 41073-1202-21 1 KZ1000-P2/P3/P4/P5
RECEIVER,SPEEDOMETER 5 41064-1006 1
BEARING BALL #6302Z 6 601B6302Z 2
COLLAR 7 92027-1437 1
CIRCLIP,42MM 8 92033-1041 2
OIL SEAL,AG1144AO 9 92049-1058 1
GEAR BOX ASSY, 10 41078-1013 1
GEAR,SPEEDOMETER 11 41059-026 1
PINION,SPEEDOMETER,9T 12 41060-1016 1
WASHER THRST SPD PINI 13 41063-001 1
PIN,SPRING 14 41082-001 1
WASHER THRST SPD PINI 15 41063-001 1
OIL SEAL,BJN30427-C3 16 92049-1057 1
BUSHING,METER GEAR 17 92087-1002 1
