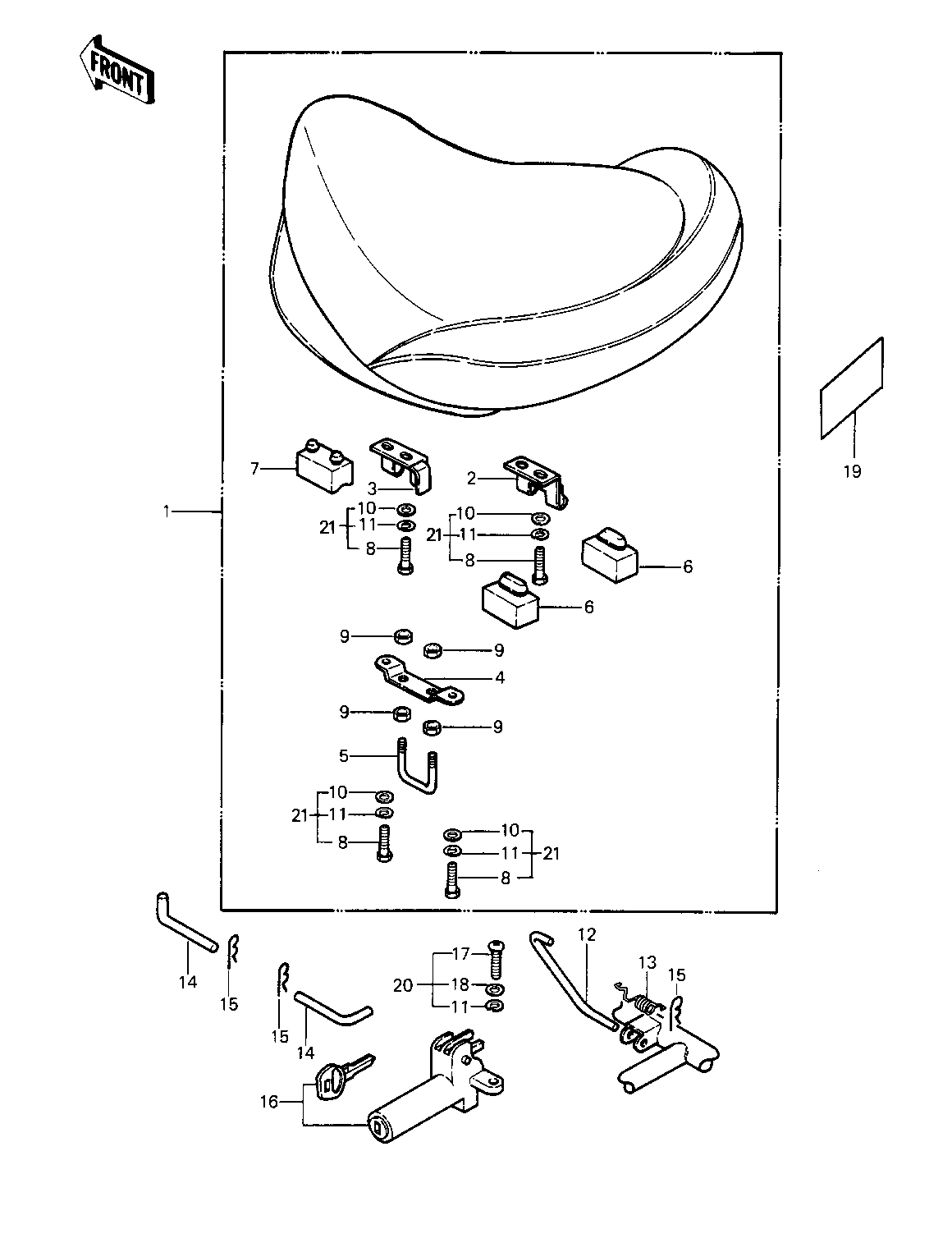

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT-ASSY | 1 | 53001-1220 | 1 | ||
| HINGE,BLACK | 2 | 53009-017-10 | 1 | ||
| HINGE,SEAT,FR | 3 | 53009-1029 | 1 | ||
| BRACKET,SEAT CATCH | 4 | 11034-1329 | 1 | ||
| CATCH, SEAT | 5 | 53056-002 | 1 | ||
| DAMPER RUBBER | 6 | 92075-099 | 2 | ||
| DAMPER RUBBER,SEAT | 7 | 92075-1133 | 1 | ||
| BOLT-UPSET 6X14 | 8 | 112B0614 | 6 | KZ1000-P1/P2/P3/P4 | |
| NUT 6MM | 9 | 311B0600 | 4 | ||
| WASHER PLAIN 6MM | 10 | 411B0600 | 6 | KZ1000-P1/P2/P3/P4 | |
| WASHER SPRING 6MM | 11 | 461F0600 | 7 | KZ1000-P1/P2/P3 | |
| WASHER SPRING 6MM | 11 | 461F0600 | 6 | KZ1000-P4 | |
| STAY,SEAT STAND | 12 | 35011-4003 | 1 | ||
| SPRING,SEAT HOOK | 13 | 92081-1053 | 1 | ||
| PIN,SEAT PIVOT | 14 | 92043-1021 | 2 | ||
| PIN,SNAP | 15 | 554A0600 | 3 | ||
| LOCK ASSY,SEAT | 16 | 27016-5015 | 1 | ||
| SCREW PAN HEAD 6X14 | 17 | 220B0614 | 1 | KZ1000-P1/P2 | |
| BOLT-UPSET 6X14 | 17 | 112B0614 | 1 | KZ1000-P3 | |
| WASHER PLAIN 6MM | 18 | 410B0600 | 1 | KZ1000-P1/P2/P3 | |
| LABEL,CHAIN | 19 | 56031-1157 | 1 | KZ1000-P3/P4/P5 | |
| BOLT 6X14 | 20 | 187B0614 | 1 | KZ1000-P4 | |
| UNAVAILABLE IN PRICE BOOK | 21 | 157B0614 | 6 | KZ1000-P5 |
| SEAT-ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE,BLACK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HINGE,SEAT,FR | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,SEAT CATCH | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CATCH, SEAT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SEAT | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KZ1000-P1/P2/P3/P4 |
| NUT 6MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KZ1000-P1/P2/P3/P4 |
| WASHER SPRING 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | KZ1000-P1/P2/P3 |
| WASHER SPRING 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KZ1000-P4 |
| STAY,SEAT STAND | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SEAT HOOK | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SEAT PIVOT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,SNAP | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| LOCK ASSY,SEAT | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-P1/P2 |
| BOLT-UPSET 6X14 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-P3 |
| WASHER PLAIN 6MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-P1/P2/P3 |
| LABEL,CHAIN | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-P3/P4/P5 |
| BOLT 6X14 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KZ1000-P4 |
| UNAVAILABLE IN PRICE BOOK | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | KZ1000-P5 |
