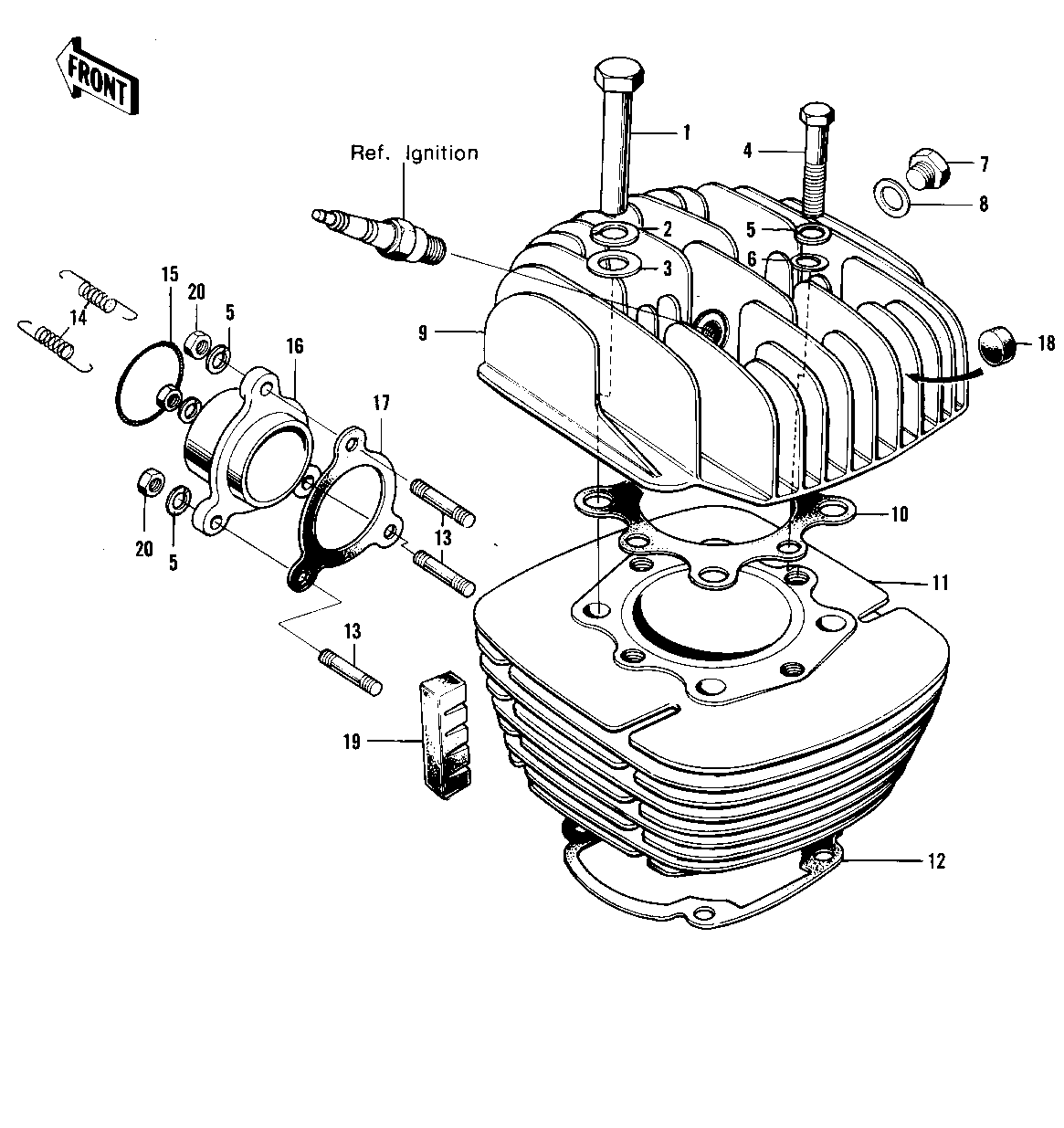

1972 F9 - CYLINDER HEAD/CYLINDER ('72-'73 F9/F9-A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
NUT 10MM | 1 | 92015-022 | 4 | ||
WASHER SPRING 14MM | 2 | 461F1400 | 4 | ||
WASHER PLAIN 14MM | 3 | 410B1400 | 4 | ||
BOLT,10X45 | 4 | 92001-1182 | 4 | ||
BOLT,10X45 | 4 | 92001-1182 | 4 | ||
WASHER SPRING 8MM | 5 | 461F0800 | 7 | ||
WASHER SPRING 8MM | 5 | 461F0800 | 7 | ||
WASHER SPRING 8MM | 5 | 461F0800 | 7 | ||
WASHER PLAIN 8MM | 6 | 410B0800 | 4 | ||
PLUG-CYLINDER HEAD | 7 | 92067-005 | 1 | ||
GASKET-CYL HEAD PLUG | 8 | 92065-068 | 1 | ||
CYLINDER HEAD,F BLAC | 9 | 11001-047-21 | 1 | ||
GASKET-CYLINDER HEAD | 10 | 11004-037 | 1 | ||
CYLINDER,F.BLACK | 11 | 11005-056-21 | 1 | ||
GASKET-CYLINDER BASE | 12 | 11009-024 | 1 | ||
STUD 8X20 | 13 | 172G0820 | 3 | ||
SPRING-CONNECTOR | 14 | 18071-003 | 2 | ||
UNAVAILABLE IN PRICE BOOK | 15 | 56019-102 | AR | ||
HOLDER-EXHAUST | 16 | 18062-002 | 1 | ||
GASKET-EXHAUST PIPE | 17 | 18050-004 | 1 | ||
DAMPER RUBBER-CYL HD | 18 | 92075-117 | 12 | ||
DAMPER RUBBER-CYLNDE | 19 | 92075-093 | 4 | ||
NUT 8MM | 20 | 318B0800 | 3 |
