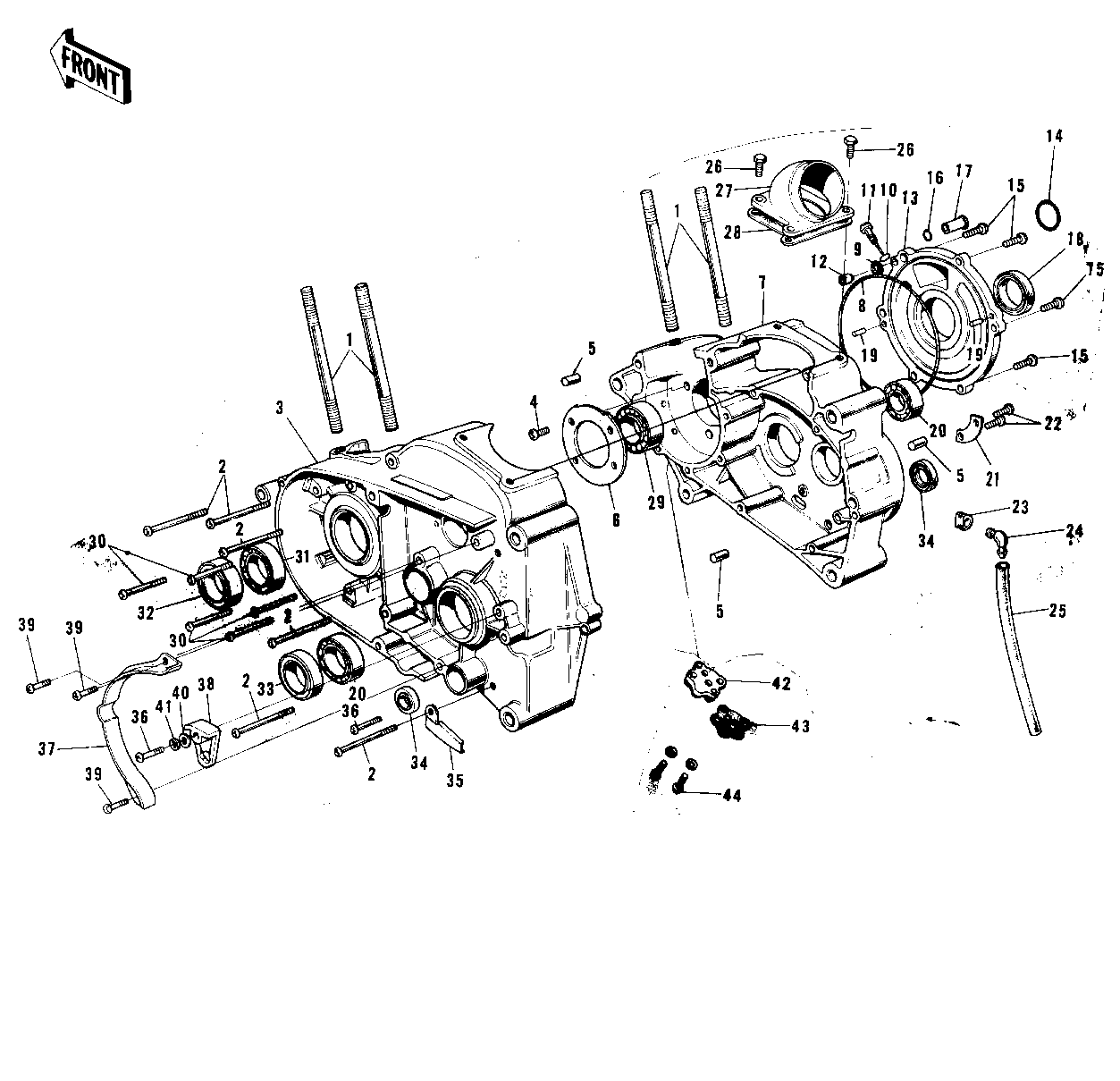

1972 F9 - CRANKCASE ('72-'73 F9/F9-A 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STUD 10X75 1 172G1075 4
SCREW PAN HEAD 6X75 2 220B0675 1
CRANKCASE SET 3 14001-065 1
SCREW CNTSNK HD 6X16 4 221B0616 4
PIN,DOWEL,10X8.2X14 5 92043-1037 4
HOLDER-CRANK BEARING 6 14014-019 1
CRANKCASE SET 7 14001-065 1
CRANKCASE,R.H 7 14003-062 1 F9A
"0" RING,134.5MM 8 92055-039 1
"O" RING,5MM 9 670B1505 1
"0" RING,5MM 10 92055-011 1
NOZZLE OIL INJECTION 11 92062-004 1
NOZZLE,OIL METERING 12 92062-008 1
COVER-ROTARY DISC VL 13 14019-048 1
"0" RING,35MM 14 670B3035 1
SCREW PAN HEAD 6X20 15 220B0620 6
"0" RING,CHECK VALVE 16 92055-037 1
VALVE-CHECK 17 16128-006 1
OIL SEAL TB35488 18 653B354808 1
PIN DOWEL 5X12 19 610A0512 2
BEARING BALL #6205 20 601B6205 2
HOLDER-MISSION BERNG 21 14014-020 1
SCREW PAN HEAD 6X14 22 220B0614 2
GROMMET 23 92071-042 1
BREATHER ASSY 24 14069-1001 1
PIPE-BREATHER 25 92059-061 1
BOLT-UPSET,6X20 26 112G0620 4
BOLT-UPSET,6X20 26 112G0620 AL
INLET PIPE 27 11015-021 1
GASKET-INLET PIPE 28 11017-005 1
BEARING-BALL 29 92045-016 1
SCREW PAN HEAD 6X50 30 220B0650 5
BEARING BALL #6305 31 601B6305 1
SEAL-OIL 32 92049-1250 1
OIL SEAL TB3040 33 92050-033 1
OIL SEAL SB12205 34 92049-004 1
COVER-WIRING HARNESS 35 14076-001 1
SCREW PAN HEAD 6X30 36 220B0630 2
GUIDE-CHAIN 37 14077-001 1
TENSIONER-CHAIN 38 13123-004 1
SCREW PAN HEAD 6X12 39 220B0612 3
WASHER PLAIN 6MM 40 410B0600 1
WASHER SPRING 6MM 41 461F0600 1
VALVE,CHECK 42 16128-008 1 F9A
GASKET,CHECK VALVE 43 14051-003 1 F9A
SCREW-PAN HEAD 6X25 44 220B0625 2 F9A
