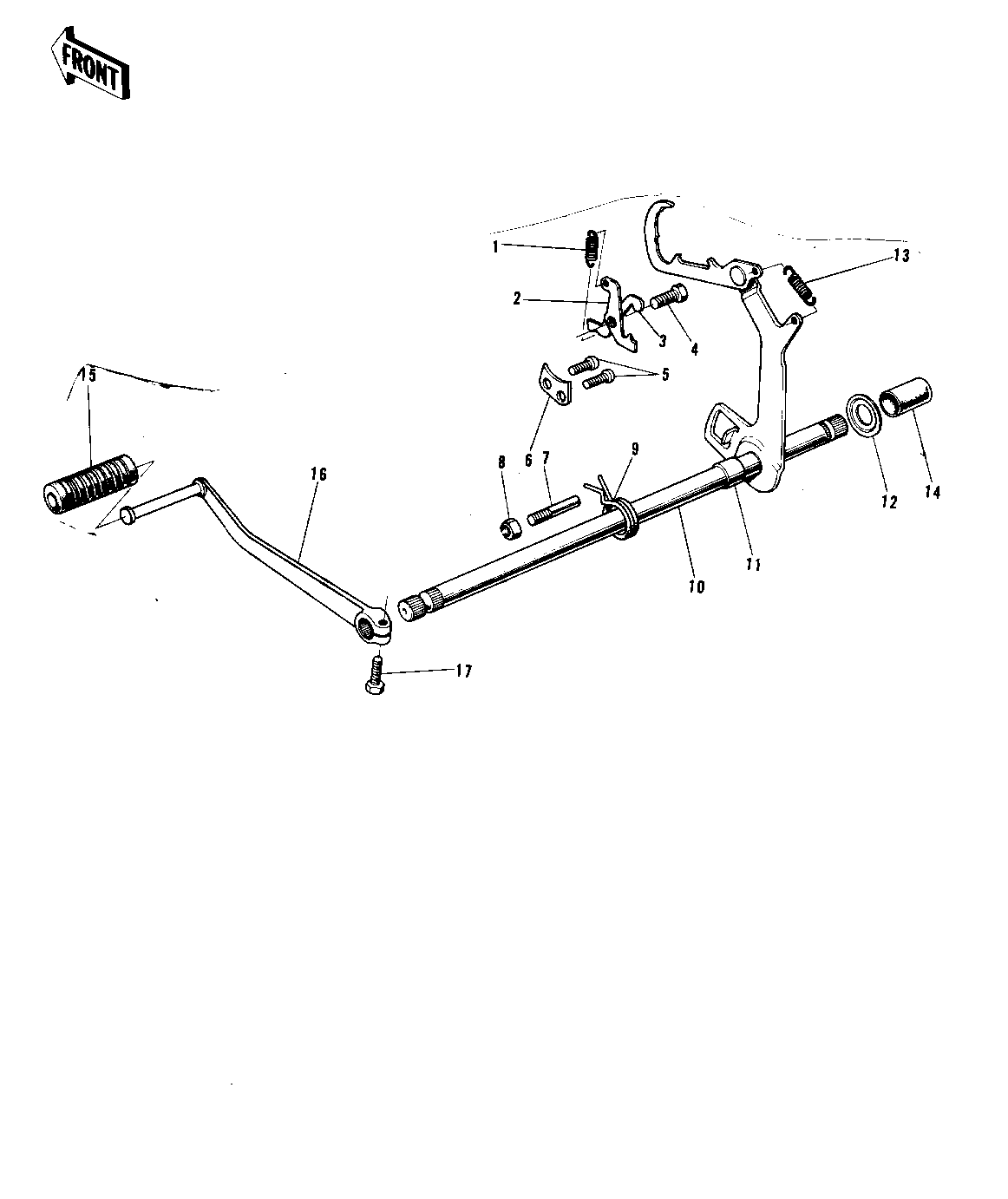

1972 F9 - GEAR CHANGE MECHANISM ('72-'73 F9/F9-A 3

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPRING-COIL 1 92081-091 1
LEVER-CHANGE DRUM,B 2 13168-017 1
LEVER-CHANGE DRUM,A 3 13168-016 1
SCREW-PAN HEAD 4 92011-023 1
SCREW PAN HEAD 6X14 5 220B0614 1
PLATE CHNG DRUM PSTN 6 13169-002 1
PIN CHANGE PEDAL SPR 7 92043-057 1
NUT 8MM 8 312B0800 1
SPRING,TENTION 9 92081-1129 1
LEVER ASSY GEAR CHNG 10 13161-025 1
COLLAR 11 92027-121 1
SPACER 12 92026-068 1
SPRING CHANGE LEVER 13 92081-011 1
RUBBER CAP 14 13080-004 1
RUBBER CHANGE PEDAL 15 13157-004 1
PEDAL GEAR CHANGE 16 13156-045 1
BOLT-UPSET 17 112G0618 1
BOLT-UPSET 17 112G0618 AL
