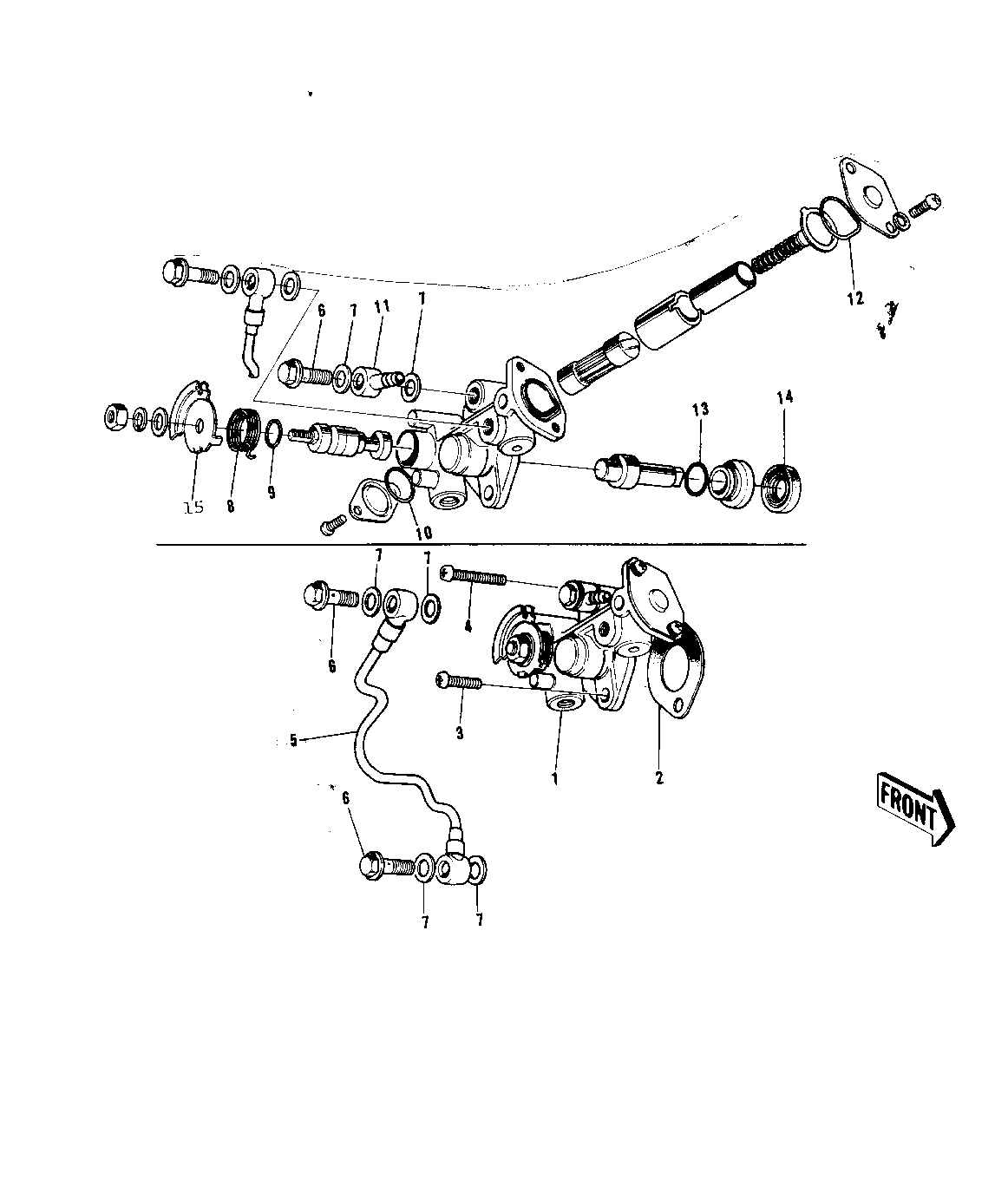

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
OIL PUMP ASSY 1 16082-038 1
OIL PUMP ASSY 1 16082-038 1
OIL PUMP ASSY 1 16082-045 1 F9A,F9-1
GASKET,OIL PUMP 2 11060-1160 1
SCREW-PAN-CROS 3 220B0514 1
SCREW PAN CROSS,5X28 4 220B0528 1
PIPE-OIL 5 16134-010 1
BOLT-BANJO,6MM 6 92060-013 3
WASHER OIL PUMP BANJ 7 92022-077 6
SPRING OIL PUMP LEVE 8 16093-004 1
SEAL-OIL,CAMSHAFT,"X 9 92049-1294 1
"0" RING,LOWER CAP 10 16090-003 1
CONNECTOR BANJO 11 92061-009 1
"0" RING,UPPER CAP 12 16088-002 1
"0" RING,OIL PUMP SH 13 16090-002 1
OIL SEAL OIL PUMP SH 14 16091-001 1
LEVER-OIL PUMP CABLE 15 16096-008 1 F9A
