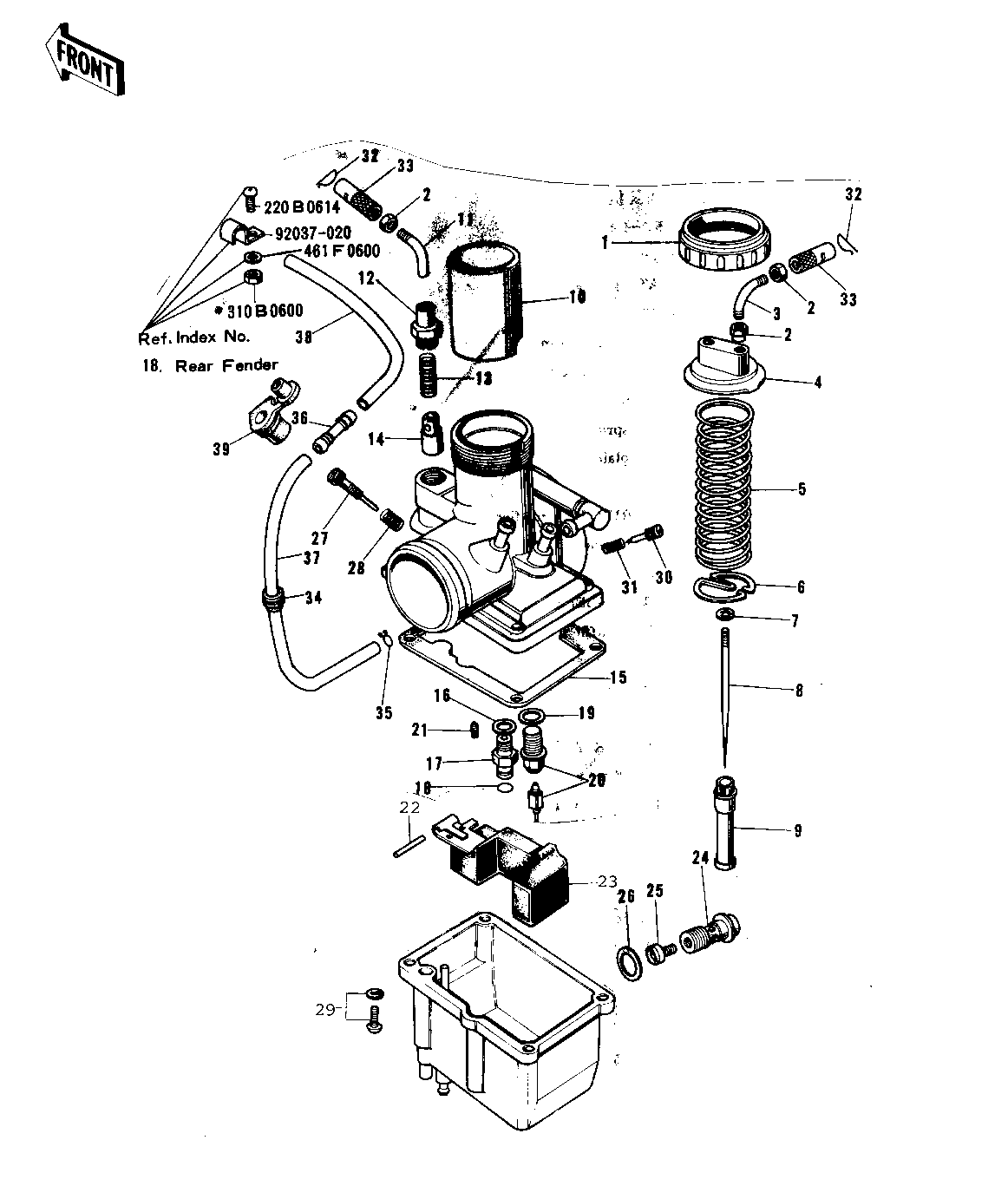

1972 F9 - CARBURETOR ('72-'73 F9/F9-A 350)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1~31 16001-140 1 VM30SC
CARBURETOR ASSY 1~31 16001-161 1
CAP MIXING CHAMBER 1 16004-006 1
NUT CABLE ADJUST LOC 2 16003-004 3
CABLE GUIDE 3 16077-001 1
TOP MIXING CHAMBER 4 16005-016 1
SPRING THROTTLE VALV 5 16006-007 1
SPRING SEAT THRTL VL 6 16007-007 1
CIRCLIP 7 16008-010 1
JET NEEDLE,5EJ13 8 16009-048 1
NEEDLE JET,O-G 9 16017-057 1
VALVE-THROTTLE,CA1.5 10 16025-045 1
VALVE,THROTTLE CA2.0 11 16025-052 1
CAP-STARTER PLUNGER 12 16012-013 1
SPRING-PLUNGER 13 16013-003 1
PLUNGER-ENRICHNER 14 16016-002 1
GASKET-FLOAT CHAMBER 15 16019-017 1
WASHER MAIN JET 16 16034-001 1
HOLDER-NEEDLE JET 17 16065-008 1
"0" RING 18 92055-044 1
WASHER FLOAT VLV SEA 19 16029-004 1
FLOAT VALVE ASSY 20 16030-005 1
PILOT JET,#10 21 92064-034 1
PILOT JET,#17.5 21 92064-046 1 F9A
FLOAT PIN 22 16032-006 1
FLOAT 23 16031-022 1
BOLT-BANJO 24 92001-097 1
MAIN JET NO 120R 25 92063-078 1 STD
GASKET-BANJO BOLT 26 16034-005 1
SCREW-THROTTLE STOP 27 16021-014 1
SPRING THR STOP SCRE 28 16022-005 1
SCREW-PAN-WS-CROS 29 223B0414 4
SCREW-PILOT AIR ADJS 30 16014-011 1
SPRING-THR STOP SCRE 31 16022-007 1
CIRCLIP 32 92036-018 2
CABLE ADJUSTER 33 16002-007 2
GROMMET PIPE 34 92071-038 1
CLAMP FUEL PIPE 35 92037-010 1
NIPPLE 36 92005-003 1
PIPE 37 92059-065 1
PIPE OIL TANK 38 92059-002 1
