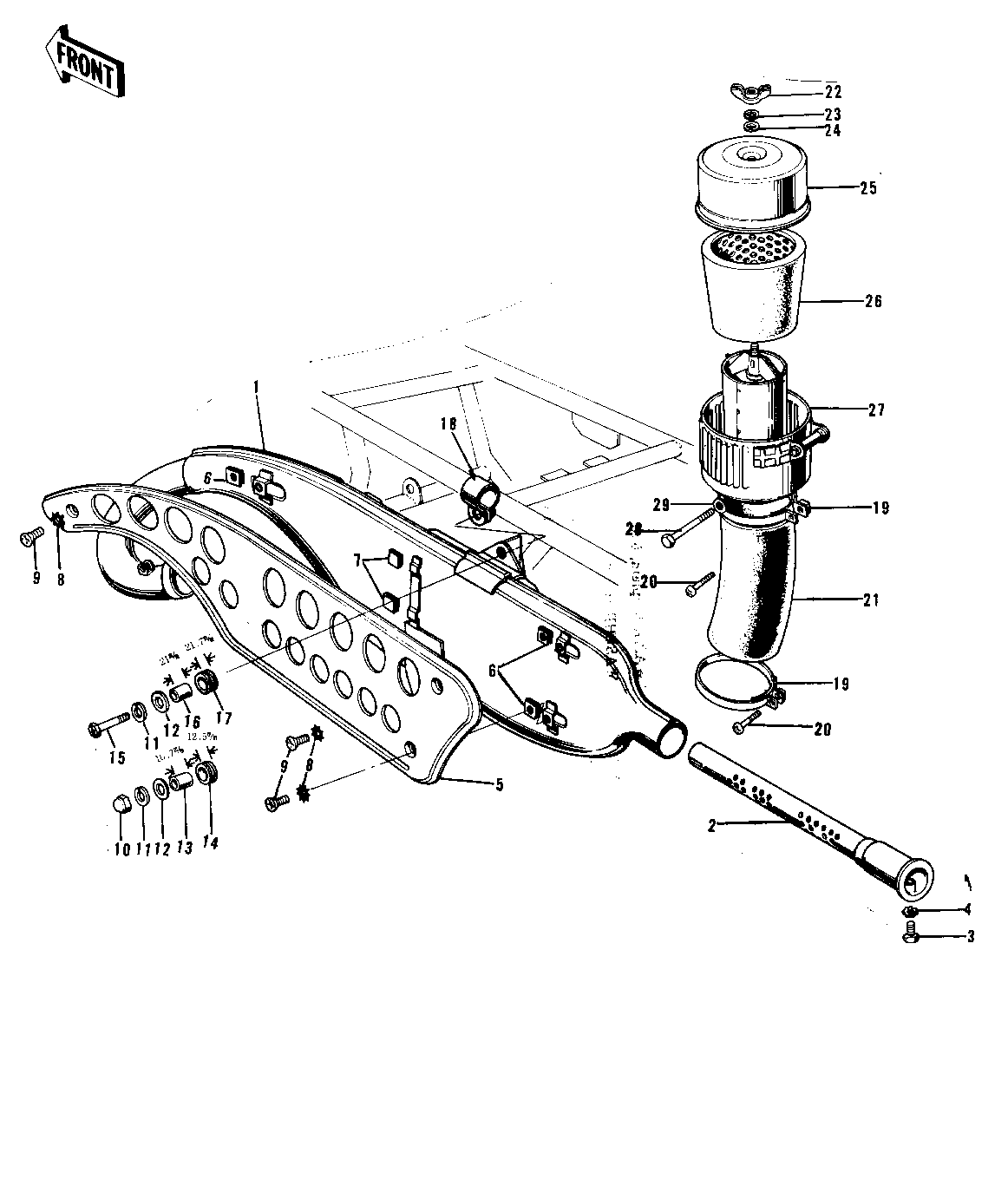

1972 F9 - AIR CLEANER/MUFFLER ('72-'73 F9/F9-A 350

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MUFFLER ASSY,F.BLACK 1~4 18001-107-21 1
BAFFLE TUBE 2 18033-052 1
BOLT-UPSET,6X12 3 112G0612 1
BOLT-UPSET,6X12 3 112G0612 AL
WASHER LOCK 6MM 4 463H0600 1
COVER-MUFFLER 5 18064-006 1
INSULATOR-HEAT 6 18065-009 3
INSULATOR 7 18065-007 2
WASHER LOCK 6MM 8 463H0600 3
SCREW PAN HEAD 6X12 9 220E0612 3
NUT FUEL TANK FRONT 10 92020-007 1
WASHER SPRING 8MM 11 461F0800 2
WASHER FUEL TANK FIT 12 92022-035 2
COLLAR 13 92027-102 1
DAMPER RUBBER-MUFFLE 14 18063-005 1
SCREW-PAN HEAD,8X40 15 220B0840 1
COLLAR 16 92027-146 1
DAMPER RUBBER 17 18063-007 1
BRACKET,UPPER MUFFLE 18 32069-039 1
BRACKET,UPPER MUFFLE 18 32069-039 1 F9A
CLAMP,AIR CLEANER 19 92037-129 2
SCREW PAN HEAD 6X30 20 220B0630 2
CONNECTOR 21 11026-002 1
AIR CLEANER ASSY 22~27 11010-049 1
AIR CLEANER ASY,BLAC 22~27 11010-063-21 1 F9A
NUT-WING,6MM 22 92015-030 1
WASHER SPRING 6MM 23 461F0600 1
WASHER PLAIN 6MM 24 411B0600 1
CAP,AIR CLEANER,BLAC 25 11012-023-21 1
CAP,AIR CLEANER,BLAC 25 11012-023-21 1 F9A
ELEMENT,AIR,CLNR 26 11013-031 1
BOLT,EXCLUSIVE 28 92001-1456 1
WASHER SPRING 6MM 29 461F0600 1
