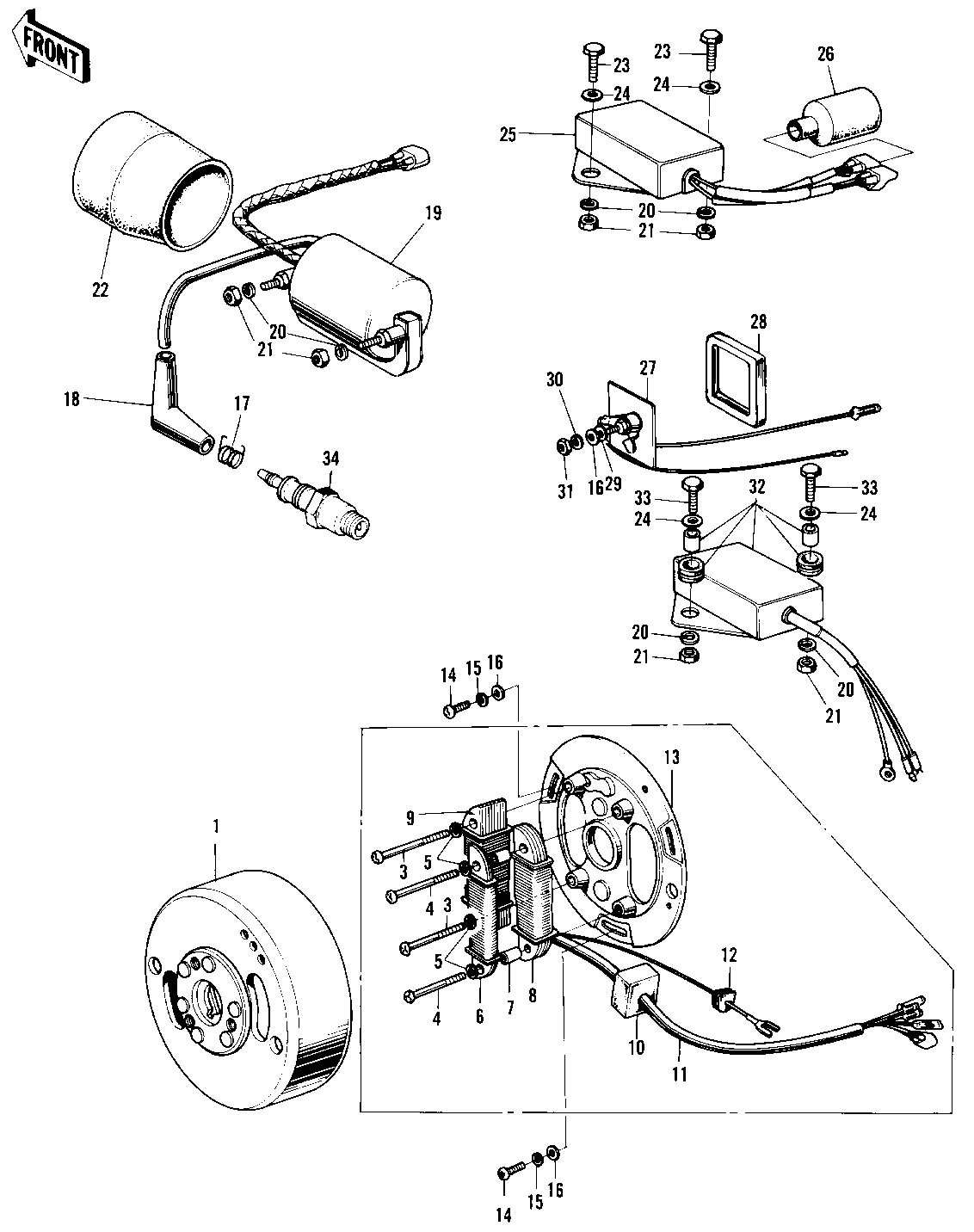

1972 F9 - IGNITION/GENERATOR/REGULATOR ('72-'73 F9

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLYWEEL 1 21050-015 1
FLYWEEL 1 21050-015 1
STATOR 2 21003-011 1
.SCREW PAN HEAD 4X30 3 220E0430 2
SCREW PAN HEAD 4X30 3 220E0430 2
.SCREW-PAN HEAD,4X35 4 220E0435A 2
SCREW-PAN HEAD,4X35 4 220E0435A 2
.WASHER SPRING 4MM 5 461F0400 4
.COIL-PULSER 6 21157-001 1
.COLLAR 7 21033-002 2
.COIL-PRIMARY 8 21049-011 1
.COIL-LIGHTING 9 21047-012 1
.GROMMET ENG RUBBER A 10 92071-014 1
.WIRING HARNESS-MAGNE 11 21029-020 1
.GROMMET WIRING HARN 12 21017-005 1
.BASE-MAGNETO 13 21048-013 1
SCREW PAN HEAD 5X20 14 220B0520 3
WASHER SPRING 5MM 15 461F0500 3
WASHER PLAIN 5MM 16 410B0500 4
SPRING-SPARK PLUG CA 17 92101-001 1
CAP SPARK PLUG 18 21130-009 1
COIL-IGNITION 19 21121-039 1
WASHER SPRING 6MM 20 461F0600 6
NUT 6MM 21 311B0600 6
RUBBER CAP-COIL 22 92073-016 1
BOLT-UPSET 6X14 23 112B0614 2
WASHER PLAIN 6MM 24 410B0600 4
IGNITION UNIT 25 21119-013 1 F9
IGNITION UNIT 25 21119-013 1 F9-A
COVER WIRING HARNESS 26 26009-003 1
RECTIFIER 27 21061-5001 1
MAT-RECTIFIER 28 32103-020 (1 OPTIONAL
WASHER-PLAIN 29 92022-163 1
WASHER SPRING 5MM 30 461F0500 1
NUT,5MM 31 311B0500 1
REGULATOR-VOLTAGE 32 21066-010 1
BOLT-UPSET 33 112G0618 2
SPK PLG B10H15 34 B10H15 1 F9, 1.5 MM GAP
SPARK PLUG B10H-1.0 34 92070-039 1 F9-A, 1.0 MM GAP
